Led Transparent Display Pixel Pitch 4-8mm With High Permeability And Optical Grade Materials For Improved Visibility
Product Details:
| Place of Origin: | China |
| Brand Name: | VEGOO |
| Certification: | CE ROHC FCC |
| Model Number: | VG-P4-8 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square meter |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box or Flight case |
| Delivery Time: | 15-25days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50sqm per month |
|
Detail Information |
|||
| Pixel: | 31250dots/m2 | Reresh Frequency: | 3840HZ |
|---|---|---|---|
| Screen Dimension: | Customized Size | Ingress Pritection: | IP30 |
| Module Size: | 1000*240mm | Module Resolution: | 250*30 |
| Thickness: | 3mm | Pixel Composition: | 1R1G11B |
| Permeability: | ≥85% | Weight: | ≤7kg/m2 |
| Highlight: | 8mm Led Transparent Display,High Permeability Led Transparent Display |
||
Product Description
The unit cabinet adopts a boardless design to improve product transparency. Ultra-light and ultra-thin,weight 6kg/m2, thickness at the thinnest part of the screen 3mm.The power signal wiring inside the screen adopts wireless PCB hard connection,lwhich is clean and beautiful. High permeability can reach over 60%~86%. Transparent PC uses optical grade materials. Aluminum profile control cabinet molding and precision machining. Support point-by-point cutting to adapt to special-shaped installation environments. Quickly stick to steel glass for easy installation without steel structure. Use anti-UV, anti-ultraviolet and flame-retardant materials.
Transparent LED Display Overview
Transparent LED display are innovative technology that allows for the projection of images and videos while maintaining visibility through the screen. The feature makes them ideal for various applications, including retail, advertising, and interior design.
Features:
- Transparency:The display can be see-through, enabling the backgroud to remain visible.
- High Brightness: These displays offer vibrant colors and high brightness levels, making them effective even in well-lit environments.
- Lightweight and Thin: Their design is often lightweight and slim, allowing for flexible installation options.
- Versatile Applications: Suitable for storefronts, exhibition spaces, and even home decor.
Benefits:
- Enhanced Visibility: Attracts attention without obstructing views.
- Interactive Capability: Can be integrated with touch technology for interactive experiences.
- Energy Efficient: Consumes less power compared to traditional displays.
Manufacturing Process:
- Sputtering:Pretreatment & tie coat layer is the chief process for improving the adhesion, between PET film & plating layer.
- Plating:It's the electroplating process which is important to control the Cu plating thickness
Soft material for any creative installation, like curve, round shapes.
Can cut the size of film for your projects on site, no need custom made size.
The system controlled by PC or APP through WIFI or 4G, and also can be cluster control.
Parameters:
| Item | Parameters |
| pixel pitch | 4mm*8mm(x*y) |
| pixel | 31250 dots/m2 |
| LED specification | SMD 2121 |
| Pixel composition | 1R1G1B |
| Module size | 1000mm*240mm |
| Pixel Resolution | 250*125dots/m2 |
| Module resolution | 250*30 |
| Permeability | ≥85% |
| Cabinet wiring mode | Internal wiring(clean back) |
| Weight | ≤7kg/m2 |
| White balance brightness | ≥3000cd/m2 |
| Refresh frequency | ≥3840Hz |
| Average Power consumption | About 260w/m2(depending on the video source) |
| Grayscale level | 16bit |
| Brightness control level | Grade 0-255 |
| Color temperature | 3200k-8500k(adjustable) |
| Frame change frequency | ≥60Hz |
| Viewing angle | H-H 140degrees, V-V 140degrees |
| Input signal | DVI,VGA,Composite video |
| Control screen mode | Or synchronous box or asynchronous box |
| Protection grade | IP30 |
| Power supply requirements | AC220V±10%, 50-60Hz |
| Working temperature | -20~50℃ |
| Theoretical service life | 100000 hours |

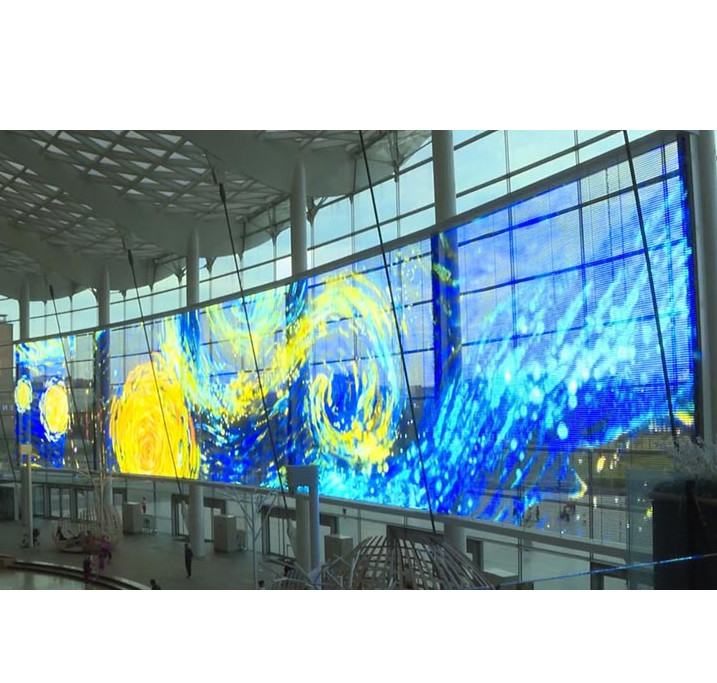

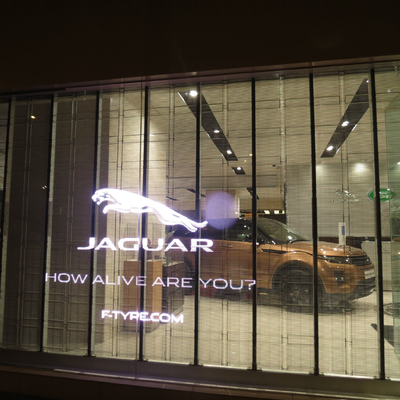

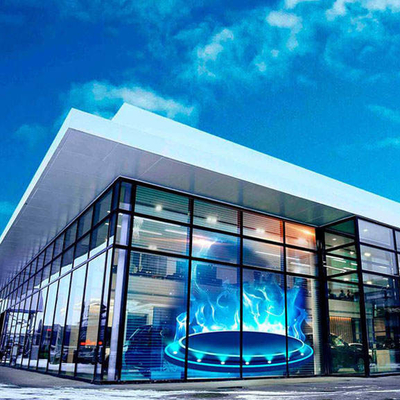

Detail imags
