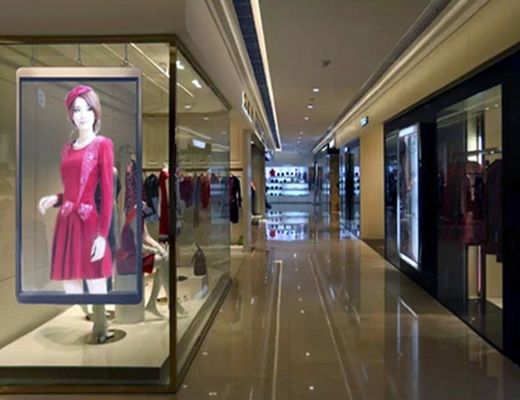

P20 DIP 346 Outdoor Transparent LED Screen Transparent Glass Led Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-SD P20 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Sq.m |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 20-25 working days |
| Supply Ability: | 3000 Sq.m/ Month |
|
Detail Information |
|||
| Product Name: | Outdoor Full Color LED Display | Pixel Pitch: | 20mm |
|---|---|---|---|
| Density: | 2,500 Pixel/m2 | Moduel Size(L×W)mm: | 960mm×17mm |
| Cabinet Resolution: | 48×16 | Driving Method: | 1 Scan |
| Driving IC: | MBI5124 | Brightness: | 5500CD/㎡ |
| Highlight: | transparent led display,transparent led panel |
||
Product Description
High Transparent LED Display , Outdoor Transparent Glass LED Display
Description:
1. Good visualization:
Glass based design allows the light to pass through the glass without any influence to the building structure around..
2. Frameless structure
Leeman glass display can directly stick to the inside part of the glass wall by special designed glue, and after 10 seconds curing, it will connect with the glass wall firmly. Thus decrease the installation difficulty and cost greatly.
3. Easy and convenient maintenance.
It can be maintained from inside, safer and more convenient.
4. Saving lighting costs of the whole building.
Besides good advertising effect, Leeman LED glass display also helps lighting the glass wall, thus makes the glass wall more attractive and saving a lot lighting cost.
5. Wide use range.
Wherever the glass wall is, Leeman glass LED display can be installed. Such as bank, supermarket, theater, business street, hotel, public civic buildings, and landmark buildings, etc.
P20 DIP 346 Outdoor Full color LED Display Specification
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 20mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/DIP 346 | ||||||||||
| 3 | Density | 2,500 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 960mm×17mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 960mm×320mm×90mm | ||||||||||
| 6 | Module Resolution | 48×0.85 | ||||||||||
| 7 | Cabinet Resolution | 48×16 | ||||||||||
| 8 | Driving Method | 1 Scan | ||||||||||
| 9 | Driving IC | MBI5124 | ||||||||||
| 10 | Brightness | 5500CD/㎡ | ||||||||||
| 11 | Contrast | 1000:1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power: ＜600W | ||||||||||
| 14 | Average power: ＜450W | |||||||||||
| 15 | Cabinet Weight | 18kg | ||||||||||
| 16 | Color Temperature | 9500K—11500K | ||||||||||
| 17 | Horizontal Viewing Angle | 140º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 10 or 14bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >1920Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 110-220V | ||||||||||
| 36 | Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Products exchanged or returned :
we supply our products strictly according to the contract list , if the quantity or specification doesn't meet our contract list, the buyer can give objections within 3 days after received the products , we’ll exchanged after company confirmed.
Casual damage situation:
We can provide corresponding fittings without extra fee when improper operation or unexpected artificial damaged arise .
Over Guarantee time :
You only have to pay maintenance cost such as labor costs , spare parts costs and round-trip costs !
