High Brightness Advertising Transparent Led Panel 20mm For Glass Wall
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-SD P20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Sq.m |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 20-25 working days |
| Supply Ability: | 3000 Sq.m/ Month |
|
Detail Information |
|||
| Product Name: | Outdoor Full Color LED Display | Pixel Pitch: | 20mm |
|---|---|---|---|
| Density: | 2,500 Pixel/m2 | Cabinet Size(L×W×H)mm: | 960mm×320mm×90mm |
| Module Resolution: | 48×0.85 | Driving Method: | 1 Scan |
| Driving IC: | MBI5124 | Brightness: | 5500CD/㎡ |
| High Light: | transparent led display,transparent led video wall |
||
Product Description

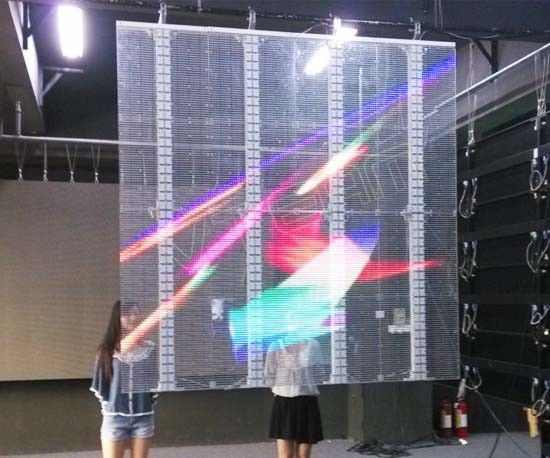

High Brightness Transparent LED Display for Glass Wall , Advertising LED Transparent Screen
Description:
1. Unparalleled Transparency
Greater than >80% transparency at highest resolution, noticeable when viewing from five meters or more.
2. Easy Setup
Plug and play. Super quick and easy for installation.
3. Light Weight
Only weighted 18kg/pcs (including hanging strings and power supplies). It weights half of most LED displays.
4. High Brightness & Energy Efficiency
With 5500 nits (cd/m2) in brightness, the display is visible under direct sun light and can be used 24/7.
5. Easy to Maintain and Update
Long life expectancy (100,000 hrs) as replacement LED strips are swapped in easily without having to replace the entire panel.
Application Areas :
·--- Outdoor advertising, advertising in big companies
·--- Sports halls, fields, playgrounds.

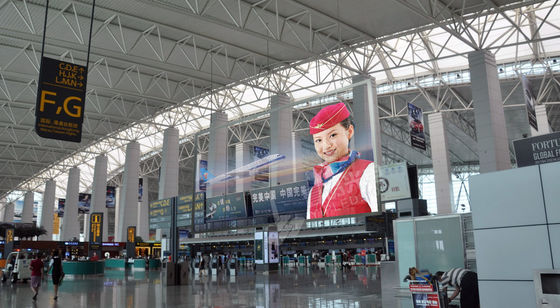

·--- Airports, bus stations and railway passenger terminals.
·--- Facades of shopping malls, department stores, banks and car dealerships.
·--- Architecture and social projects, information systems in cities.
·--- Show-business, concerts, festivals, motor shows and other public events.
P20 DIP 346 Outdoor Full color LED Display Specification
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 20mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/DIP 346 | ||||||||||
| 3 | Density | 2,500 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 960mm×17mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 960mm×320mm×90mm | ||||||||||
| 6 | Module Resolution | 48×0.85 | ||||||||||
| 7 | Cabinet Resolution | 48×16 | ||||||||||
| 8 | Driving Method | 1 Scan | ||||||||||
| 9 | Driving IC | MBI5124 | ||||||||||
| 10 | Brightness | 5500CD/㎡ | ||||||||||
| 11 | Contrast | 1000:1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power: ＜600W | ||||||||||
| 14 | Average power: ＜450W | |||||||||||
| 15 | Cabinet Weight | 18kg | ||||||||||
| 16 | Color Temperature | 9500K—11500K | ||||||||||
| 17 | Horizontal Viewing Angle | 140º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 10 or 14bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >1920Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 110-220V | ||||||||||
| 36 | Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
