Slim 20mm Led Transparent Digital Display Outdoor Full Color 2500 Pixel/M2
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-SD P20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Sq.m |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 20-25 working days |
| Supply Ability: | 3000 Sq.m/ Month |
|
Detail Information |
|||
| Product Name: | Outdoor Full Color LED Display | Pixel Pitch: | 20mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/DIP 346 | Density: | 2,500 Pixel/m2 |
| Moduel Size(L×W)mm: | 960mm×17mm | Cabinet Size(L×W×H)mm: | 960mm×320mm×90mm |
| Module Resolution: | 48×0.85 | Brightness: | 5500CD/㎡ |
| High Light: | transparent led display,transparent led video wall |
||
Product Description

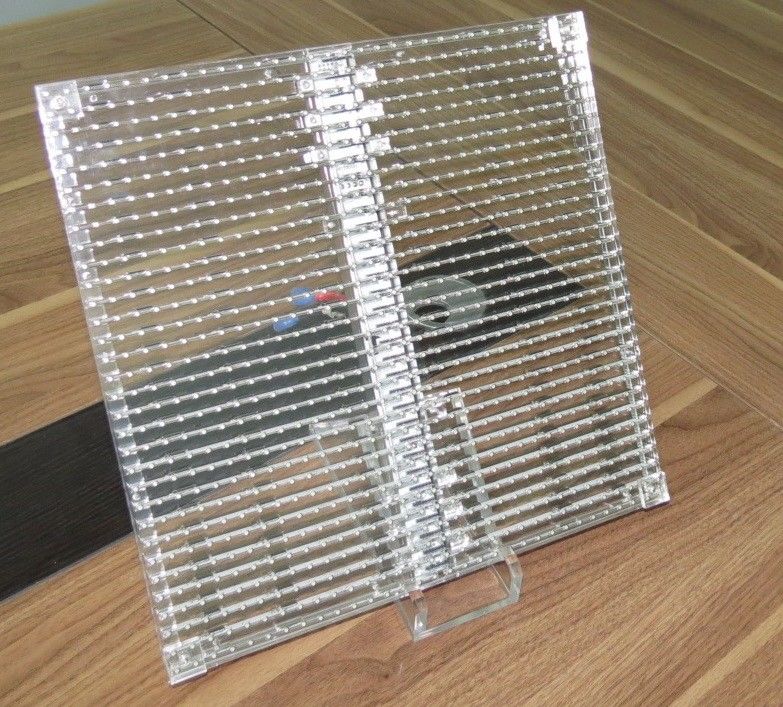

1R1G1B/DIP 346 Transparent LED Screen 20mm
Description:
1. SMD 3-in-1 technology are used for outdoor LED display.
2. Wide view angle: 140 in horizontal and 140 in vertical
3. Special design and advanced SMT technology improves the heat dissipation
4. With high refresh rate controller, guarantee that no scan line when taking photos.
5. Slim and lightweight design.
6. Easy for assembling and connecting with fast lock and the connector added.
7. High color uniformity and clear image can bring you a vivid audio visual effect.
Remote Control
Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
P20 DIP 346 Outdoor Full color LED Display Specification
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 20mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/DIP 346 | ||||||||||
| 3 | Density | 2,500 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 960mm×17mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 960mm×320mm×90mm | ||||||||||
| 6 | Module Resolution | 48×0.85 | ||||||||||
| 7 | Cabinet Resolution | 48×16 | ||||||||||
| 8 | Driving Method | 1 Scan | ||||||||||
| 9 | Driving IC | MBI5124 | ||||||||||
| 10 | Brightness | 5500CD/㎡ | ||||||||||
| 11 | Contrast | 1000:1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power: ＜600W | ||||||||||
| 14 | Average power: ＜450W | |||||||||||
| 15 | Cabinet Weight | 18kg | ||||||||||
| 16 | Color Temperature | 9500K—11500K | ||||||||||
| 17 | Horizontal Viewing Angle | 140º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 10 or 14bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >1920Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 110-220V | ||||||||||
| 36 | Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Customer Service
1) Guarantee Time: Within one year after delivery form factory
2) Maintenance Coverage : LED modules,Power supply ,Control system and other accessories ( This warranty exclude accessories purchasing form other factory )
3) Maintenance Mode :
By returned maintenance , through express or by other way
4) Response time for maintenance :
1. Return mode: after receiving the returned products, we will repaired them within 24 hours and send them back to the user;
2. Telephone or internet mode: we will contact user within 2 hours after getting informations and give solution within 8 hours;
3. On-site mode: ( only for user inside china ) after receiving maintenance request , we will respond within 48 hours to user in Guangdong province; 72 hours to user outside Guangdong province, In the case of some special conditions , problems could be solved on the basis of friendly negotiation between two parties.
