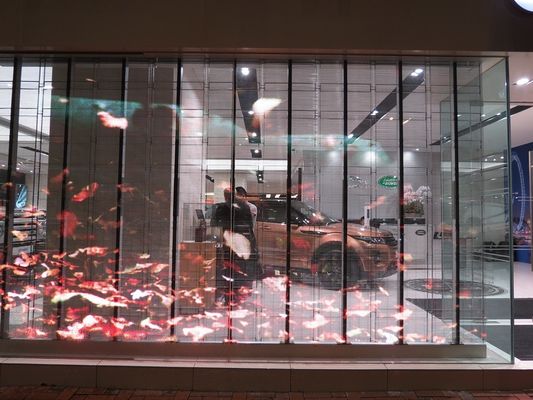

Waterproof 20mm Outdoor Transparent Led Display Full Color 5500CD/㎡
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-SD P20 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Sq.m |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 20-25 working days |
| Supply Ability: | 3000 Sq.m/ Month |
|
Detail Information |
|||
| Product Name: | Outdoor Full Color LED Display | Pixel Pitch: | 20mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/DIP 346 | Density: | 2,500 Pixel/m2 |
| Cabinet Size(L×W×H)mm: | 960mm×320mm×90mm | Module Resolution: | 48×0.85 |
| Cabinet Resolution: | 48×16 | Driving Method: | 1 Scan |
| Highlight: | transparent led display,transparent led panel |
||
Product Description
P20 DIP 346 Outdoor Full color LED Display
Description:
1. Outdoor advertising LED display
2. High brightness,stable,durable
3. Waterproof,IP65
4. CE,RoHS,FCC certificate
P20 DIP 346 Outdoor Full color LED Display Specification
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 20mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/DIP 346 | ||||||||||
| 3 | Density | 2,500 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 960mm×17mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 960mm×320mm×90mm | ||||||||||
| 6 | Module Resolution | 48×0.85 | ||||||||||
| 7 | Cabinet Resolution | 48×16 | ||||||||||
| 8 | Driving Method | 1 Scan | ||||||||||
| 9 | Driving IC | MBI5124 | ||||||||||
| 10 | Brightness | 5500CD/㎡ | ||||||||||
| 11 | Contrast | 1000:1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power: ＜600W | ||||||||||
| 14 | Average power: ＜450W | |||||||||||
| 15 | Cabinet Weight | 18kg | ||||||||||
| 16 | Color Temperature | 9500K—11500K | ||||||||||
| 17 | Horizontal Viewing Angle | 140º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 10 or 14bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >1920Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 110-220V | ||||||||||
| 36 | Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Perfect service after sale :
1) Guidance service: We can guide on line if customers have questions about the installation and usage.
For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, our engineer can go to customer’s country for on-site guidance.
2) Warranty period: 3 years after shipment.
3) Maintenance principles: response in time, solve problems as soon as possible and ensure the use.
4) Maintenance terms: In the Maintenance period, free of all maintenance charges. Under normal use and storage, our company will be responsible for the equipments. If there is any failure in product quality, our company will maintain and change the components for free. After Maintenance period, only charge the material costs fees free of manual work fees.
