Customizable Transparent LED Screen For Glass Curtain Wall With High Transparency
Product Details:
| Place of Origin: | China |
| Brand Name: | VEGOO |
| Certification: | CE ROHC FCC |
| Model Number: | VG-P3.91-8scan |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square meter/1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box or Flight case |
| Delivery Time: | 15-25days |
| Payment Terms: | T/T |
| Supply Ability: | 8000sqm per month |
|
Detail Information |
|||
| Product: | Transparent LED Screen | Pixel Composition: | 1R1G1B |
|---|---|---|---|
| Material: | Aluminum | Best Viewing Distance: | 5~100m |
| Transparent Rate: | 65% | Thickness: | 80mm |
| Lamp: | 1921 Kinglight | Ave Power Consumption: | 100~200W/㎡ |
| Scan Mode: | 1/16scan | ||
| Highlight: | Customizable Transparent LED Screen,Curtain Wall Transparent LED Screen,High Transparency Transparent LED Screen |
||
Product Description
Features
- High Transparency
With high transparency rate of 65%-80%. ensure the lighting requirements and angle between floors, glass windows, facade lighting structure
- Slim and Light
The power line inside the cabinets, the screen thickness is only 50mm, and the appearance is simple and elegant.Structure is only 10kg/m, cabinet is only 13kg/m
- Wide Application
As long as there is a glass curtain wall, this product can be applied. Such as banks, shopping malls, theaters, commercial streets, chain stores, hotels, municipal public buildings, landmarks, etc.
- Customized Design
According to the site environment to do any shape, plane and arc, regular and irregular shape can be produced, can meet the personalized needs of different places
- Save Energy
No need traditional air conditioning cooling system, saving more than 35% energy than ordinary LED display.
Main Specifications
| NO. | Parameter | Ph3.9-Normal brightness | Ph3.9-Normal brightness | Ph3.9-Hight brightness | Ph3.9-Hight brightness |
|---|---|---|---|---|---|
| 1 | Pixel pitch(mm) | 3.91-7.81mm | 3.91-7.81mm | 3.91-7.81mm | 3.91-7.81mm |
| 2 | Cabinet size (mm*mm) | 1000*500/1000*1000 | 1000*500/1000*1000 | 1000*500/1000*1000 | 1000*500/1000*1000 |
| 3 | Density(dots/m) | 32768 | 32768 | 32768 | 32768 |
| 4 | Packaging style | 1r1g1b SMD direct-lit nationstar lamp2020 | 1r1g1b SMD direct-lit nationstar lamp1921 | 1r1g1b SMD direct-lit nationstar lamp1921 | 1r1g1b SMD direct-lit nationstar lamp1921 |
| 5 | Best view distance(m) | 5~100m | 5~100m | 5~100m | 5~100m |
| 6 | Transparent rate(%) | 65% | 65% | 65% | 65% |
| 7 | View ankle(°) |
Horizontal 120° Vertical 120° |
Horizontal 120° Vertical 120° |
Horizontal 120° Vertical 120° |
Horizontal 120° Vertical 120° |
| 8 | Environment temperature(℃) |
Storage -40℃~+80℃ Working -20℃~+50℃ |
Storage -40℃~+80℃ Working -20℃~+50℃ |
Storage -40℃~+80℃ Working -20℃~+50℃ |
Storage -40℃~+80℃ Working -20℃~+50℃ |
| 9 | Thickness(mm) | 80 | 80 | 80 | 80 |
| 10 | Avg.power consumption(W/m) | 100~150 | 150~200 | 100~150 | 150~200 |
| 11 | Max.power consumption(W/m) | ≤400 | ≤600 | ≤800 | ≤800 |
| 12 | Driving method(scan) | 1/16 | 1/16 | 1/8 | 1/8 |
| 13 | Refresh rate(Hz) | 3840 | 3840 | 3840 | 3840 |
| 14 | Brightness(cd/m) | ≥800 | ≥1500 | ≥4000 | ≥5000 |
| 15 | Installation | pendant mount or stack mount | pendant mount or stack mount | pendant mount or stack mount | pendant mount or stack mount |

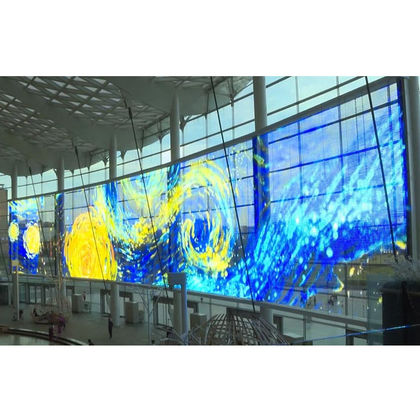

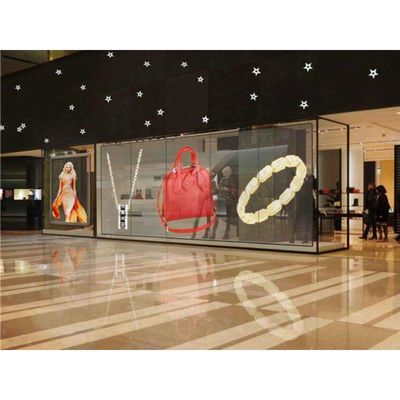

Detail Image
Product Packaging
