Transparent Led Screen 1000*500 1000*1000 Customize Size Indoor Series Glass Shopping Mall Fixed Or Hoisting
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/CCC |
| Model Number: | VG-IN-TRANS-P3.91 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1㎡ |
|---|---|
| Price: | $537/㎡ |
| Packaging Details: | Flight case(Additional cost)/Wooden case(Free) |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T in advance(xx% deposit, negotiation) |
| Supply Ability: | ≥100㎡ in stock |
|
Detail Information |
|||
| Pixels: | 3.91mm | Cabinet Weight: | 15kg/sqm |
|---|---|---|---|
| Pixel Density: | 32768 Dots/sqm | Tube Chip Color: | Full Color,1R1G1B |
| Application: | Shopping Mall/glass Curtain Wall | Installation Method: | Hanging Installation/fixed Installtion |
| Highlight: | 1000*1000 Transparent led screen,1000*500 Transparent led screen,Indoor Transparent led screen |
||
Product Description
Details(Advantages, Usage scenarios)
1.Many suppliers only have 15Kg/㎡ products, our products only need about 13Kg/㎡, saving customers shipping costs, thus saving costs.
2.There are high and low brightness, some manufacturers only recommend 4500cd brightness, we have 2500cd and 4500cd brightness to choose from.
3.This is a regular series, the price is lower than the high configuration, although the installation time is longer, but the transparency is high and the price is low.

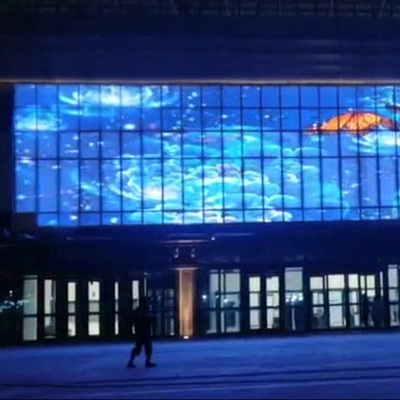

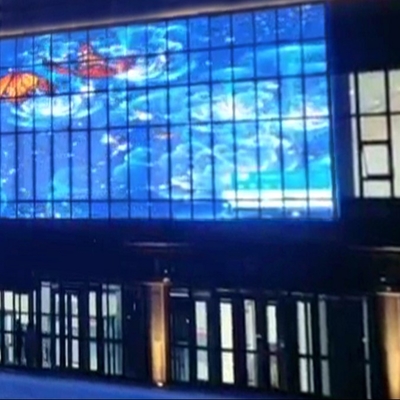

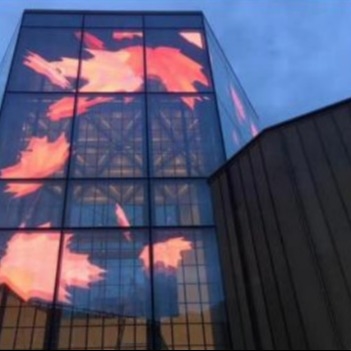

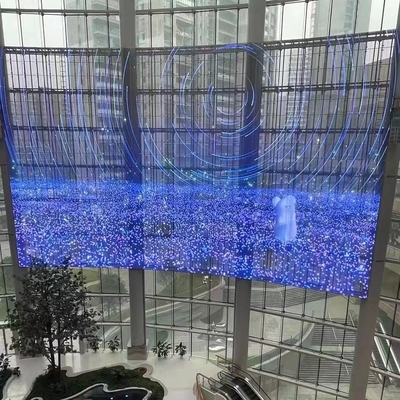

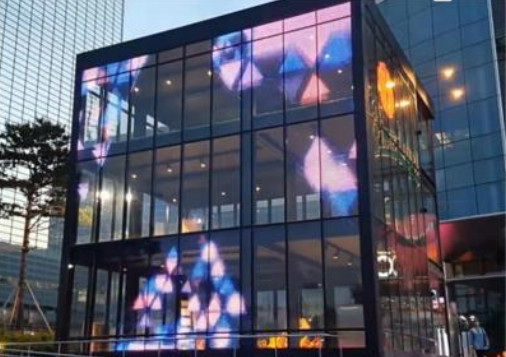

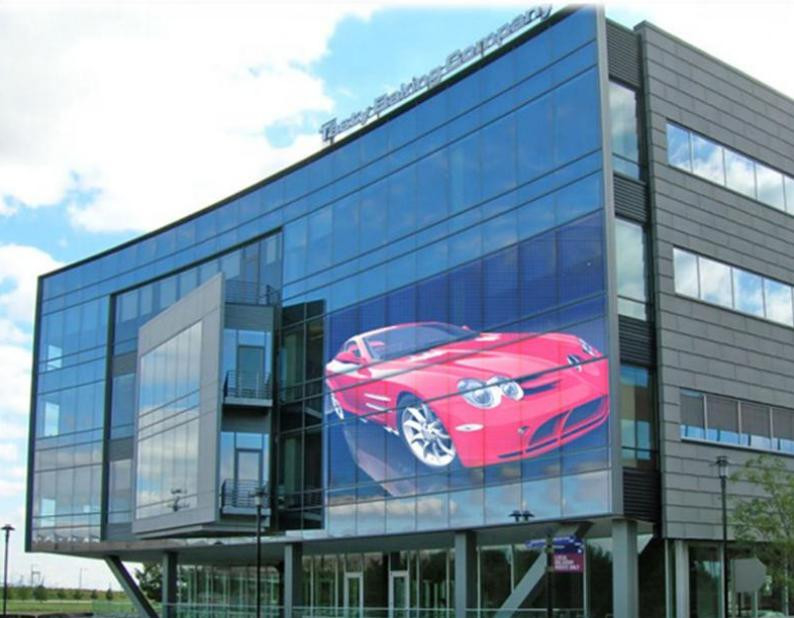

The transparent screen has better effect than the conventional one, and it is more attractive as an advertisement on indoor shop glass or office building glass.
Parameters
| NO. | Parameter | PH3.9-Nomal brightness | PH3.9-High brightness | ||
| 1 | Pixel pitch (mm) | 3.91-7.81mm | 3.91-7.81mm | 3.91-7.81mm | 3.91-7.81mm |
| 2 | Cabinet size(mm*mm) | 1000*500/1000*1000 | 1000*500/1000*1000 | 1000*500/1000*1000 | 1000*500/1000*1000 |
| 3 | Density(dots/m) | 32768 | 32768 | 32768 | 32768 |
| 4 | Packaging style | 1 R1 G1B SMD direct-lit nationstar lamp 2020 |
I R1 G1 B SMD direct-lit Anplight lamp 1921 |
1R1G1B SMD direct-lit Anplight lamp 1921 |
1 R1G1 B SMD direct-lit nationstar lamp 1921 |
| 5 | Best view distance(m) | 5~100m | 5~100m | 5~100m | 5~100m |
| 6 | Transparent rate(%) | 65% | 65% | 65% | 65% |
| 7 | View ankle(.) | Horizontal 120°～120°, Vertical 120°～120° |
Horizontal 120°～120° Vertical 120°～120° |
Horizontal 120°～120° Vertical 120°～120° |
Horizontal 120°～120° Vertical 120°～120° |
| 8 | Environment temperature (℃) |
storage-40℃~+80℃; working-20℃~+50℃ |
storage-40℃~+80℃; working-20℃~+50℃ |
storage-40℃~+80℃; working-20℃~+50℃ |
storage-40℃~+80℃; working-20℃~+50℃ |
| 9 | Thickness (mm) | 80 | 80 | 80 | 80 |
| 10 | Avg.power consumption (W/m) |
100~150 | 150~200 | 100~150 | 150~200 |
| 11 | Max.power consumption (W/m) |
≤400 | ≤600 | ≤800 | ≤800 |
| 12 | Driving method(scan) | 1/16 | 1/16 | 1/8 | 1/8 |
| 13 | Refresh rate(Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 |
| 14 | Brightness(cd/m | ≥800 | ≥1500 | ≥4000 | ≥5500 |
| 15 | Installation | pendant mount or stack mount |
pendant mount or stack mount |
pendant mount or stack mount |
|
Want to Know more details about this product
