Rental Transparent LED Screen Video Wall Full Color P3.9-P15.625mm For Window Advertising
Product Details:
| Place of Origin: | shenzhen |
| Brand Name: | Vegoo |
| Certification: | CE |
| Model Number: | Vegoo-Transparent |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case |
| Delivery Time: | 10-15days |
| Payment Terms: | T/T |
| Supply Ability: | 8000 pcs/month |
|
Detail Information |
|||
| Operation Power: | AC110~ 240V, 50/60Hz | Operating Temperature: | 0°C~40°C(work) , - 20°C~60°C(store) |
|---|---|---|---|
| Operating Humidity: | 35%~85% (work) , 10%~90% (store) | Operating Life: | ≥100,000hours |
| High Light: | transparent led video wall,transparent led panel |
||
Product Description

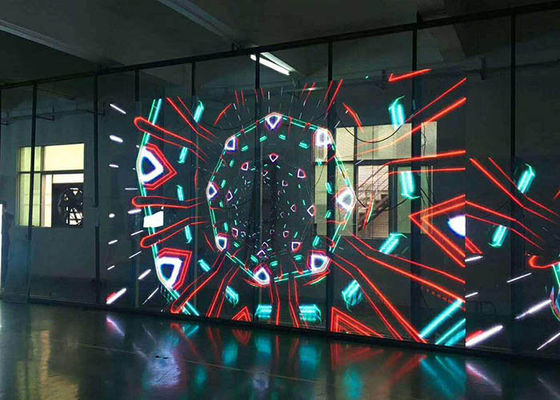

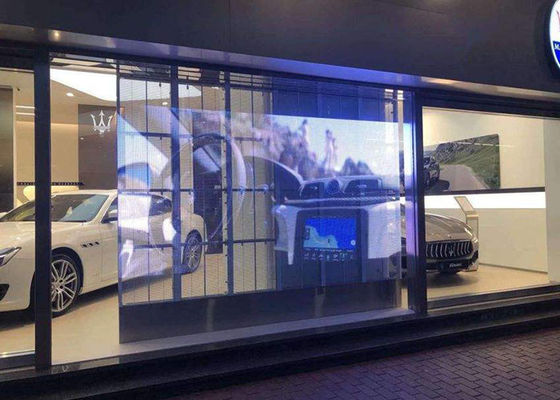

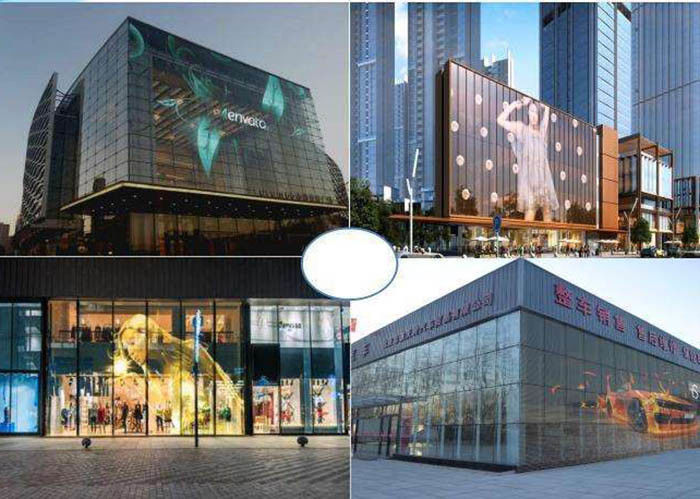

High Brightness Rental Transparent LED Video Wall Full Color P3.9-P15.625mm For Window Advertising Video Wall
Rental Transparency LED Display Feature:
- High Transparency:Real high transparent led display,up to 70% transparency.
- vertical see-through effect,extraordinary experience.
- Easy installation: Its installation can be finished in short time
- Made with high quality Nation star led lamps,ensure good display vision and good stability
- Lightweight, only with 15 kgs for one square meter
| G系列参数 Panel Specification | ||||||||
| Part Number | G-3.9 | G-5.2 | G-5.2C | G10 | G10C | G12 | G12C | G16C |
| Pixel Pitch (H/V) | 3.9/7.8mm | 5.2/10.4mm | 5.2/10.4mm | 10.416mm | 10.416mm | 12.5mm | 12.5mm | 15.625mm |
| LED Configuration | SMD2121 | SMD 3528 | SMD 3030 | SMD 3528 | SMD 3535 | SMD 3528 | SMD 3535 | SMD 3535 |
| Pixel Density | 32768dot/m2 | 18432dot/m2 | 18432dot/m2 | 9216dot/m2 | 9216dot/m2 | 6400dot/m2 | 6400dot/m2 | 4096dot/m2 |
| Transparency | 48% | 50% | 50% | 50% | 50% | 60% | 60% | 70% |
| Module Size | 250X62.48mm | 250X83.36mm | 250X83.36mm | 250X41.66mm | 250X41.66mm | 250X50mm | 250X50mm | 250X62.5mm |
| Module Resolution | 64X8dot | 48X8dot | 48X8dot | 24X4dot | 24X4dot | 20X4dot | 20X4dot | 16X4dot |
| Cabinet Size | 500X500X93mm 500X1000X93mm |
500X500X93mm 500X1000X93mm |
500X500X93mm 500X1000X93mm |
500X500X93mm 500X1000X93mm |
500X500X93mm 500X1000X93mm |
500X500X93mm 500X1000X93mm |
500X500X93mm 500X1000X93mm |
500X500X93mm 500X1000X93mm |
| Cabinet Resolution | 128X64dot 128X128dot |
96X48dot 96X96dot |
96X48dot 96X96dot |
48X48dot 48X96dot |
48X48dot 48X96dot |
40X40dot 40X80dot |
40X40dot 40X80dot |
32X32dot 32X64dot |
| Cabinet Weight | 5kg /10kg/Panel | 5kg /10kg/Panel | 5kg /10kg/Panel | 5kg /10kg/Panel | 5kg /10kg/Panel | 5kg /10kg/Panel | 5kg /10kg/Panel | 5kg /10kg/Panel |
| IP Rating ( front/back) | IP30 | IP30 | IP30 | IP30 | IP30 | IP30 | IP30 | IP30 |
| Brightness | 800~1000CD/m2 | 900~1200CD/m2 | 3000~3200CD/m2 | 900~1200CD/m2 | 3000~3200CD/m2 | 800~1000CD/m2 | 3000~3200CD/m2 | 3500~4200CD/m2 |
| Viewing Angle (H/V) | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
| Viewing Distance | 4m | 10m | 10m | 10m | 10m | 12m | 12m | 16m |
| Gray Scale | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit |
| Max.Power Consumption | 400W/m² | 400W/m² | 600W/m² | 400W/m² | 600W/m² | 400W/m² | 600W/m² | 600W/m² |
| Ave.Power Consumption | 150W/m² | 150W/m² | 240W/m² | 150W/m² | 240W/m² | 150W/m² | 240W/m² | 240W/m² |
| Refresh Rate | 1920Hz | 1920Hz | 1920Hz | 960Hz | 960Hz | 960Hz | 960Hz | 1920Hz |
| Environment | INDOOR | INDOOR | INDOOR | INDOOR | INDOOR | INDOOR | INDOOR | INDOOR |
| Control Mode | Synchronous display with control PC by DVI | |||||||
| Support Input | Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI | |||||||
| Operation Power | AC110~ 240V, 50/60Hz | |||||||
| Operating Temperature | 0°C~40°C(work) , - 20°C~60°C(store) | |||||||
| Operating Humidity | 35%~85% (work) , 10%~90% (store) | |||||||
| Operating Life | ≥100,000hours | |||||||
| Certificate |
CE |
|||||||
