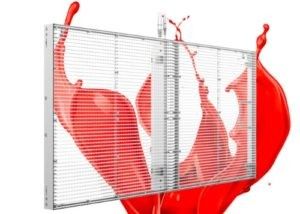

Full Color P20 DIP 346 Transparent LED Screen 10 /14bit Signal Processing
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-SD P20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Sq.m |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 20-25 working days |
| Supply Ability: | 3000 Sq.m/ Month |
|
Detail Information |
|||
| Product Name: | Outdoor Full Color LED Display | Pixel Pitch: | 20mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/DIP 346 | Density: | 2,500 Pixel/m2 |
| Moduel Size(L×W)mm: | 960mm×17mm | Cabinet Size(L×W×H)mm: | 960mm×320mm×90mm |
| Module Resolution: | 48×0.85 | Driving Method: | 1 Scan |
| Driving IC: | MBI5124 | Brightness: | 5500CD/㎡ |
| High Light: | transparent led display,transparent led panel |
||
Product Description

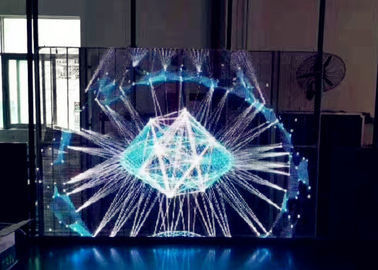

P20 DIP 346 Outdoor Full color Transparent LED Screen 2,500 pixel/m2
Description:
* 2 years warranty;
* Proled provides prompt response to your ANY requirements within 24 hours;
* A Patient supports team to teach you product knowledge, guide you for installation, train your engineers how to configure software and solve Any issued;
* Local supports service is available.
P20 DIP 346 Outdoor Full color LED Display Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 20mm | ||||||||||
| Pixel Configuration | 1R1G1B/DIP 346 | ||||||||||
| Density | 2,500 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 960mm×17mm | ||||||||||
| Cabinet Size(L×W×H)mm | 960mm×320mm×90mm | ||||||||||
| Module Resolution | 48×0.85 | ||||||||||
| Cabinet Resolution | 48×16 | ||||||||||
| Driving Method | 1 Scan | ||||||||||
| Driving IC | MBI5124 | ||||||||||
| Brightness | 5500CD/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power: ＜600W | ||||||||||
| Average power: ＜450W | |||||||||||
| Cabinet Weight | 18kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-220V | ||||||||||
Service and Guarantees
Services Before-sale:Set a special telephone line to resolve the confusion from clients and supply free technology services by telephone.Consider the demands of clients carefully , study the situation of the installation condition , Team up the related staff and workers promptly , give clients design program details to help them choose the products which they wanted as soon as possible
Service In - sales :Try the best to meet the reasonable demands by clients Provisional changed .Keep close touch with the clients during the period if installation .Cooperate friendly with the clients, satisfy the clients with the best quality of led display .
Service After-sale:Normal products have one year guarantee, and whole life maintenance, free charges . we just charge materials cost only if products out off guarantee.You can down load and upgrade the related operating software of Led display freely from our company website , so as to resolve the problems when you use our led display .Check the quality of appliance , do maintenance job and ask good suggestions form clients on a regular time schedule .
