Large Building Transparent Led Curtain Screen 20mm With 140º Viewing Angle

China Large Building Transparent Led Curtain Screen 20mm With 140º Viewing Angle supplier
Large Building Transparent Led Curtain Screen 20mm With 140º Viewing Angle supplier Large Building Transparent Led Curtain Screen 20mm With 140º Viewing Angle supplier

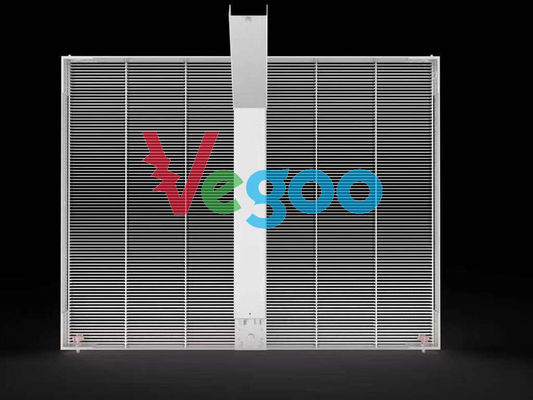

Large Image :  Large Building Transparent Led Curtain Screen 20mm With 140º Viewing Angle

Product Details:

Place of Origin: China
Brand Name: Vegoo
Certification: CE/ROHS/FCC/
Model Number: VG-SD P20

Payment & Shipping Terms:

Minimum Order Quantity: 1 Sq.m
Packaging Details: Plywood case / Flight case / Carton box
Delivery Time: 20-25 working days
Supply Ability: 3000 Sq.m/ Month
Detailed Product Description
Product Name: Outdoor Full Color LED Display Pixel Pitch: 20mm
Density: 2,500 Pixel/m2 Moduel Size(L×W)mm: 960mm×17mm
Cabinet Size(L×W×H)mm: 960mm×320mm×90mm Brightness: 5500CD/㎡
High Light:

transparent led display


transparent led panel


20mm Transparent LED Screen Large building glass curtain wall




  • Super bright and transparent:At the highest pixel, transparency can reach 75%-95%,hardly see the screen within 5m
  • Modular design:With the standard size of module, you can do any size of screen
  • Easy to assemble and test Lighter and easy to transport:
  • Only 13kg/sqm with Structure and power supply, half weight of traditional screen
  • Higher brightness and lower consumption
  • Convenient for maintenance and update
  • Longer lifespan, only need to change LED strap, no need to change module
  • Application: shopping mall, stores,
waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)






Trade display windows and pubic building space

Glass curtain wall gain a good space visual effect indoor, such as in chain store, shopping mall,exhibition center, airport, metro station, automobile 4S shop, jewelry store, bank etc. which brings strong visual impact and sense of hierarchy for LED transparent display.


Large building glass curtain wall

With high transparent effect and showing in lively HD and holographic effect as well as intelligent interactive function, the application of large building glass curtain wall achieved in mixing harmonious and innovative display effect without changing any building structure.




P20 DIP 346 Outdoor Full color LED Display Specification



Product Name Specification
Pixel Pitch 20mm
Pixel Configuration 1R1G1B/DIP 346
Density 2,500 pixel/m2
Moduel Size(L×W)mm 960mm×17mm
Cabinet Size(L×W×H)mm 960mm×320mm×90mm
Module Resolution 48×0.85
Cabinet Resolution 48×16
Driving Method 1 Scan
Driving IC MBI5124
Brightness 5500CD/㎡
Contrast 1000:1
Brightness Adjustment Auto and Manual
Power Consumption Max Power: <600W
Average power: <450W
Cabinet Weight 18kg
Color Temperature 9500K—11500K
Horizontal Viewing Angle 140º
Vertical Viewing Angle 140º
Signal Processing 10 or 14bit
Grey Processing 1024×1024×1024
Control Distance cable100m,Multimode500m,Single mode 2km
Frame Frequency 65 Hz
Refresh Rate >1920Hz
Control Mode Synchronous/Asynchronous
The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
Users can choose the recommended curve or adjust it based on actual situation
MTBF >50000 hours
Life Span 100,000 Hours
Operating Temperature Working : -20 - 65 ℃
Storage : -40 - 85 ℃
Environment Temperature -30℃ to 60℃; humidity Rh10% to 95%
Self-checking Technique Self-inspection, communication test, power test, temperature monitoring (Be customized)
Operating System Platform WindowsNT,Windows2000,WindowsXP,Windows7
Power Supply AC 110-220V
