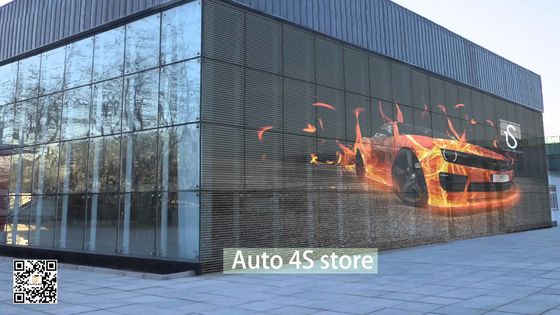

Durable Waterproof IP65 Led Transparent Screen 20mm CE / RoHS
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-SD P20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Sq.m |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 20-25 working days |
| Supply Ability: | 3000 Sq.m/ Month |
|
Detail Information |
|||
| Product Name: | Outdoor Full Color LED Display | Pixel Pitch: | 20mm |
|---|---|---|---|
| Cabinet Resolution: | 48×16 | Driving Method: | 1 Scan |
| Driving IC: | MBI5124 | Brightness: | 5500CD/㎡ |
| High Light: | transparent led panel,transparent led video wall |
||
Product Description
High brightness Waterproof,IP65 Transparent LED Screen
Description:
1. Outdoor advertising LED display
2. High brightness,stable,durable
3. Waterproof,IP65
4. CE,RoHS,FCC certificate
Remote Control
Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
P20 DIP 346 Outdoor Full color LED Display Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 20mm | ||||||||||
| Pixel Configuration | 1R1G1B/DIP 346 | ||||||||||
| Density | 2,500 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 960mm×17mm | ||||||||||
| Cabinet Size(L×W×H)mm | 960mm×320mm×90mm | ||||||||||
| Module Resolution | 48×0.85 | ||||||||||
| Cabinet Resolution | 48×16 | ||||||||||
| Driving Method | 1 Scan | ||||||||||
| Driving IC | MBI5124 | ||||||||||
| Brightness | 5500CD/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power: ＜600W | ||||||||||
| Average power: ＜450W | |||||||||||
| Cabinet Weight | 18kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-220V | ||||||||||
| Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Upgrade Service :
Unschedule,we will upgrade our system of products without extra formal; we’ll do our best to help users with upgrading ; the following conditions are excluded by this warranty :
1. Without approved documents;
2. Series code on products having been torn or changed ;
3. Damage caused by lighting strike or electrical problems;
4. Risks caused by irresistible incidents includes all kinds of natural disasters, fire, wars, policy changes, and some other human error accidents.
5. Users or third party refit or repaired by themselves without VEGOO’s permission ;
6. Water intrusion or corrosion caused by improper keeping or operating ;
7. Over period of free maintenance .
Perfect service after sale :
1) Guidance service: We can guide on line if customers have questions about the installation and usage.
For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, our engineer can go to customer’s country for on-site guidance.
2) Warranty period: 2 years after shipment.
3) Maintenance principles: response in time, solve problems as soon as possible and ensure the use.
4) Maintenance terms: In the Maintenance period, free of all maintenance charges. Under normal use and storage, our company will be responsible for the equipments. If there is any failure in product quality, our company will maintain and change the components for free. After Maintenance period, only charge the material costs fees free of manual work fees.
