P1.875 Small Pixel Pitch Outdoor Led Screen 480*540mm Seamless Display COB Flip Chip For Meeting Room
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE,FCC,RoHS |
| Model Number: | VG-P1.875 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1sqm |
|---|---|
| Price: | 1115-1250USD/sqm |
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T |
| Supply Ability: | 8000 Sqm/month |
|
Detail Information |
|||
| Application: | Outdoor | Weight Per Panel: | 9.5kg/panel |
|---|---|---|---|
| Pixel Pitch: | 1.5mm | Panel Size: | 480*540mm |
| Module Size: | 240*270mm | Cabinet Material: | Aluminum |
| Brightness: | >3500nits | Refresh Rate: | 1920-3840HZ |
| Highlight: | Meeting Room Outdoor Led Screen,Seamless Display Outdoor Led Screen,P1.875 Small Pixel Pitch Led Screen |
||
Product Description
P1.5 Small Pixel Pitch HD Led Screen 480*540mm Aluminum Die-Casting Cabinet COB Flip Chip For Conference Room
Applications
- Broadcast Studios: Ideal for newsrooms and studios where high-resolution displays are crucial for clear visuals.
- Control Rooms: Used in security and monitoring centers for real-time data display.
- Retail Environments: Effective for digital signage and advertising in high-end retail spaces.
- Corporate Settings: Suitable for presentations and video conferencing, providing crisp visuals for meetings.
Key Features

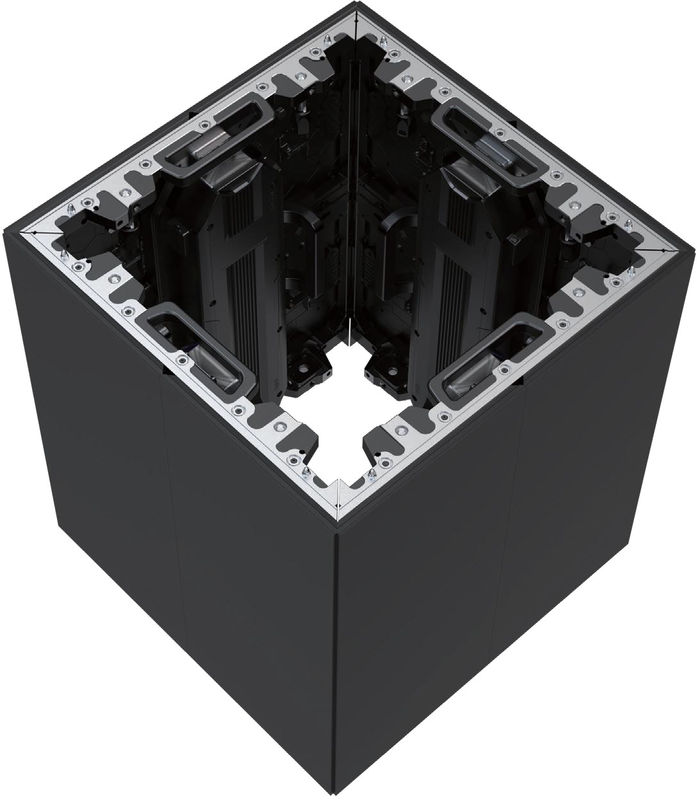

90 degree corner sharp,45 degree cut module & cabinet to be smallest corner ga
The thinnest outdoor fine pitch LED with 90° connection
Die-cast module for high precision alignment
-
-
Product Name 240*270mm Module Physical Pitch P1.25 P1.5 P1.875 P2.5 Pixel Density (㎡) 640000pixels/m² 444,444pixels/m² 284,444pixels/m² 160,000pixels/m² Pixel Density (Panel) 165888pixels/panel 115,200pixels/panel 73,728pixels/panel 41,472pixels/panel LED Module Dimensions (mm) 240× 270 240× 270 240×270 240×270 Scan method 1/36 1/30 1/24 1/18 Panel Dimensions (W × H × D) (mm) 480 × 540 ×70 480 × 540 ×70 480 × 540 ×70 480 × 540 ×70 No. of Modules Per Panel (W × H) 2×2 2×2 2 × 2 2 ×2 Physical Resolution of Module (W × H) 192 x 216 160 × 180 128 x 144 96 x 108 Physical Resolution of Panel (W × H) 384 x 432 320 × 360 256 × 288 192 × 216 Weight Per Panel 9.5kg/panel 9.5kg/panel 9.5kg/panel 9.5kg/panel Weight/㎡ 36.6kg/m² 36.6kg/m² 36.6kg/m² 36.6kg/m² Cabinet Material Aluminum Aluminum Aluminum Aluminum Servicing Front and Rear Front and Rear Front and Rear Front and Rear IP Rating Front IP 65, Back IP54 Front IP 65, Back IP54 Front IP 65, Back IP54 Front IP 65, Back IP54 Brightness (after Cal.) >3500nits >4000nits >4000nits >3500nits Refresh Rate 1920-3840HZ 1920-3840HZ 1920-3840HZ 1920-3840HZ Horizontal Viewing Angle 160° 160° 160° 160° Vertical Viewing Angle 160° 160° 160° 160° Color temperature / / / / - Default 8000K±500K 8000K±500K 8000K±500K 8000K±500K -Adjustable range 3500~12,000K 3500~12,000K 3500~12,000K 3500~12,000K Processing 14bit 14bit 14 bit 14 bit Colours 281 trillion 281 trillion 281 trillion 281 trillion Contrast Ratio 4,000 : 1 4,000 : 1 4,000 : 1 4,000 : 1 Average Power Consumption 216w/m² 216w/m² 216 w/m² 216 w/m² Max Power Consumption 720 w/m² 720 w/m² 720 w/m² 720 w/m² Operating Temp/Humidity -20 ~ 50 °C/ 10% ~ 90% -20 ~ 50 °C/ 10% ~ 90% -20 ~ 50 °C/ 10% ~ 90% -20 ~ 50 °C/ 10% ~ 90% Storage Temp/Humidity -30 ~ 60 °C/ 10% ~ 95% -30 ~ 60 °C/ 10% ~ 95% -30 ~ 60 °C/ 10% ~ 95% -30 ~ 60 °C/ 10% ~ 95% Expected LED Lifetime (Max) 100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs
-
