Our Product Introduction

for more products please visit us on hdled-display.com

Product Description

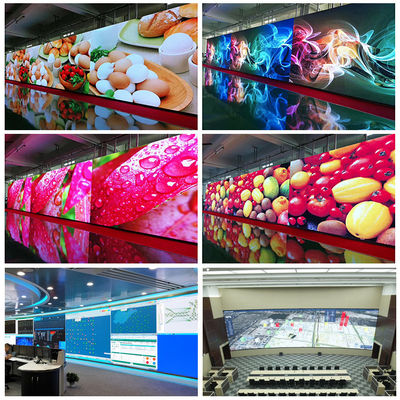

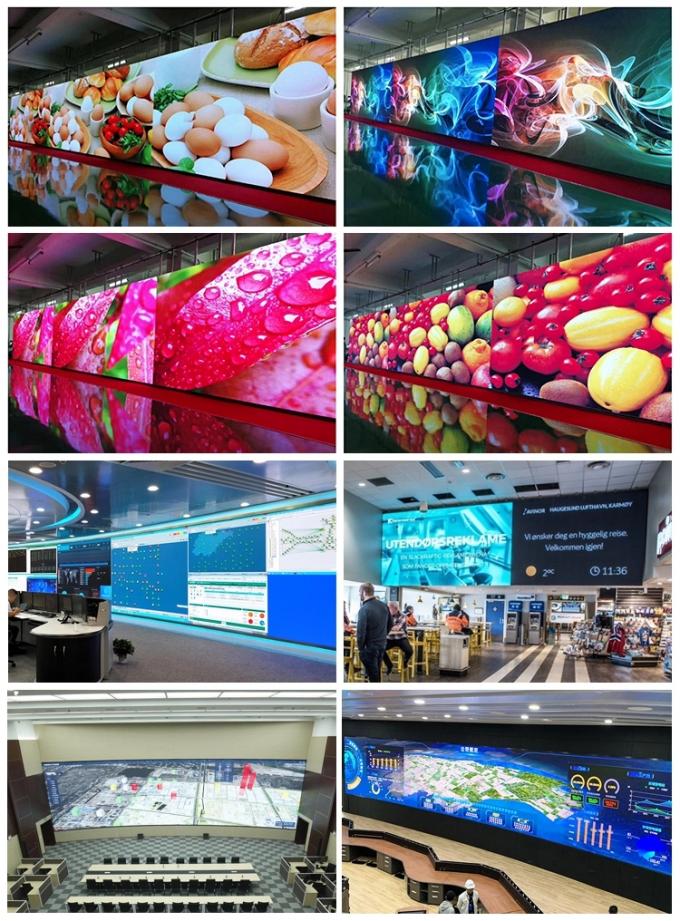

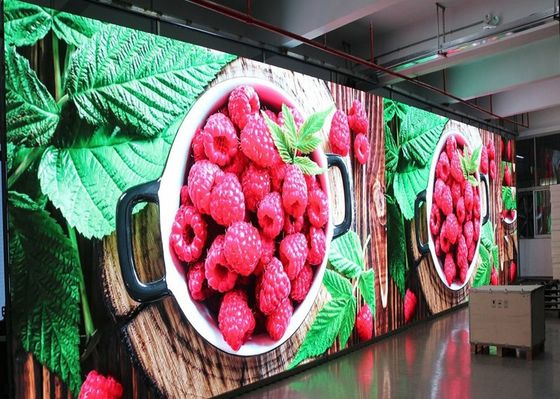

Indoor high-definition LED display p2 led module conference led display stage rental large screen

Product Feature:

1, Seamless splicing 2, High brightness intelligent adjustable 3, High gray level better color performance 4, High contrast faster response speed high refresh frequency 5, Color reduction and naturalization

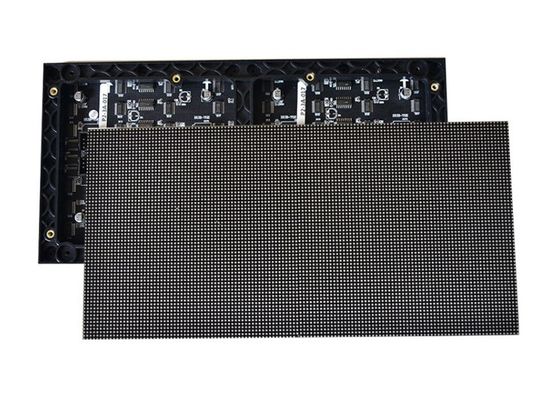

Unit Module Specifications
Item	P1.25	P1.56	P1.667	P1.875	P1.923	P2
Pixel Pitch	1.25 mm	1.56 mm	1.667 mm	1.875 mm	1.923 mm	2 mm
Pixel Configuration	3in1 (1R1PG1B)
Module Size(MM)	200*150	200*150	200*150	240*120	200*150	256*128
Module Resolution(Dots)	160*120	128*96	120*90	128*64	104*78	128*64
Module Weight(Kg)	0.3	0.3	0.3	0.31	0.3	0.3
Package LED Mode	1010	1010	1010	1515	1515	1515
Max Power(Watt)	22	21	20.5	19	17.5	17.5
Pixel Density(Dots/SQM)	691'200	409'600	360'000	284'444	270'400	250'000
Driving Method	Constant Current Driving
Scan Method(Scan)	1/30	1/32	1/30	1/32	1/26	1/32
Interface Way	HUB 75
Brightness(CD/SQM)	≥ 1200

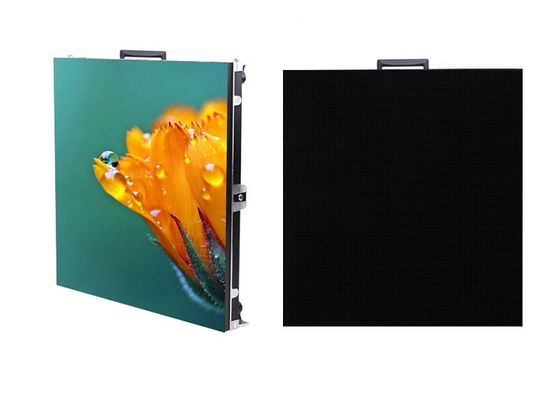

Unit Cabinet Specifications
Cabinet Size(MM)	400*300	400*300	400*300	480*480	400*300	512*512
Cabinet Composing(PCS)	4	4	4	8	4	8
Power Supply Mode(Per Cabinet)	5V60A	5V60A	5V60A	5V60A	5V60A	5V60A
Cabinet Resolution(Dots)	320*240	256*192	240*180	256*256	208*156	256*256
Optimal Viewing Distance(M)	1-100	1.5-150	1.6-160	1.8-180	1.92-200	1.92-200
Optimal Viewing Angle	Horizontal angle: 160 degree; Vertical angle: 120 degree
Environment Temperature	Storage: -40 degree ~ +85 degree; Work: -20 degree ~ +60 degree
Relative Humidity	10% ~ 95%
Power Supply Specifications
Operating Voltage	AC:100V~120V AC:220~240V
Average Power(W/SQM)	150-400	150-380	150-360	150-350	150-320	150-330
Max Power Consumption(W/SQM)	≤ 1150	≤ 1050	≤ 1000	≤ 950	≤ 920	≤ 900
Current	≤ 20mA (single LED)
Control System Specifications
Computer	Pentium4 or above P4 or above
Operate System	Win7-11/2000/NT/XP
Control Mode	Synchronization with PC
Main Technical Parameter Specifications
Driving Device	Constant Current Driving
Refresh Rate	≥ 1900-3840Hz
Gray/Color	RGB each 256 grade, can display 16.7color
Lifespan	≥ 100000hours

FAQ

1. How can i place an order? Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with WhatsApp/email /phone, in case of any delays.

2. What kind of display do we provide? We have indoor/outdoor/mobile LED /rental LED display /LED stage/ LED module/Advertising LED display for you choose.

3. What about the lead time for an order? Always: 10-17 days, as your order quantity, sometimes we have stock, can delivery within 7 days

4. What about the warranty? We have Three years quality guaranteed, spare parts such as led module, receiving card, control card, power supply are damaged not cause of artificial damaged, then it’s free maintenance and ship back new ones for replacement.

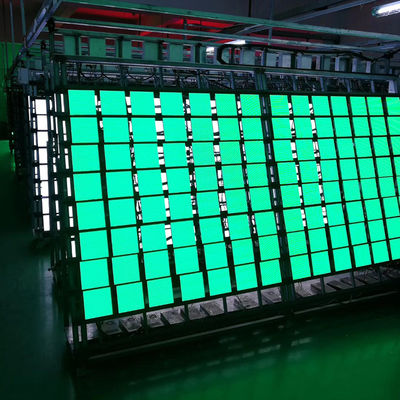

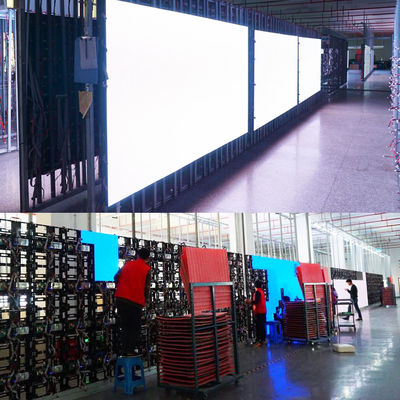

5.How about the quality? Our led products must be testing of at least 72hours before shipping, from purchase raw materials to ship ,Each step has strict quality control systems to ensure led display with good quality
