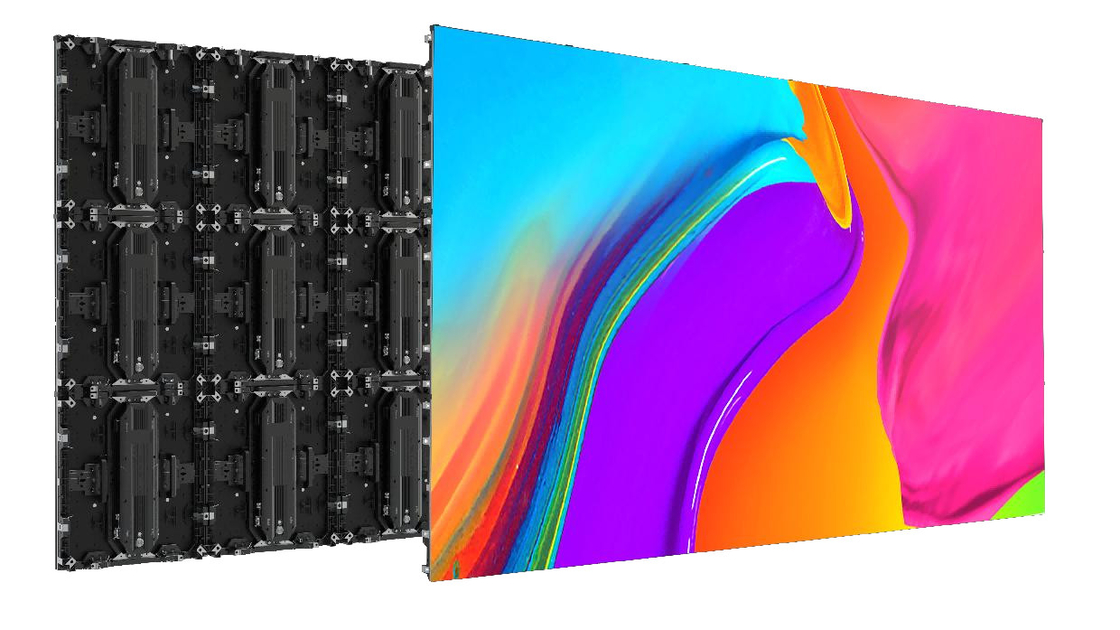

P1.25 Small Pixel Pitch HD Led Display 480*540mm Aluminum Die-Casting Cabinet High-Resolution For Hotels
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE,FCC,RoHS |
| Model Number: | VG-P1.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1sqm |
|---|---|
| Price: | 1120-1350USD/sqm |
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T |
| Supply Ability: | 8000 Sqm/month |
|
Detail Information |
|||
| Application: | Outdoor | Color: | Full Colour |
|---|---|---|---|
| Pixel Pitch: | 1.25mm | Panel Size: | 480*540mm |
| Module Size: | 240*270mm | Cabinet Material: | Aluminum |
| Servicing: | Front And Rear | Brightness: | >3500nits |
Product Description
P1.25 Small Pixel Pitch HD Led Video Screen 480*540mm High-Resolution For Hotels
Product Feature:
The P1.25 small pixel pitch HD LED display utilizing Flip Chip common cathode technology offers several advanced features and benefits. Here are the key highlights:
Key Features
-
High Pixel Density
- 1.25mm Pixel Pitch: Provides extremely high resolution, making it ideal for close-up viewing in environments like control rooms, broadcast studios, and high-end retail spaces.
-
Flip Chip Technology
- Improved Thermal Management: The Flip Chip design allows for better heat dissipation, reducing the risk of overheating and enhancing the lifespan of the LEDs.
- Enhanced Performance: This technology contributes to higher brightness and better color uniformity.
-
Common Cathode Configuration
- Energy Efficiency: The common cathode design reduces power consumption significantly compared to traditional configurations, leading to lower operational costs.
- Longer Lifespan: Improved thermal performance translates to a longer operational life for the display.
-
High Brightness
- Optimal Visibility: Typically offers brightness levels exceeding 1,000 nits, ensuring clear visibility even in well-lit indoor environments.
Product Name 240*270mm Module Physical Pitch P1.25 P1.5 P1.875 P2.5 Pixel Density (㎡) 640000pixels/m² 444,444pixels/m² 284,444pixels/m² 160,000pixels/m² Pixel Density (Panel) 165888pixels/panel 115,200pixels/panel 73,728pixels/panel 41,472pixels/panel LED Module Dimensions (mm) 240× 270 240× 270 240×270 240×270 Scan method 1/36 1/30 1/24 1/18 Panel Dimensions (W × H × D) (mm) 480 × 540 ×70 480 × 540 ×70 480 × 540 ×70 480 × 540 ×70 No. of Modules Per Panel (W × H) 2×2 2×2 2 × 2 2 ×2 Physical Resolution of Module (W × H) 192 x 216 160 × 180 128 x 144 96 x 108 Physical Resolution of Panel (W × H) 384 x 432 320 × 360 256 × 288 192 × 216 Weight Per Panel 9.5kg/panel 9.5kg/panel 9.5kg/panel 9.5kg/panel Weight/㎡ 36.6kg/m² 36.6kg/m² 36.6kg/m² 36.6kg/m² Cabinet Material Aluminum Aluminum Aluminum Aluminum Servicing Front and Rear Front and Rear Front and Rear Front and Rear IP Rating Front IP 65, Back IP54 Front IP 65, Back IP54 Front IP 65, Back IP54 Front IP 65, Back IP54 Brightness (after Cal.) >3500nits >4000nits >4000nits >3500nits Refresh Rate 1920-3840HZ 1920-3840HZ 1920-3840HZ 1920-3840HZ Horizontal Viewing Angle 160° 160° 160° 160° Vertical Viewing Angle 160° 160° 160° 160° Color temperature / / / / - Default 8000K±500K 8000K±500K 8000K±500K 8000K±500K -Adjustable range 3500~12,000K 3500~12,000K 3500~12,000K 3500~12,000K Processing 14bit 14bit 14 bit 14 bit Colours 281 trillion 281 trillion 281 trillion 281 trillion Contrast Ratio 4,000 : 1 4,000 : 1 4,000 : 1 4,000 : 1 Average Power Consumption 216w/m² 216w/m² 216 w/m² 216 w/m² Max Power Consumption 720 w/m² 720 w/m² 720 w/m² 720 w/m² Operating Temp/Humidity -20 ~ 50 °C/ 10% ~ 90% -20 ~ 50 °C/ 10% ~ 90% -20 ~ 50 °C/ 10% ~ 90% -20 ~ 50 °C/ 10% ~ 90% Storage Temp/Humidity -30 ~ 60 °C/ 10% ~ 95% -30 ~ 60 °C/ 10% ~ 95% -30 ~ 60 °C/ 10% ~ 95% -30 ~ 60 °C/ 10% ~ 95% Expected LED Lifetime (Max) 100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs
- Optimal Visibility: Typically offers brightness levels exceeding 1,000 nits, ensuring clear visibility even in well-lit indoor environments.
