Outdoor Rental LED Display P3.91 with ICN2038S Driver IC Lightweight and Waterproof
Product Details:
| Place of Origin: | China |
| Brand Name: | VEGOO |
| Certification: | CE ROHC FCC |
| Model Number: | VG-P3.91-16scan |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square meter |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box or Flight case |
| Delivery Time: | 15-25days |
| Payment Terms: | T/T, |
| Supply Ability: | 8000sqm per month |
|
Detail Information |
|||
| Pixel Pitch: | 3.91mm | Module Size: | 250mm*250mm |
|---|---|---|---|
| Cabinet Size: | 500mm*500mm | Driver IC: | ICN2038S |
| Encapsulation: | SMD 3IN1-1921 | Brightness: | 6000cd/m2 |
| Refresh Rate: | 3840Hz/s | Scan Mode: | 1/16 Scan |
| Maximum Power: | 800W/m2 | Type: | Rental |
| Cabient Material: | Die Casting Aluminum | Waterproof: | IP65 |
| Control Method: | Synchronization | ||
| Highlight: | Waterproof Outdoor Rental LED Display,Lightweight Outdoor Rental LED Display |
||
Product Description
Products Description:
- Modular design-hard connecting interface:Modules,power and system parts are connected through hard connecting interface,convenient to connect and use.
- Seamless assembly:High-precision die-cast aluminum cabinets with space between them not large than 0.1mm.
- Various ways of cabinet combination:One of the highlights of R-series include protability,rich transfirmation.Cabinets can be suspended in parallet,arranged horizonally in a cured angle,and mounted in stories.
- Size and lightweight:Cabinets Weighs 8kg,respectively,so that it largely saves freight fees,labor costs, and decreases duty of streel frames.
FEATURES:
1.Die-casting aluminum ,low temp-rise
2.personal designed cabinet,beautiful appearance
3.Waterproof,high-efficiency cooling
4.High precision,seamless splicing
5.No fan,mute design,noise-free
6.Low power,Eco-friendly
Our service:
1. Your inquiry related to our products or price will be replied in 2hrs
2. OEM customized products
3. 2 years warranty
4. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
5.Free technician training..
6.Top quality+Reasonable price+Responsible After Service=Successful & Win
Technical Parameters
|
Unit Module |
Item | Parameter | |
| Model Number | VG-P3.91- 16S | ||
| Module Size | 250mm*250mm | ||
| Physical Pitch | 3.91mm | ||
| Physical Density | 65536 dots/m2 | ||
| Pixel Configuration | 1R1G1B | ||
| LED Package Mode | SMD 3IN1 - 1921 | ||
| Pixel Resolution | 64dots(W)*64dots(H) | ||
| Max Power | 38W | ||
| Module Thickness | 16mm | ||
| Weight | 560g | ||
| Drive Type | Constant Drive | ||
| Scan Mode | 1/ 16scan | ||
| Port Type | HUB75 | ||
| Match Cabinet |
W500mm*H500mm W500mm*H1000 |
||
|
Display Parameters |
Dimension | 500mm*500mm |
| Thickness | 87mm | |
| Weight | 8kg | |
| Monomer Module Number | 4pcs | |
| Maintenance Connection Mode | Maintenance from the Back | |
| Pixel per Cabinet | 32768 pixels | |
| Best Viewing Angle | H:120°;V:120° | |
| Recommended Viewing | 4m-30m | |
| Driver IC | ICND2038S/2153/5124 | |
| Refresh Rate | 3840Hz | |
| Brightness of White Balance | 6000cd/㎡ | |
| Operating Temperature/Humidity | -20℃ ~ +50℃ | |
| Life Time | > 100000 hours | |
| Bad Light Rate | <0.0001 | |
| MTBF | >5000 hours | |
| Cabinet Matching Module Size | 250mmx250mm | |
| Cabinet Matching Module Model | P2.6/P2.97/P3.91/P4.81 | |
|
Power |
Input Voltage | 110-220V;AC±10% |
| Power Supply | 5V/60A*1 pcs | |
| Working Voltage | 110V-220V AC±10% | |
| Average Power Consumption | 260w/㎡ | |
| Max. Power Consumption | 800w/㎡ | |
|
Control system |
CPU | Pentium4 or Above |
| Operation System | WIN98/2000/NT/XP/WIN7 | |
| Control Method | Synchronization |

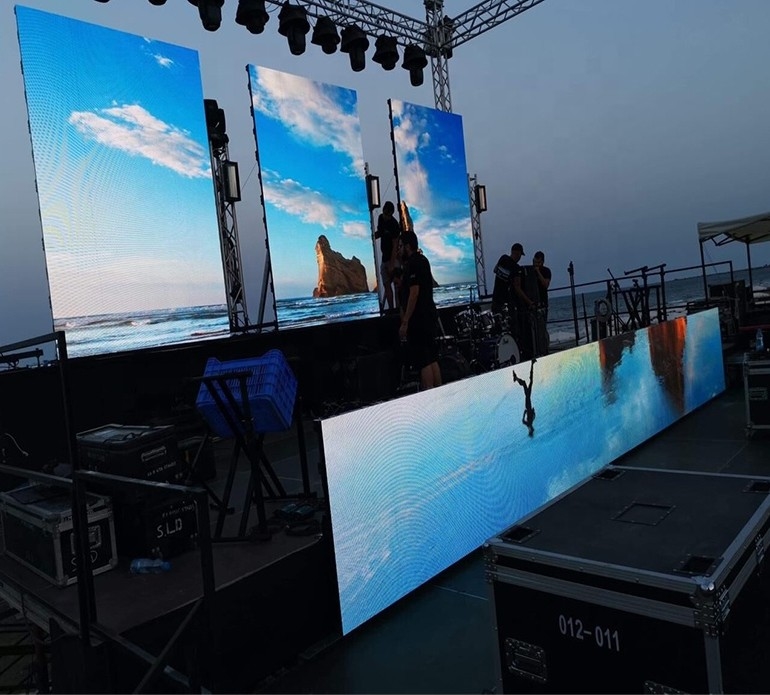

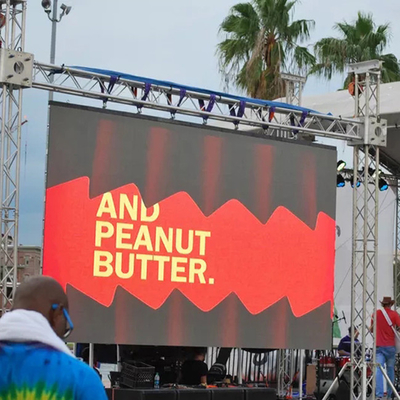

Detail Images
