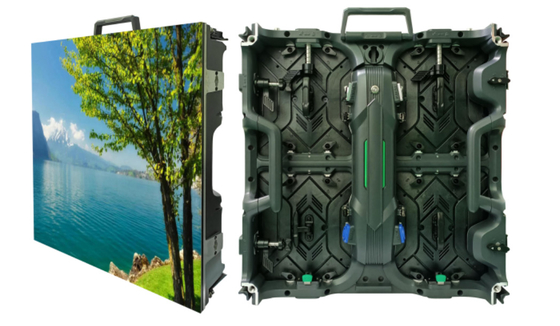

3840Hz/s Refresh Rate Indoor Rental LED Display Easy Connection Synchronization Control
Product Details:
| Place of Origin: | China |
| Brand Name: | VEGOO |
| Certification: | CE ROHC FCC |
| Model Number: | VG-P1.953-32scan |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Cabinet |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box or Flight case |
| Delivery Time: | 15-25days |
| Payment Terms: | T/T |
| Supply Ability: | 8000sqm per month |
|
Detail Information |
|||
| Package Mode: | SMD 3IN1-1515 | Refresh Rate: | 3840Hz/s |
|---|---|---|---|
| Driver IC: | ICND2163 | Brightness: | 700cd/㎡ |
| Recommended Viewing: | 2m-12m | Working Lifetime: | 100000 Hours |
| Module Thickness: | 16mm | Application: | Indoor |
| Maintenance Connection Mode: | Pre Maintenance | ||
| Highlight: | Synchronization Control Indoor Rental LED Display,Easy Connection Indoor Rental LED Display |
||
Product Description
Products Description
- Front service
Environment-friendly structures of maintenance that is designed for all-purpose installation sites.
- Modular design-hard connecting interface
Modules,power and system parts are connected through hard connecting interface,convenient to connect and use
- Seamless assembly
High-precision die-cast aluminum cabinets with space between them not large than 0.1mm.
- Various ways of cabinet combination.
One of the highlights of R-series include protability,rich transformation.Cabinets can be suspended in parallel,arranged horizonally in a curved angle,and mounted in stories.
Features:
- Die-casting aluminum,low temp-rise.
- personal designed cabinet,beautiful appearance.
- Waterproof,high-efficiency cooling.
- High precision,seamless splicing.
- No fan,mute design,noise-free
- Low power,Eco-friendl
About us:
- Strong manufacturing capacity:It has a monthly production capacity of 8000 square meters of LED modules,which can meet the production needs of large LED display.
- Large factory scale:there are nearly 10000 square meters of public production area.
- Automated production:It has 18 high-speed LED placement machines,which improves production efficiency.
- Has many years of industry experience:the company has more than 9 years of LED display manufacturing and sales experience.
Technical Parmeters
|
Unit Module |
Item | Parameter | |
| Model Number | VG-P1.953-32scan | ||
| Module Size | 250mm*250mm | ||
| Physical Pitch | 1.953mm | ||
| Physical Density | 262144 dots/m2 | ||
| Pixel Configuration | 1R1G1B | ||
| LED Package Mode | SMD 3IN1-1515 | ||
| Module Resolution | 128dots(W)*128dots(H) | ||
| Max Power Consumption | 40W | ||
| Module Thickness | 16mm | ||
| Module Weight | 560g | ||
| Drive Type | 恒流驱动 Constant Drive | ||
| Scan Mode | 1/32 扫描 1/32scan | ||
| Port Type | 自定义 Customize | ||
|
Match Cabinet Size |
W500mm*H500mm W500mm*1000mm |
||
|
Display Parameters |
Dimension | 250mm*250mm |
| Thickness | 84mm | |
| Weight | 76.5kg | |
| Monomer Module Number | 4pcs | |
| Maintenance Connection Mode | Pre Maintenance | |
| Pixel Per Cabinet | 65536 pixels | |
| Best Viewing Angle | H:140° ;V:140° | |
| Recommended Viewing | 2m-12m | |
| Driver IC | ICND2163 | |
| Refresh Rate | 3920Hz | |
| Brightness Of White Balance | 700cd/㎡ | |
| Operating Temperature/Humidity | -30℃ ~ +60℃ | |
| Life Time | >100000 hours | |
| Bad Light Rate | <0.0001 | |
| MTBF | >5000 hours | |
| Cabinet Matching Module Size | 250mmx250mm | |
| Cabinet Matching Module Model |
P1.953/P2.604/P2.976/ P3.91/P4.81 |
|
|
Power |
Input Voltage | 110-220V;AC±10% |
| Power Supply | 5V/60A*3 pcs | |
| Working Voltage | AC220V±10% | |
| Average Power Consumption | 350w/㎡ | |
| Max. Power Consumption | 800w/㎡ | |
|
Control System |
CPU | Pentium4 or Above |
| Operation System | WIN98/2000/NT/XP/WIN7 | |
| Control Method | Synchronization |

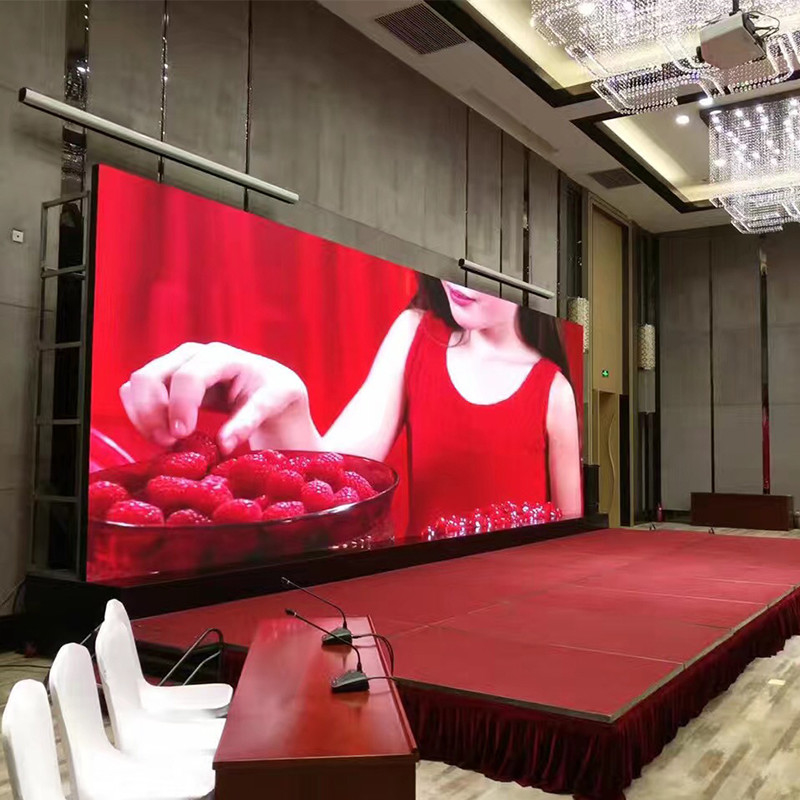

Detail Images
