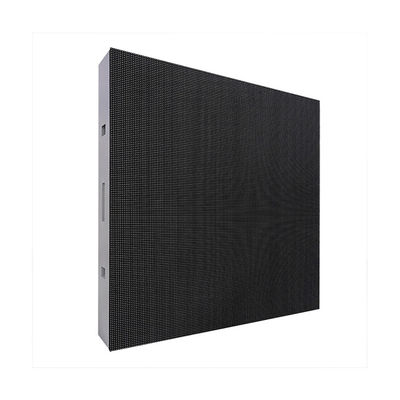

High Brightness Large SMD P10 7800cd/M2 HD LED Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE |
| Model Number: | VG-P10-DH4 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1sqm |
|---|---|
| Price: | 360usd/sqm |
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 Sqm/month |
|
Detail Information |
|||
| Module Size: | 320mm*160mm | Pixel Pitch: | 10mm |
|---|---|---|---|
| Application: | Outdoor | Control Mode: | Synchronous/ Asynchronous System |
| Highlight: | 7800cd/M2 exterior led display,P10 LED SMD SCREEN |
||
Product Description
High Brightness Full Color Large Waterproof Outdoor SMD Advertising Video Wall Panel P10 LED Display
High Brightness with Low Luminous Decay
Lecede high brightness outdoor led screen adopted high quality LED to make sure the brightness always in a high level, it can produce crystal clear images in virtually any lighting conditions, even in the sun directly.

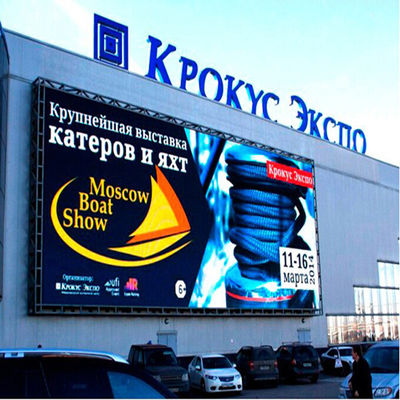

Suited for Outdoor Use
Lecede outdoor led panel has successfully passed Environmental reliability test and waterproof test, which proved that this product can withstand the most strict weather conditions. It has excellent waterproof level and strong design to resist shock.
Good Heat Dissipation with Scientific Structure Design
Lecede outdoor led display has enough space with high efficient fans increase dissipation capability, ensuring the stability and reliability even for long time continuous use, and prolong the lifespan of the led display.
| P10 SMD Outdoor Full Color LED Display Parameter | ||||
| (1)Parameter of Pixel | ||||
| Number | Item | Parameter | ||
| 1 | Pixel Pitch | 10mm | ||
| 2 | Pixel composition | 1R1G1B | ||
| (2)Parameter of Chip | ||||
| Number | Item | Wave length | Brightness | Specification |
| 1 | Red Chip | 621-625nm | 550-688mcd | SMD 3535 Lamp |
| 2 | Green Chip | 520-524nm | 1050-1312mcd | |
| 3 | Blue Chip | 466-470nm | 160-200mcd | |
| (3)Display Technical Parameters | ||||
| Lamp | LED Specification | SMD 3535 | ||
|

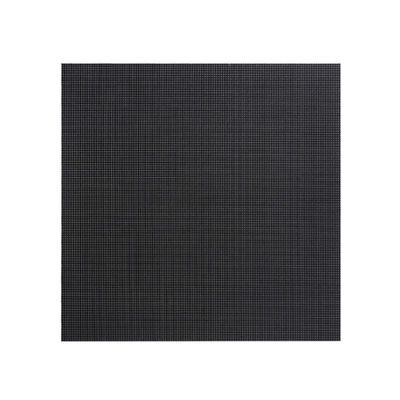

Module
|
Module Size | W320mm*H160mm | ||
| Module Resolution | W16 Dots*H16 Dots | |||
| Scanning Mode | 1/2 | |||
| Working Voltage | DC 5V | |||
| Module Power | 35W | |||
|
Cabinet
|
Standard Size | 960*960mm | ||
| Ingress Protection | IP65 (Front) /IP65 ( Rear) | |||
| Cabinet Resolution | 96*96 Dots | |||
| Cabinet Material | Iron/ Aluminum | |||
| 4 | LED Driver | Constant Current | ||
| 5 | Pixel/M2 | 10000 Dots/ M2 | ||
| 7 | Display Brightness | Maximum 7800cd/ M2 | ||
| 8 | Viewing Angle | Horizontal 160° Vertical 140° | ||
| 9 | Best Viewing Distance | ≥10m | ||
| 10 | Grey Level | Red,Green,Blue each 256 Levels of Grey | ||
| 11 | Display Color | 16.7M | ||
| 12 | Color Quality | 32 Bits | ||
| 13 | Frame Changing Frequency | >60(Frames)/s | ||
| 14 | Refresh Rate | >480HZ | ||
