Ultra Slim P3 Tv 192*192mm HD LED Display

China Ultra Slim P3 Tv 192*192mm HD LED Display supplier
Ultra Slim P3 Tv 192*192mm HD LED Display supplier Ultra Slim P3 Tv 192*192mm HD LED Display supplier Ultra Slim P3 Tv 192*192mm HD LED Display supplier Ultra Slim P3 Tv 192*192mm HD LED Display supplier Ultra Slim P3 Tv 192*192mm HD LED Display supplier Ultra Slim P3 Tv 192*192mm HD LED Display supplier

Large Image :  Ultra Slim P3 Tv 192*192mm HD LED Display

Product Details:

Place of Origin: China
Brand Name: Vegoo
Certification: CE
Model Number: VG-P3-dh

Payment & Shipping Terms:

Minimum Order Quantity: 1sqm
Price: Negotiable
Packaging Details: Plywood case / Flight case / Carton box
Delivery Time: 10-20 days
Payment Terms: T/T
Supply Ability: 5000 Sqm/month
Contact Now
Detailed Product Description
Pixel Pitch: 3mm Density: 111,111pixel/m2
Moduel Size(L×W)mm: 192mm×192mm Module Resolution: 64×64
High Light:

192*192mm conference display stands

,

P3 conference display banners

,

192*192mm HD LED Display

High Definition P3 Led Screen Indoor Tv LED screen 192*192mm module



P3 Indoor Full color LED Display Specification
NO: Product Name Specification
1 Pixel Pitch 3mm
2 Pixel Configuration 1R1G1B/SMD2121 Black lamp
3 Density 111,111pixel/m2
4 Moduel Size(L×W)mm 192mm×192mm

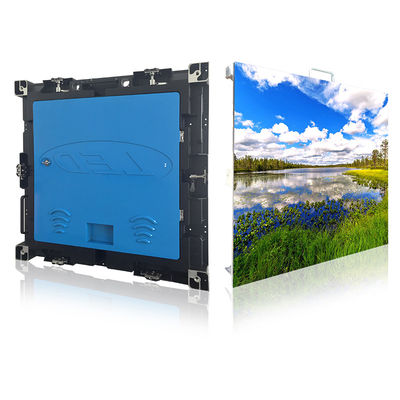

5 Cabinet Size(L×W×H)mm 576mm×576mm or 768×768mm×100mm
6 Module Resolution 64×64
7 Cabinet Resolution 192×192 or 256×256
8 Driving Method 1/32 Scan
9 Driving IC FM6124
10 Brightness 800cd/㎡
11 Contrast 1000:1
12 Brightness Adjustment Auto and Manual
13 Power Consumption Max Power:<545W
14 Average power: <165W
15 Cabinet Weight 20kg/25kg
16 Color Temperature 2000K—9500K
17 Horizontal Viewing Angle 140º
18 Vertical Viewing Angle 140º
19 Signal Processing 16bit
20 Grey Processing 1024×1024×1024
16834×16834×16834
21 Control Distance cable100m,Multimode500m,Single mode 2km
22 Frame Frequency 65 Hz
23 Refresh Rate >1920Hz
24 Control Mode Synchronous/Asynchronous
25 The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
26 Users can choose the recommended curve or adjust it based on actual situation
27 MTBF >50000 hours
28 Life Span 100,000 Hours
29 Operating Temperature Working : -20 - 65 ℃
30 Storage : -40 - 85 ℃
31 Environment Temperature -30℃ to 60℃; humidity Rh10% to 95%
32 Remote Control Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
33 Self-checking Technique Self-inspection, communication test, power test, temperature monitoring (Be customized)
34 Operating System Platform WindowsNT,Windows2000,WindowsXP,Windows7
35 Power Supply AC 110-220V/5V60Hz
36 Protection Level IP 45



Ultra Slim P3 Tv 192*192mm HD LED Display 0

Ultra Slim P3 Tv 192*192mm HD LED Display 1

FAQ

1,What about the lead time?

A:Within 15 working days after receiving the deposit.

2,Can you provide customized services?

A:Yes,We can design different category of products according to your demand.

3, Is it OK to print our logo on led screen product?

A:Yes,we can print your logo according your request.

4,Can I order a sample for led display screen?

A:Yes, we warmly welcome you to order a sample to test and check quality. You can choose any item what you want.

5,Is it OK to print our logo on led screen product?

A:Yes,we can print your logo according your request.
