Outdoor Large Rental P5.95 SMD2727 HD LED Display

China Outdoor Large Rental P5.95 SMD2727 HD LED Display supplier
Outdoor Large Rental P5.95 SMD2727 HD LED Display supplier Outdoor Large Rental P5.95 SMD2727 HD LED Display supplier Outdoor Large Rental P5.95 SMD2727 HD LED Display supplier Outdoor Large Rental P5.95 SMD2727 HD LED Display supplier Outdoor Large Rental P5.95 SMD2727 HD LED Display supplier

Large Image :  Outdoor Large Rental P5.95 SMD2727 HD LED Display

Product Details:

Place of Origin: China
Brand Name: Vegoo
Certification: CE
Model Number: VG-P5.95-DH

Payment & Shipping Terms:

Minimum Order Quantity: 1sqm
Price: $580
Packaging Details: Plywood case / Flight case / Carton box
Delivery Time: 10-20 days
Payment Terms: T/T
Supply Ability: 8000sqm/month
Contact Now
Detailed Product Description
Pixel Pitch: 5.95mm Moduel Size(L×W)mm: 250mm×250mm
Brightness: 6000cd/㎡ Cabinet Weight: 11.5kg
High Light:

P5.95 digital advertising display


SMD2727 outdoor advertising screen

Outdoor Large Size Advertising Screen Full Color Led Display Modules P5.95 SMD2727 LED Billboard Prices For Rental

1. Easy to install
2. Light weight and slim
3. Good heat dissipation
4. High and adjustable brightness
5. Power saving compared with common products
6. Using high reflesh IC, better viewing effect
7. Larger viewing angle: Horizontal angle 140 degree/elevation angle 140 degree


P5.95 Outdoor Full color LED Display Specification
NO: Product Name Specification
1 Pixel Pitch 5.95mm
2 Pixel Configuration 1R1G1B/SMD2727
3 Density 28,235 pixel/m2
4 Moduel Size(L×W)mm 250mm×250mm
5 Cabinet Size(L×W×H)mm 500mm×500mm×90mm
6 Module Resolution 42×42
7 Cabinet Resolution 84×84
8 Driving Method 1/7 Scan
9 Driving IC MBI5124
10 Brightness 6000cd/㎡
11 Contrast 6000 :1
12 Brightness Adjustment Auto and Manual
13 Power Consumption Max Power:<640W
14 Average power: <320W
15 Cabinet Weight 11.5kg
16 Color Temperature 2000K—9500K
17 Horizontal Viewing Angle 140º
18 Vertical Viewing Angle 140º
19 Signal Processing 16bit
20 Grey Processing 1024×1024×1024
21 Control Distance cable100m,Multimode500m,Single mode 2km
22 Frame Frequency 65 Hz
23 Refresh Rate >1920Hz
24 Control Mode Synchronous/Asynchronous
25 The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
26 Users can choose the recommended curve or adjust it based on actual situation
27 MTBF >50000 hours
28 Life Span 100,000 Hours
29 Operating Temperature Working : -20 - 65 ℃
30 Storage : -40 - 85 ℃
31 Environment Temperature -30℃ to 60℃; humidity Rh10% to 95%
32 Remote Control Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
33 Self-checking Technique Self-inspection, communication test, power test, temperature monitoring (Be customized)
34 Operating System Platform WindowsNT,Windows2000,WindowsXP,Windows7
35 Power Supply AC 110-220V/5V60Hz
36 Protection waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)

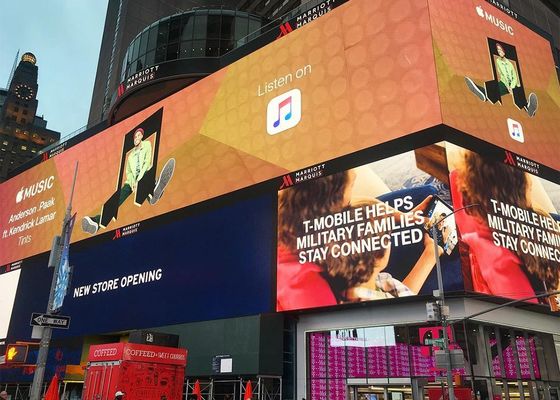

Product Aplication

Outdoor Large Rental P5.95 SMD2727 HD LED Display 0


Q1:How to choose a proper led screen for your need?
A:You just need to think of 3 simple questions when you choose a led screen by yourself.
1.Will you use it indoor or outdoor?
2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place forever)?
3.what is the appoximate size of the led screen you would like to purchase?

Q2:Which pixel pitch should i choose?
A:There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).

Q3:Which control system should i choose?
A:There is both synchronous and asynchronous control system for led screen on the market,for big size led screen(usually more than 20sqm) need to use synchronous control system,below 20sqm it's up to you to use syn or asyn.But asyn control system's refresh rate is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.

Q4:How to order from your compamy?
A:Please send us your purchase order by Email, Whatsapp, Skype, Facebook or making a call, and we will send you PI as your approval. Please let us know the follormwing infoation for your order.

1) Product information: Screen size,indoor or outdoor,rental or installation
2) Delivery time required
3) Shipping information: Company name, Detailed shipping address with zip code and Phone number.

Q5:How to pay?
A:T/T and L/C, 30% deposit in advance, and balance 70% before shipment.

Q6:How to ship?
A:It denpens on your budget and time you need the led screen. Regularly, if the quantity is less, we suggest to deliver by air,otherwise by sea to save the costs..

Q7:How to install it after i received it?
A:We will offer you the drawing to guide you for installation, we could also offer steel drawing, software set up drawing or photo or send our engineer fly to you for help if needed.
