P4.81 Rental Outdoor SMD Video Full Color Waterproof Led Display Screen With High Definition And High Brightness
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-SD P6 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T |
| Supply Ability: | 8000 sqm/month |
|
Detail Information |
|||
| Pixel Pitch: | 4.81mm | Density: | 43243 Pixel/m2 |
|---|---|---|---|
| Moduel Size(L×W)mm: | 250mm×250mm | Cabinet Size(L×W×H)mm: | 500mm×500mm×90mm |
| Driving Method: | 1/13 Scan | Cabinet Weight: | 11.5kg |
| Highlight: | led video wall rental,outdoor rental led display |
||
Product Description
Rental smd outdoor hd p3.91 p4.81 p5 p6 p8 p10 led screen display
Application:
Outdoor LED Display can be widely used at advertising led display, shopping mall led display for logo showing, bank&stock exchange led display for rates showing,trains&bus station,airport,telecommunication LED screen system for information showing and instruction,stage performances and so on.
Feature:
Full Color LED Display: perfect vivid image,super brightness, long life span and stable work, waterproof, support any format of video etc.
LED display cabinet design or easy install and dismantle. best quality, best competitive price
| P4.81 Outdoor Full color LED Display Specification | ||||||||||||
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 4.81mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD1921 | ||||||||||
| 3 | Density | 43,243 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 250mm×250mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 500mm×500mm×90mm | ||||||||||
| 6 | Module Resolution | 52×52 | ||||||||||
| 7 | Cabinet Resolution | 104×104 | ||||||||||
| 8 | Driving Method | 1/13 Scan | ||||||||||
| 9 | Driving IC | MBI5124 | ||||||||||
| 10 | Brightness | 4500cd/㎡ | ||||||||||
| 11 | Contrast | 5000 :1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜560W | ||||||||||
| 14 | Average power: ＜280W | |||||||||||
| 15 | Cabinet Weight | 11.5kg | ||||||||||
| 16 | Color Temperature | 2000K—9500K | ||||||||||
| 17 | Horizontal Viewing Angle | 140º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 16bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >1920Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 110-220V/5V60Hz | ||||||||||
| 36 | Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||

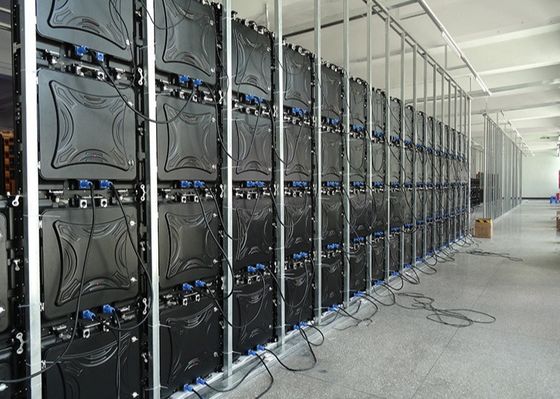

Installation
FQA
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with whatsApp/email /phone, in case of any delays.
2. What kind of display do we provide?
We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you choose.
3. What about the lead time for an order?
Always: 10-17 days, as your order quantity, sometimes we have stock, can delivery within 7 days
4. What about the warranty?
We have two years quality guaranteed, spare parts such as led module, receiving card, control card, power supply are damaged not cause of artificial damaged, then it's free maintenance and ship back new ones for replacement.
5.How about the quality?
Our led products must be testing of at least 72hours before shipping, from purchase raw materials to ship ,Each step has strict quality control systems to ensure led display with good quality
6. Can you offer a technical support? Since it's my first time....
We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Nova star and colorlight or Linsn control systems, our engineer can directly teach you how to control, or help you to done if you are really don't know how to control(Our Engineer can text English, we can saving more time )
We're devoted to innovative high-end led display with over 15 years manufacturing experience, and we believe you could get a professional solution and best service from Vegoo. We're happy to serve you.
If you need led display screen,welcome to contact us,we can customize according to your needs.
