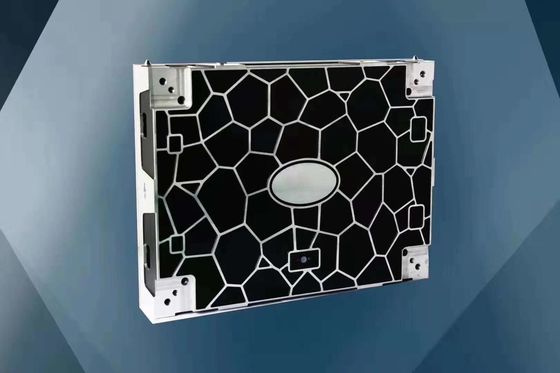

Fine Pixel Pitch P1.667 HD LED Display Size 480 mm x 480 mm Die casting Aluminum cabinet Display black led
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE FCC ROHS |
| Model Number: | Vg-1.667 SMC |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 sqm |
|---|---|
| Price: | 1500 USD |
| Packaging Details: | 60 cm x 60 x cm x 60cm |
| Delivery Time: | 8-15 days |
| Payment Terms: | T/T |
| Supply Ability: | 1500 sqm per month |
|
Detail Information |
|||
| Tube Chip Color: | Full Color | Display Function: | Video,Graphics,Animation |
|---|---|---|---|
| Warranty: | 3 Years | Color: | Full Color |
| Application: | Indoor Advertising, Live Event ,Video Wall Media/stage Led Display | Power Supply: | 50~60Hz |
| Pixel Density: | 360000 | Module Size: | 240*240mm |
| Life Span: | 100000 Hours | Brightness: | >600CD/ Square Meter |
| Cabinet Size: | 480x480mm | Refresh Rate: | 1920/3840 |
| Highlight: | commercial advertising led display,high resolution led display |
||
Product Description
About Us:
We are one of the professional led display manufacturers in China and we have our own researching
and developping department for customized led display and solutions . To cooperatted with us , you
will save more money and more precious time.
Contact: Michael Nie
Tel /Whatsapp / Wechat : +86136 6260 3320
Email: michael@vegooled.com
Applications:
Our products widely used in various public places such as commercial plaze , Stations ,Airport ,Stadiums,
Transport Facilities, Financial Institutions, Theater, Stage etc......
| P1.667 Indoor Full color LED Display Specification | ||||||||||||
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 1.667mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD1010 Black lamp | ||||||||||
| 3 | Density | 360,000 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 240mm×240mm×8mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 480mm×480mm×60mm | ||||||||||
| 6 | Module Resolution | 144×144 | ||||||||||
| 7 | Cabinet Resolution | 288×288 | ||||||||||
| 8 | Driving Method | 1/24 Scan | ||||||||||
| 9 | Driving IC | MBI5153/ICN2153/FM6353 | ||||||||||
| 10 | Brightness | 600cd/㎡ | ||||||||||
| 11 | Contrast | 6000 :1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜800W | ||||||||||
| 14 | Average power: ＜300W | |||||||||||
| 15 | Cabinet Weight | 6.5kg | ||||||||||
| 16 | Color Temperature | 2000K—9500K | ||||||||||
| 17 | Horizontal Viewing Angle | 130º | ||||||||||
| 18 | Vertical Viewing Angle | 130º | ||||||||||
| 19 | Signal Processing | 16bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >3840Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC110-220V/ 5V60Hz | ||||||||||
| 36 | Protection Level | IP45 | ||||||||||
