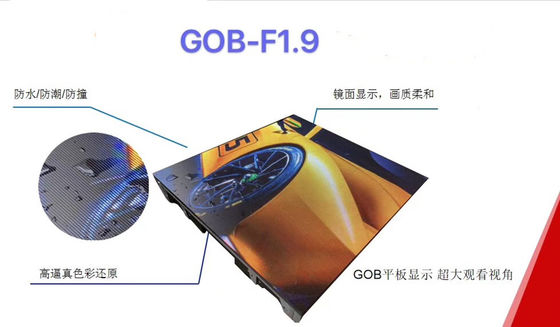

Pantallas LED P1.953 GOB Display For Rental Indoor Digital Signage Billboards Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/CCC |
| Model Number: | VGGOBRP1.953A1 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | USD2200-USD3200/square meter |
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 15 working days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 1500Sqm/months |
|
Detail Information |
|||
| Product Name: | LED Pantallas P1.953 GOB | Pixel Pitch: | 1.953mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/SMD1515 Black Lamp | Density: | 262160 Pixel/m2 |
| Moduel Size(L×W)mm: | 250mm×250mm | Module Resolution: | 128×128 |
| Driving Method: | 1/32 Scan | Driving IC: | MBI5153 |
| Brightness: | 600cd/㎡ | Application: | Indoor Rental GOB |
| Points: | Top GOB Protechtion | Type: | Rental |
| Adervantage: | Dampproof | Adervantage1: | Dustproof Waterproof Crashproof |
| Adervantage2: | Front Maintenance Service | Feature: | Dance Floor Screen |
| Performance: | Pantallas LED Digital Signage | Color: | RGB SMD Full Color |
| Highlight: | high resolution led display,commercial advertising led display |
||
Product Description
Pantallas P1.953 GOB Display for Rental indoor digital signage billboards module 250x250mm cabinet 500x500 rental
Adervantage

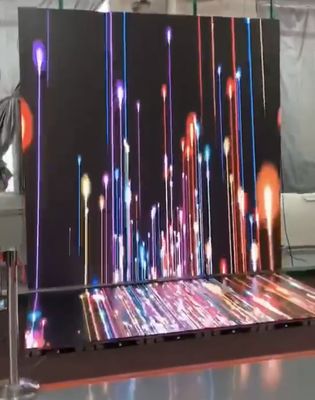

- Dance floor screen
- Front maintenance service

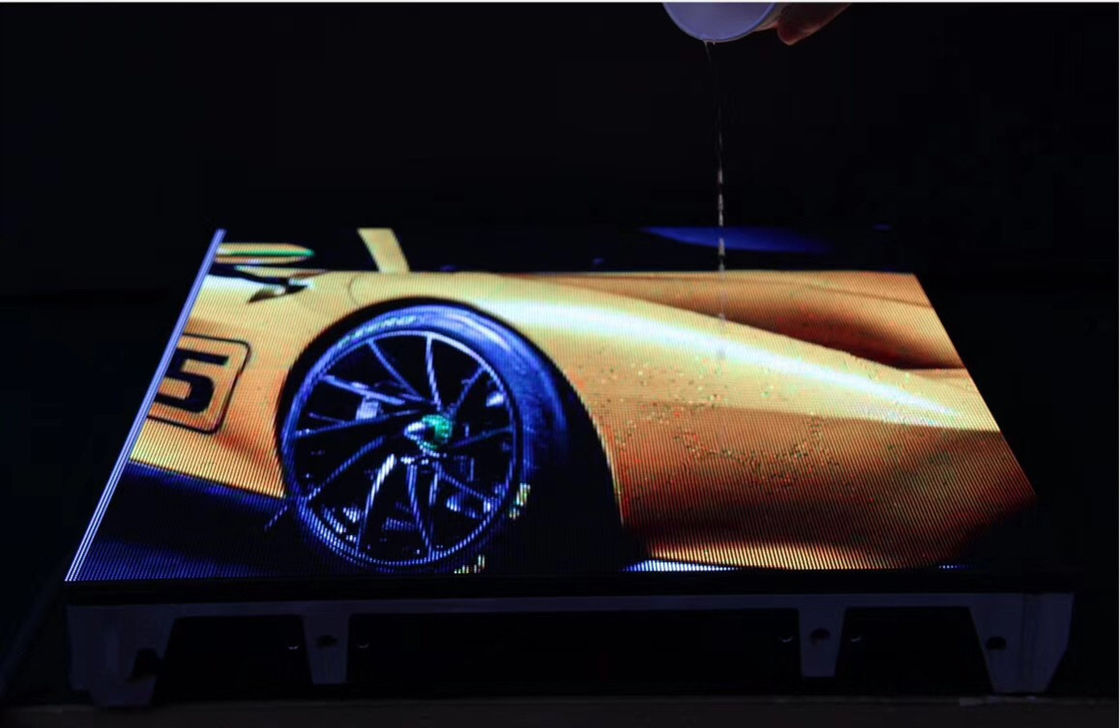

- Dustproof Waterproof Crashproof Dampproof
- Rental Indoor advertising, digital billboards, advertising companies
- Sports halls, fields, playgrounds,school church
- Airports,Stations and Railway passenger terminals.
- Facades of shopping malls, department stores, banks and car dealerships.
- Architecture and social projects, information systems in cities.
- Show-business, concerts, festivals, motor shows and other public events.
P1.953 Indoor Full color LED Display Specification
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 1.953mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD1515 Black lamp | ||||||||||
| 3 | Density | 262,161 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 250mm×250mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 500mm×500mm×75mm | ||||||||||
| 6 | Module Resolution | 128×128 | ||||||||||
| 7 | Cabinet Resolution | 256×256 | ||||||||||
| 8 | Driving Method | 1/32 Scan | ||||||||||
| 9 | Driving IC | MBI5153 | ||||||||||
| 10 | Brightness | 600CD/㎡ | ||||||||||
| 11 | Contrast | 1000:1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜1000W | ||||||||||
| 14 | Average power: ＜450W | |||||||||||
| 15 | Module Weight | 0.25kg | ||||||||||
| 16 | Color Temperature | 9500K—11500K | ||||||||||
| 17 | Horizontal Viewing Angle | 140º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 10 or 14bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >3840Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 85-264V | ||||||||||
| 36 | Protection Level | IP 41 | ||||||||||
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
Attention :
We specialized in Fine Pitch LED and 12 years Premier Provider of Visual Experiences.
