Waterproof Stage Rental LED Display 1R1G1B/SMD3535 Pixel 1000:1 Contrast

China Waterproof Stage Rental LED Display 1R1G1B/SMD3535 Pixel 1000:1 Contrast supplier

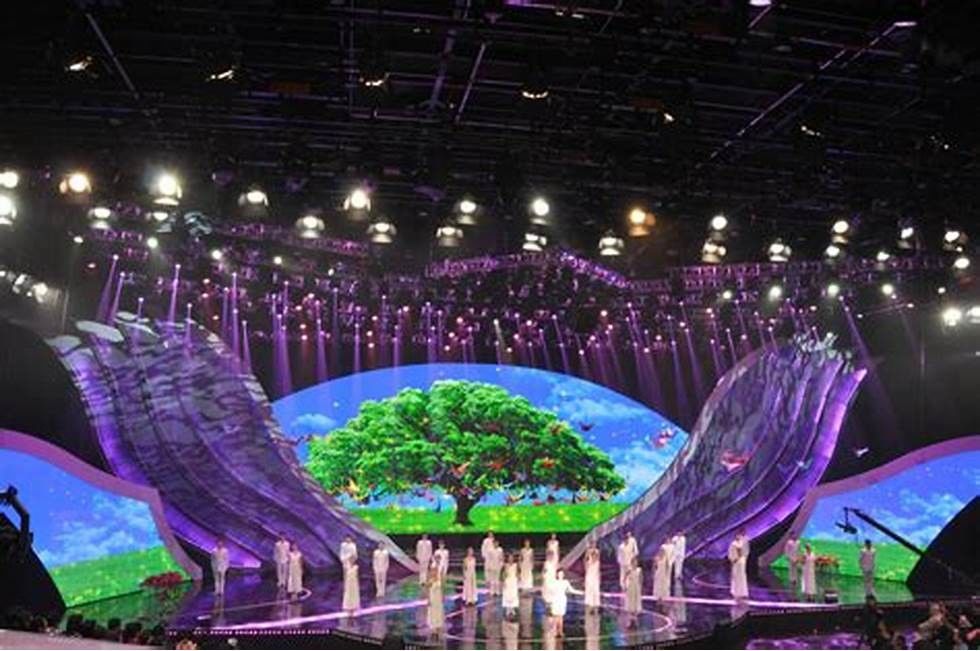

Large Image :  Waterproof Stage Rental LED Display 1R1G1B/SMD3535 Pixel 1000:1 Contrast

Product Details:

Place of Origin: China
Brand Name: Vegoo
Certification: CE/ROHS/FCC/
Model Number: VG-RD 6

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Flight case
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 3000sq.m/month
Detailed Product Description
Product Name: Rental LED Display Feature: Waterproof
Density: 22,545 Pixel/m2 Cabinet Size(L×W×H)mm: 640mm×640mm×90mm
Brightness: 5500cd/㎡ Application: Stage
High Light:

stage rental led display


led video wall rental

Waterproof Stage Rental LED Display 1R1G1B/SMD3535 Pixel 1000:1 Contrast


Rental LED Display Advantages

  1. High brightness: the products adopt super-high brightness LED, so that you can see clearly from a long distance even in strong sunshine.
  2. Good effect: the products adopt non-linear calibration technology to realize clearer images with stronger feeling of layers.
  3. High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.
  4. Diversified display modes: the products support multiple display modes.
  5. Easy operation: the products adopt popular video playing software to facilitate system operations.
  6. Convenient installation and maintenance of display modules
  7. Energy saving and environment protection, antistatic, dust-proof, good heat dissipation, cost-effective.
  8. Large 140° viewing angle

Rental LED Display Specification


Product Name Specification
Pixel Pitch 6.67mm
Pixel Configuration 1R1G1B/SMD3535
Density 22,545 pixel/m2
Moduel Size(L×W)mm 320mm×160mm
Cabinet Size(L×W×H)mm 640mm×640mm×90mm
Module Resolution 48×24
Cabinet Resolution 96×96
Driving Method 1/6 Scan
Driving IC MBI5124
Brightness 5500cd/㎡
Contrast 1000:1
Brightness Adjustment Auto and Manual
Power Consumption Max Power:<800W
Average power: <400W
Module Weight 0.5kg
Color Temperature 9500K—11500K
Horizontal Viewing Angle 140º
Vertical Viewing Angle 140º
Signal Processing 10 or 14bit
Grey Processing 1024×1024×1024
Control Distance cable100m,Multimode500m,Single mode 2km
Frame Frequency 65 Hz
Refresh Rate >1920Hz
Control Mode Synchronous/Asynchronous
The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
Users can choose the recommended curve or adjust it based on actual situation
MTBF >50000 hours
Life Span 100,000 Hours
Operating Temperature Working : -20 - 65 ℃
Storage : -40 - 85 ℃
Environment Temperature -30℃ to 60℃; humidity Rh10% to 95%
Remote Control Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)


Services Before-sale:


Set a special telephone line to resolve the confusion from clients and supply free technology services by telephone.


Consider the demands of clients carefully , study the situation of the installation condition , Team up the related staff and workers promptly , give clients design program details to help them choose the products which they wanted as soon as possible


Service In - sales :


Try the best to meet the reasonable demands by clients Provisional changed .

Keep close touch with the clients during the period if installation .

Cooperate friendly with the clients, satisfy the clients with the best quality of led display .


Service After-sale:


Normal products have one year guarantee, and whole life maintenance, free charges . we just charge materials cost only if products out off guarantee.

You can down load and upgrade the related operating software of Led display freely from our company website , so as to resolve the problems when you use our led display .


Check the quality of appliance , do maintenance job and ask good suggestions form clients on a regular time schedule .
