Product Details:
Payment & Shipping Terms:
|
| Product Name: | P6 LED Video Wall | Pixel Pitch: | 6mm |
|---|---|---|---|
| Density: | 27,777 Pixel/m2 | Cabinet Size(L×W×H)mm: | 960mm×960mm×130mm |
| Driving IC: | MBI 5124 IC Or ICN 2038S | Application: | Commercial Outside Stage |
| High Light: | stage rental led display,outdoor rental led display |
||

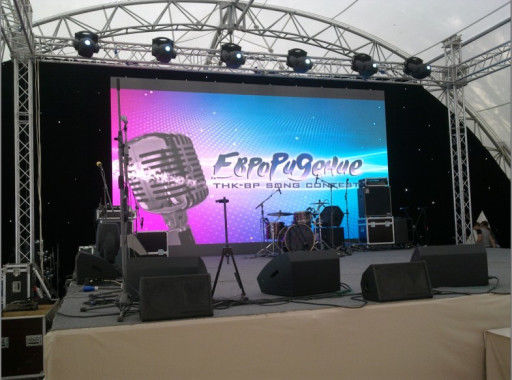

Commercial Outside P6 LED Video Wall , Large LED Screens Rental For Stage
P6 LED Video Wall Characteristic
1) With good lightening accordance and no mosaic.
2) Can play different formats of image files, flash, video signal from TV, video and other equipments.
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and shrinked.
4) High brightness, and can be adjustable, meets the needs of customer's requirements.
P6 LED Video Wall Details:
1. 6mm pixel rgb, hd, big density, very bright
2. 2 years' warranty for entire screen.
3. on-site professional service.
4. adequate spare parts supply.
5. hotline service, fast response.
P6 LED Video Wall Specification
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 6mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD3535 | ||||||||||
| 3 | Density | 27,777 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 192mm×192mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 960mm×960mm×130mm | ||||||||||
| 6 | Module Resolution | 32×32 | ||||||||||
| 7 | Cabinet Resolution | 160×160 | ||||||||||
| 8 | Driving Method | 1/8 Scan | ||||||||||
| 9 | Driving IC | MBI 5124 IC or ICN 2038S | ||||||||||
| 10 | Brightness | 6500 /㎡ | ||||||||||
| 11 | Contrast | 1000:1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜810W | ||||||||||
| 14 | Average power: ＜270W | |||||||||||
| 15 | Module Weight | 0.244kg | ||||||||||
| 16 | Color Temperature | 9500K—11500K | ||||||||||
| 17 | Horizontal Viewing Angle | 140º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 10 or 14bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >1920Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 110-220V | ||||||||||
| 36 | Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Our Sincere Services:
Technical Support: We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company such as visa, hotel,food,flight ticket for back and forth, and should help to arrange our staff visa.
Free training: You can send your staffs who have some knowledge of electronics to our factory and we will provide free training about how to adjust, maintain and repair the display.
