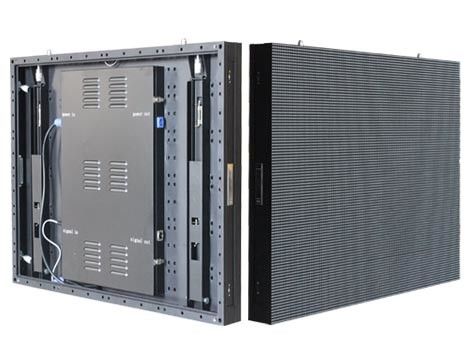

Full Color Indoor LED Wall Screen Rental / P3 Portable LED Video Wall
Product Details:
| Place of Origin: | Made in China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC |
| Model Number: | VG-RD 3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Flight case |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000sq.m/month |
|
Detail Information |
|||
| Name: | LED Wall Screen Rental | Pixel Pitch: | 3mm |
|---|---|---|---|
| Color: | Full Color | Density: | 111,111pixel/m2 |
| Moduel Size(L×W)mm: | 192×192mm | Cabinet Size(L×W×H)mm: | 576×576×90mm |
| Brightness: | 1000cd/㎡ | Type: | Portable LED Video Wall |
| High Light: | stage rental led display,outdoor rental led display |
||
Product Description
Full Color Indoor LED Wall Screen Rental / P3 Portable LED Video Wall
LED Wall Screen Rental Feature
- Nice appearance and simple structures.
- Jointed correctly, being installed & dismounted by one person without tool.
- Humanized operating interface with breakdown indicator lights, easy to maintain.
- High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
LED Wall Screen Rental Advantage
-
No Ghosting
-
Magnetic Modules
-
High Refresh Rate
-
High View Angles
-
High Contrast
-
Extremely Flat Module
-
Black LED Smd
-
Flexible Size Panel / Cabinet
LED Wall Screen Rental Parameters
|
NO: |
Product Name |
Specification |
||||||||||
|
1 |
Pixel Pitch |
3mm |
||||||||||
|
2 |
Pixel Configuration |
1R1G1B/SMD2121 Black lamp |
||||||||||
|
3 |
Density |
111,111pixel/m2 |
||||||||||
|
4 |
Moduel Size(L×W)mm |
192mm×192mm |
||||||||||
|
5 |
Cabinet Size(L×W×H)mm |
576mm×576mm×90mm |
||||||||||
|
6 |
Module Resolution |
64×64 |
||||||||||
|
7 |
Cabinet Resolution |
192×192 |
||||||||||
|
8 |
Driving Method |
1/16 Scan |
||||||||||
|
9 |
Driving IC |
MBI5124 or ICN 2038S |
||||||||||
|
10 |
Brightness |
1000cd/㎡ |
||||||||||
|
11 |
Contrast |
1000:1 |
||||||||||
|
12 |
Brightness Adjustment |
Auto and Manual |
||||||||||
|
13 |
Power Consumption |
Max Power:＜1100W |
||||||||||
|
14 |
Average power: ＜440W |
|||||||||||
|
15 |
Module Weight |
0.25kg |
||||||||||
|
16 |
Color Temperature |
9500K—11500K |
||||||||||
|
17 |
Horizontal Viewing Angle |
140º |
||||||||||
|
18 |
Vertical Viewing Angle |
140º |
||||||||||
|
19 |
Signal Processing |
10 or 14bit |
||||||||||
|
20 |
Grey Processing |
1024×1024×1024 |
||||||||||
|
21 |
Control Distance |
cable100m,Multimode500m,Single mode 2km |
||||||||||
|
22 |
Frame Frequency |
65 Hz |
||||||||||
|
23 |
Refresh Rate |
>1920Hz |
||||||||||
|
24 |
Control Mode |
Synchronous/Asynchronous |
||||||||||
|
25 |
The Opposite Calibration Curve |
With Eight Optional Gamma Calibration Curve |
||||||||||
|
26 |
Users can choose the recommended curve or adjust it based on actual situation |
|||||||||||
|
27 |
MTBF |
>50000 hours |
||||||||||
|
28 |
Life Span |
100,000 Hours |
||||||||||
|
29 |
Operating Temperature |
Working : -20 - 65 ℃ |
||||||||||
|
30 |
Storage : -40 - 85 ℃ |
|||||||||||
|
31 |
Environment Temperature |
-30℃ to 60℃; humidity Rh10% to 95% |
||||||||||
|
32 |
Remote Control |
Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) |
||||||||||
|
33 |
Self-checking Technique |
Self-inspection, communication test, power test, temperature monitoring (Be customized) |
||||||||||
|
34 |
Operating System Platform |
WindowsNT,Windows2000,WindowsXP,Windows7 |
||||||||||
|
35 |
Power Supply |
AC110-220V |
||||||||||
|
36 |
Protection |
dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) |
||||||||||
Our products WeiGu LED displays in the rapidly expanding Chinese market at the same time, has towards the international market, and the share of export gradually increasing. (all of our products passed RoHS/CCC/CE/EMC/ISO /FCC certifications. The LED application product variety is complete which researched and manufactured by our company, the product structure diversifying. Including: Cover the indoor and outdoor series. Such like: 1. Rental display; 2. Advertising LED display; 3. LED TV; 4. Full color anomalous display etc. Products are widely used in various public places: Such as commercial plaza, government agency, stadiums, transport facilities, financial institutions, theater, performance hall, etc. Our products are exported to the United States, Europe, southeast Asia and other countries, Hong Kong, Taiwan and other regions. With international standards of production process, strictly control product quality and won the customer consistent high praise.
