Full Color Horizontal P2 LED Video Wall / LED Wall Panels High Density
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-HD 2.0 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 15 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 1500Sqm/months |
|
Detail Information |
|||
| Product Name: | P2 LED Video Wall | Color: | Full Color |
|---|---|---|---|
| Module Resolution: | 64×64 | Driving Method: | 1/32 Scan |
| Driving IC: | MBI5153 | Feature: | High Density |
| Highlight: | high definition led display,commercial advertising led display |
||
Product Description

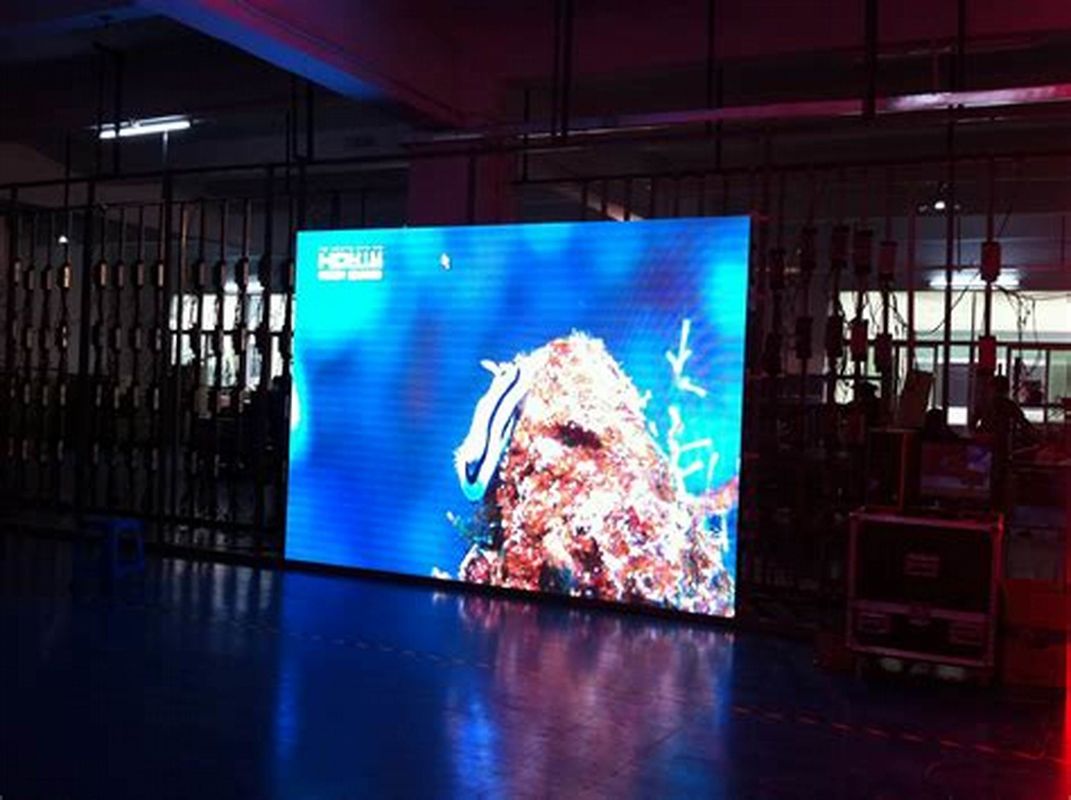

Full Color Horizontal P2 LED Video Wall / LED Wall Panels High Density
P2 LED Video Wall Introduction
LED Video Wall , also called led screen, led video wall, or led sign, with its unique advantages, has gradually replaced the traditional billboards, light boxes, etc. LED display advertising has become a new force in the media industry.
P2 LED Video Wall Description:
1) Reply your inquiry in 24 working hours.
2) Experienced staffs answer all your query in fluent English,Spanish,French,German etc
3) Customized design is available,OEM & ODM are welcomed.
4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5) Special discount and protection of sales area provided to our distributor.
6) Warmly welcome your visit in our company if available.
7) Warranty: 24 months, a little investment for longer warranty time.
P2 LED Video Wall Specification
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 2.0mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD1515 Black lamp | ||||||||||
| 3 | Density | 250,000 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 128mm×128mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 512mm×512mm×90mm | ||||||||||
| 6 | Module Resolution | 64×64 | ||||||||||
| 7 | Cabinet Resolution | 256×256 | ||||||||||
| 8 | Driving Method | 1/32 Scan | ||||||||||
| 9 | Driving IC | MBI5153 | ||||||||||
| 10 | Brightness | 600CD/㎡ | ||||||||||
| 11 | Contrast | 1000:1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜1000W | ||||||||||
| 14 | Average power: ＜500W | |||||||||||
| 15 | Module Weight | 0.21kg | ||||||||||
| 16 | Color Temperature | 6000K—9000K | ||||||||||
| 17 | Horizontal Viewing Angle | 120º | ||||||||||
| 18 | Vertical Viewing Angle | 120º | ||||||||||
| 19 | Signal Processing | 10 or 14bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >3840Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 110-220V | ||||||||||
| 36 | Protection | IP 41 | ||||||||||
Customer Service
1) Guarantee Time: Within one year after delivery form factory
2) Maintenance Coverage : LED modules,Power supply ,Control system and other accessories ( This warranty exclude accessories purchasing form other factory )
3) Maintenance Mode :
By returned maintenance , through express or by other way
4) Response time for maintenance :
