Indoor LED Video Wall Panels , Seamless LED Stage Screen Rental 600cd/㎡
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-HD 1.923 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 15 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 1500Sqm/months |
|
Detail Information |
|||
| Name: | LED Video Wall Panels | Application: | Indoor |
|---|---|---|---|
| Other Name: | LED Stage Screen Rental | Density: | 270，410 Pixel/m2 |
| Moduel Size(L×W)mm: | 200mm×150mm | Module Resolution: | 104×78 |
| Driving Method: | 1/26 Scan | Driving IC: | MBI5153 |
| Brightness: | 600cd/㎡ | ||
| High Light: | high definition led display,commercial advertising led display |
||
Product Description
Indoor LED Video Wall Panels , Seamless LED Stage Screen Rental 600cd/㎡

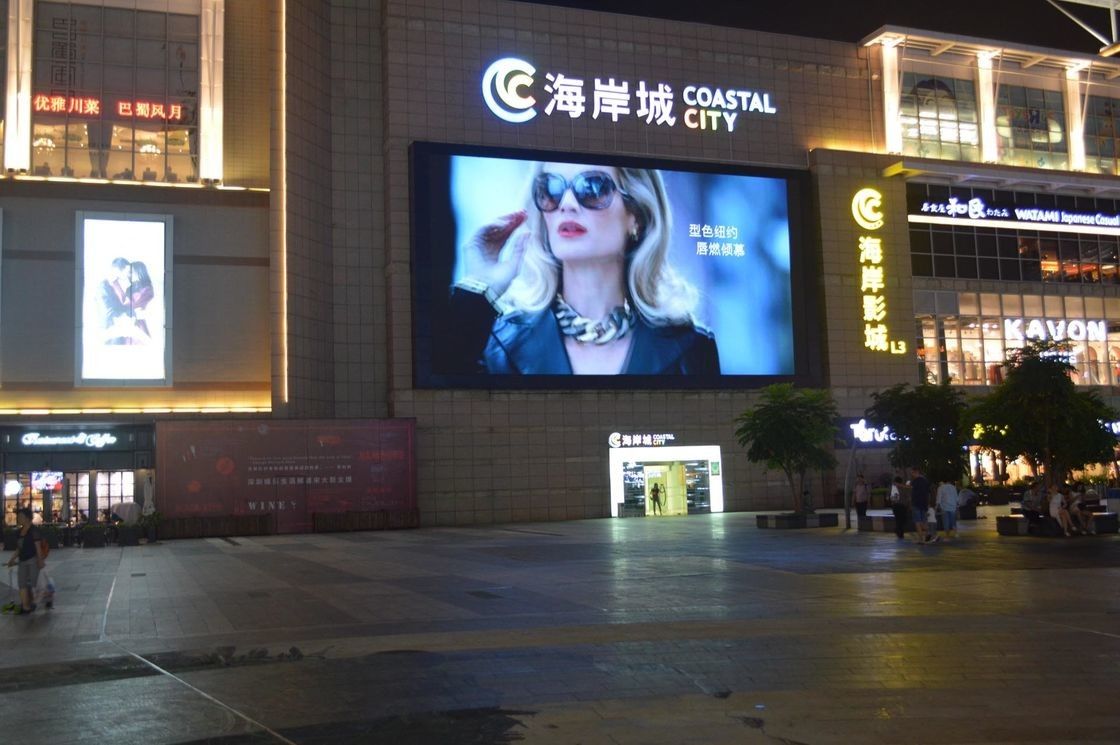

LED Video Wall Panels Application
LED Video Wall Panels is widely used in following:
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.
LED Video Wall Panels Specification
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 1.923mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD1515 Black lamp | ||||||||||
| 3 | Density | 270,410 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 200mm×150mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 400mm×300mm×65mm | ||||||||||
| 6 | Module Resolution | 104×78 | ||||||||||
| 7 | Cabinet Resolution | 208×156 | ||||||||||
| 8 | Driving Method | 1/26 Scan | ||||||||||
| 9 | Driving IC | MBI5153 | ||||||||||
| 10 | Brightness | 600CD/㎡ | ||||||||||
| 11 | Contrast | 1000:1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜1000W | ||||||||||
| 14 | Average power: ＜450W | |||||||||||
| 15 | Module Weight | 0.15kg | ||||||||||
| 16 | Color Temperature | 9500K—11500K | ||||||||||
| 17 | Horizontal Viewing Angle | 140º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 10 or 14bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >3840Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 85-264V | ||||||||||
| 36 | Protection Level | IP 41 | ||||||||||
