Product Details:
Payment & Shipping Terms:
|
| Product Name: | P3.91 Indoor LED Display | Pixel Pitch: | 3.91mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/SMD2121 Black Lamp | Density: | 65,536 Pixel/m2 |
| Moduel Size(L×W)mm: | 250mm×250mm | Cabinet Size(L×W×H)mm: | 500mm×500/1000mm |
| Brightness: | 1000cd/㎡ | Contrast: | 1000:1 |
| Material: | Nation Star SMD2020 | Usage: | Indoor Portable |
| Application: | Stage,conference,concert,live Events,TV Station,aireport Station,advertising Video Wall | Service: | Credible Quality Manufacturer |
| Color: | Cob LED Full Color | Name: | Front Maintainable |
| High Light: | stage rental led display,led video wall rental |
||
Quick easy strong installation LED display for P3.91 indoor die casting aluminum cabinet 500x1000mm MBI5124 chip
Details:
1. P3.91 HD indoor led display.
2. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive
3. Low consumption, stable performance, highly durable
4. High brightness & broad viewing angle, brightness can be adjusted automatically or manually
5. 2 years warranty, easy to install & maintenance
6. CE, ROHS, FCC,

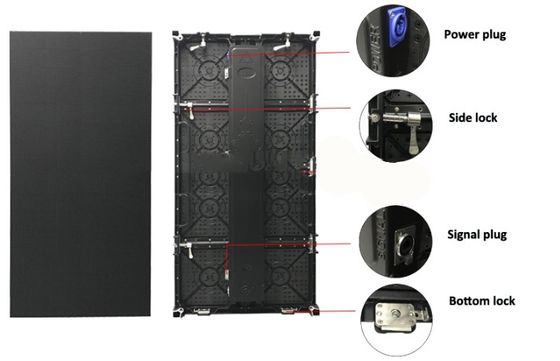

Quick Assembly and Disassebmly
Unique fast lock design, the upper and lower cabinet connection can be completed in only one second
Adjustable Angle Lock, Flexible Stage Design
Arc-shaped connection available, with angle adjustment device, concave and convex 10 degrees of adjustment to meet the different arc connection applications.
Slim and Light Weight Die Casting Aluminum Cabinet Design
Weight only 8kg, easy to handle. Die cast aluminum cabinet, perfect splicing without gaps. Fast locking makes assembly and disassembly extremely easy. High-quality plugs ensure reliability.
Front Maintenance Magnetic Module
Snap-in quick disassembly design, maintenance and installation is more efficient and convenient.
Absolute 4K HD Display Visual Effects
High contrast 3000:1 and HD 4K perfect picture quality, bring you absolute visual enjoyment.
easily attract attention, greatly enhance the value of advertising.
P3.91 Indoor Full color LED Display Specification
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 3.91mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
| 3 | Density | 65,536 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 250mm×250mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 500mm×1000mm×90mm | ||||||||||
| 6 | Module Resolution | 64×64 | ||||||||||
| 7 | Cabinet Resolution | 128×256 | ||||||||||
| 8 | Driving Method | 1/16 Scan | ||||||||||
| 9 | Driving IC | MBI5124 or ICN 2038S | ||||||||||
| 10 | Brightness | 1000cd/㎡ | ||||||||||
| 11 | Contrast | 1000:1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜600W | ||||||||||
| 14 | Average power: ＜200W | |||||||||||
| 15 | Module Weight | 0.52kg | ||||||||||
| 16 | Color Temperature | 9500K—11500K | ||||||||||
| 17 | Horizontal Viewing Angle | 160º | ||||||||||
| 18 | Vertical Viewing Angle | 120º | ||||||||||
| 19 | Signal Processing | 10 or 14bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >1920Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 110-220V | ||||||||||
| 36 | Protection | dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
LED Solutions Team is there every step of the way to ensure every customer receives SEAMLESS product support & service.
