SMD2121 Rental LED Display P3.91 Indoor Movable Die Casting Panel 500x1000mm Nation Star
Product Details:
| Place of Origin: | Made in China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-RD-P3.91-500-3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 sq.m |
|---|---|
| Packaging Details: | Flight case |
| Delivery Time: | 15-20 days |
| Supply Ability: | 3000sq.m/month |
|
Detail Information |
|||
| Product Name: | P3.91 Indoor LED Display | Pixel Pitch: | 3.91mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/SMD2121 Black Lamp | Density: | 65,536 Pixel/m2 |
| Moduel Size(L×W)mm: | 250mm×250mm | Cabinet Size(L×W×H)mm: | 500mm×500/1000mm |
| Brightness: | 1000cd/㎡ | Contrast: | 1000:1 |
| Material: | Nation Star SMD2020 | Usage: | Indoor Portable |

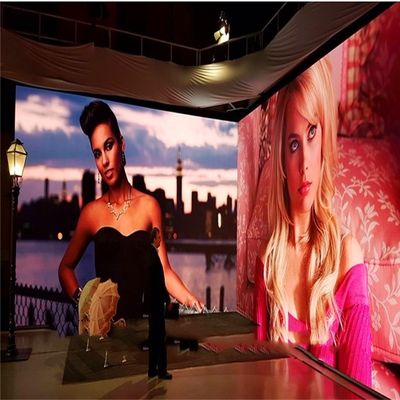

| Application: | Stage,conference,concert,live Events,TV Station,aireport Station,advertising Video Wall | Service: | Credible Quality Manufacturer |
| Color: | Cob LED Full Color | Function: | Movable |
| Application: | Rental Outdoor And Indoor | ||
| High Light: | stage rental led display,led video wall rental |
||
Product Description
Visual supplier manufacturer LED display for P3.91 indoor movable die casting panel 500x1000mm nation star SMD2121
More details
Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive
Low consumption, stable performance, highly durable,high brightness & broad viewing angle, brightness can be adjusted automatically or manually
Quick Assembly and Disassebmly
Unique fast lock design, the upper and lower cabinet connection can be completed in only one second
Adjustable Angle Lock, Flexible Stage Design
Arc-shaped connection available, with angle adjustment device, concave and convex 10 degrees of adjustment to meet the different arc connection applications.

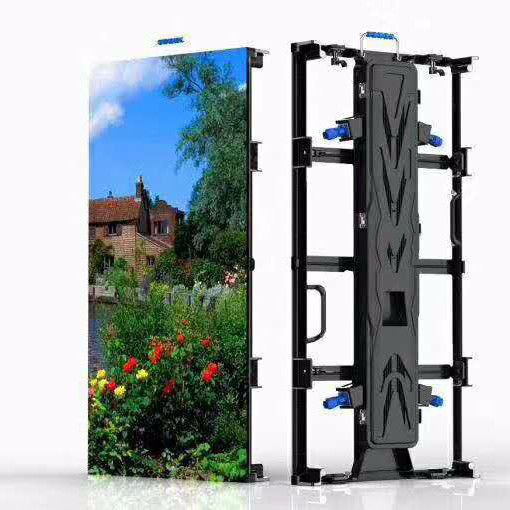

Slim and Light Weight Die Casting Aluminum Cabinet Design
Weight only 8kg, easy to handle. Die cast aluminum cabinet, perfect splicing without gaps. Fast locking makes assembly and disassembly extremely easy. High-quality plugs ensure reliability.
Front Maintenance Magnetic Module
Snap-in quick disassembly design, maintenance and installation is more efficient and convenient.
Absolute 4K HD Display Visual Effects
High contrast 3000:1 and HD 4K perfect picture quality, bring you absolute visual enjoyment.
easily attract attention, greatly enhance the value of advertising.
P3.91 Indoor Full color LED Display Specification
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 3.91mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
| 3 | Density | 65,536 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 250mm×250mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 500mm×1000mm×90mm | ||||||||||
| 6 | Module Resolution | 64×64 | ||||||||||
| 7 | Cabinet Resolution | 128×256 | ||||||||||
| 8 | Driving Method | 1/16 Scan | ||||||||||
| 9 | Driving IC | MBI5124 or ICN 2038S | ||||||||||
| 10 | Brightness | 1000cd/㎡ | ||||||||||
| 11 | Contrast | 1000:1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜600W | ||||||||||
| 14 | Average power: ＜200W | |||||||||||
| 15 | Module Weight | 0.52kg | ||||||||||
| 16 | Color Temperature | 9500K—11500K | ||||||||||
| 17 | Horizontal Viewing Angle | 160º | ||||||||||
| 18 | Vertical Viewing Angle | 120º | ||||||||||
| 19 | Signal Processing | 10 or 14bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >1920Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 110-220V | ||||||||||
| 36 | Protection | dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Service and Guarantees
Services Before-sale:Set a special telephone line to resolve the confusion from clients and supply free technology services by telephone.Consider the demands of clients carefully , study the situation of the installation condition , Team up the related staff and workers promptly , give clients design program details to help them choose the products which they wanted as soon as possible
Service In - sales :Try the best to meet the reasonable demands by clients Provisional changed .Keep close touch with the clients during the period if installation .Cooperate friendly with the clients, satisfy the clients with the best quality of led display .
Service After-sale:Normal products have one year guarantee, and whole life maintenance, free charges . we just charge materials cost only if products out off guarantee.You can down load and upgrade the related operating software of Led display freely from our company website , so as to resolve the problems when you use our led display .Check the quality of appliance , do maintenance job and ask good suggestions form clients on a regular time schedule .
