Full Color Indoor Rental Led Screen P3.91 Seamless Installation Die Casting Aluminum Cabinet

Full Color Indoor Rental Led Screen P3.91 Seamless Installation Die Casting Aluminum Cabinet

Product Details:

Place of Origin: Made in China
Brand Name: Vegoo
Certification: CE/ROHS/FCC
Model Number: VG-RD-P3.91-500-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 sq.m
Packaging Details: Flight case
Delivery Time: 15-20 days
Supply Ability: 3000sq.m/month
Get Best Price Contact Now

Detail Information

Product Name: P3.91 Indoor LED Display Pixel Pitch: 3.91mm
Pixel Configuration: 1R1G1B/SMD2121 Black Lamp Density: 65,536 Pixel/m2
Moduel Size(L×W)mm: 250mm×250mm Cabinet Size(L×W×H)mm: 500mm×500/1000mm
Brightness: 1000cd/㎡ Contrast: 1000:1
Material: Nation Star SMD2020 Usage: Indoor Portable
Application: Stage,conference,concert,live Events,TV Station,aireport Station,advertising Video Wall Service: Credible Quality Manufacturer
Color: Cob LED Full Color Certificate: CE/ROHS/FCC
High Light:

stage rental led display

,

led video wall rental

Product Description



P3.91 indoor rental LED display seamless installation die casting aluminum cabinet 500x500,1000mm nation star SMD2121









Application:
Indoor P3.91 500x500mm Nation Star SMD2020 High Refresh Rate 3840Hz 8kg Wall Mounted Cabinet are the most welcomed indoor rental led display, widely used for stage, events, live broadcasting etc.
Features and Advantages:



Quick Assembly and Disassebmly

Unique fast lock design, the upper and lower cabinet connection can be completed in only one second



Adjustable Angle Lock, Flexible Stage Design

Arc-shaped connection available, with angle adjustment device, concave and convex 10 degrees of adjustment to meet the different arc connection applications.

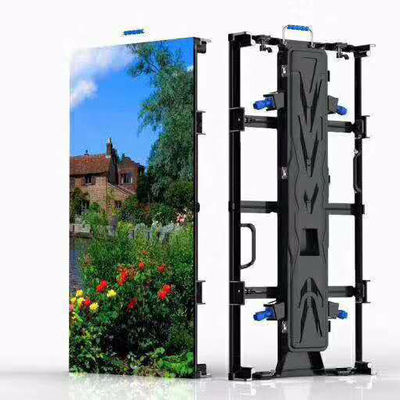

Slim and Light Weight Die Casting Aluminum Cabinet Design

Weight only 8kg, easy to handle. Die cast aluminum cabinet, perfect splicing without gaps. Fast locking makes assembly and disassembly extremely easy. High-quality plugs ensure reliability.

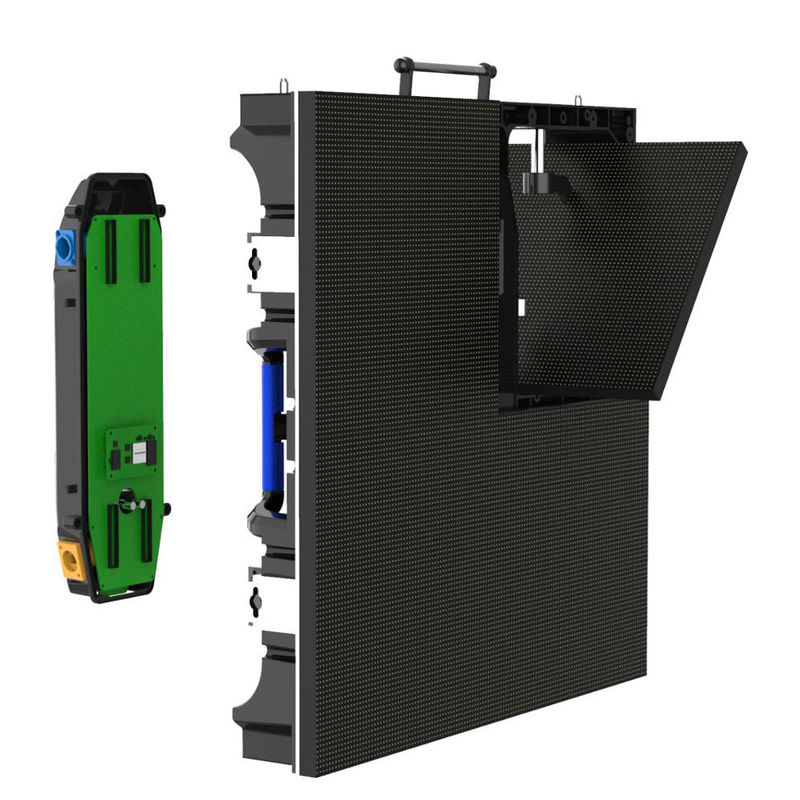

Front Maintenance Magnetic Module

Snap-in quick disassembly design, maintenance and installation is more efficient and convenient.

Absolute 4K HD Display Visual Effects

High contrast 3000:1 and HD 4K perfect picture quality, bring you absolute visual enjoyment.
easily attract attention, greatly enhance the value of advertising.





P3.91 Indoor Full color LED Display Specification



NO: Product Name Specification
1 Pixel Pitch 3.91mm
2 Pixel Configuration 1R1G1B/SMD2121 Black lamp
3 Density 65,536 pixel/m2
4 Moduel Size(L×W)mm 250mm×250mm
5 Cabinet Size(L×W×H)mm 500mm×1000mm×90mm
6 Module Resolution 64×64
7 Cabinet Resolution 128×256
8 Driving Method 1/16 Scan
9 Driving IC MBI5124 or ICN 2038S
10 Brightness 1000cd/㎡
11 Contrast 1000:1
12 Brightness Adjustment Auto and Manual
13 Power Consumption Max Power:<600W
14 Average power: <200W
15 Module Weight 0.52kg
16 Color Temperature 9500K—11500K
17 Horizontal Viewing Angle 160º
18 Vertical Viewing Angle 120º
19 Signal Processing 10 or 14bit
20 Grey Processing 1024×1024×1024
16834×16834×16834
21 Control Distance cable100m,Multimode500m,Single mode 2km
22 Frame Frequency 65 Hz
23 Refresh Rate >1920Hz
24 Control Mode Synchronous/Asynchronous
25 The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
26 Users can choose the recommended curve or adjust it based on actual situation
27 MTBF >50000 hours
28 Life Span 100,000 Hours
29 Operating Temperature Working : -20 - 65 ℃
30 Storage : -40 - 85 ℃
31 Environment Temperature -30℃ to 60℃; humidity Rh10% to 95%
32 Remote Control Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
33 Self-checking Technique Self-inspection, communication test, power test, temperature monitoring (Be customized)
34 Operating System Platform WindowsNT,Windows2000,WindowsXP,Windows7
35 Power Supply AC 110-220V
36 Protection dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)





Service



Services Before-sale:

Set a special telephone line to resolve the confusion from clients and supply free technology services by telephone.Consider the demands of clients carefully , study the situation of the installation condition , Team up the related staff and workers promptly , give clients design program details to help them choose the products which they wanted as soon as possible



Service In - sales :

Try the best to meet the reasonable demands by clients Provisional changed .Keep close touch with the clients during the period if installation .Cooperate friendly with the clients, satisfy the clients with the best quality of led display .
