Outdoor P3 Led Display Screen Rental Signs Lamp Post HD 1000cd/㎡ Brightness
Product Details:
| Place of Origin: | Made in China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC |
| Model Number: | VG-RD 3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 sq.m |
|---|---|
| Packaging Details: | Flight case |
| Delivery Time: | 10-15 days |
| Supply Ability: | 3000sq.m/month |
|
Detail Information |
|||
| Discription: | P3 Indoor SMD LED Screen | Pixel Pitch: | 3mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/SMD2121 | Density: | 111,111pixel/m2 |
| Moduel Size(L×W)mm: | 192×192mm | Cabinet Size(L×W×H)mm: | 576×576×90mm |
| Brightness: | 1000cd/㎡ | Contrast: | 1000:1 |
| High Light: | stage rental led display,outdoor rental led display |
||
Product Description
Rental LED display

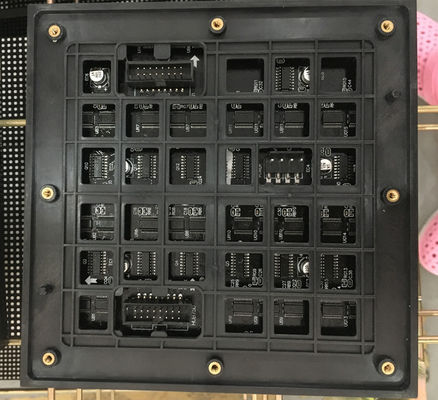

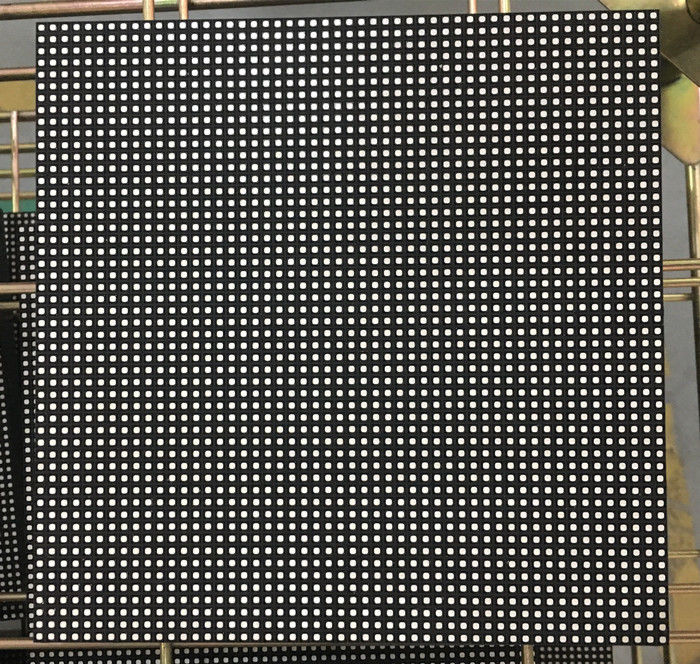

HD Outdoor P3 LED Display Led Signs lamp-post with 192×192mm NationStar 1921
VEGOO LED PRODUCTS FEATURES
- Front service System
- 100.000 Lifespan
- No Ghosting
- Magnetic Modules
- High Refresh Rate
- High View Angles
- High Contrast
- Extremely Flat Module
- Black LED Smd
- Flexible Size Panel / Cabinet
Description:
1, Screen cabinet is made of die-casting aluminum material, small consumption.
2, Light weight, cabinetis less than 7 kg; easy installation.
3, With bullet-shaped spring lock, the module can be quickly removed and easy to maintain.
4. No fan design,Noise-free power supply.
5, Simply perfect appearance, cabinet is adopted die casting molding, high precision and can be realized fine adjustment.
Application Fields
High brightness indoor P2.5 P3 P3.91 P4 P4.8 P6 hire high definition rental led display
--- Indoor SMD 3 IN 1 Full color Die-casting Cabinet LED display series
Fi is a die-casting aluminum HD led screen, with high durability and vivid performance, perfectly suiting for TV studios, live shows, concerts and outdoor rental events.
Display effect & Successful case
P3 outdoor removable LED video wall panel for theater screen
Flexible Cabinet
P3 outdoor Full color LED Display Specification
Protection degree
Front IP65,RearIP54
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 3mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
| 3 | Density | 111,111pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 192mm×192mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 576mm×576mm×90mm | ||||||||||
| 6 | Module Resolution | 64×64 | ||||||||||
| 7 | Cabinet Resolution | 192×192 | ||||||||||
| 8 | Driving Method | 1/16 Scan | ||||||||||
| 9 | Driving IC | MBI5124 or ICN 2038S | ||||||||||
| 10 | Brightness | 1000cd/㎡ | ||||||||||
| 11 | Contrast | 1000:1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜1100W | ||||||||||
| 14 | Average power: ＜440W | |||||||||||
| 15 | Module Weight | 0.25kg | ||||||||||
| 16 | Color Temperature | 9500K—11500K | ||||||||||
| 17 | Horizontal Viewing Angle | 140º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 10 or 14bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >1920Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC110-220V | ||||||||||
| 36 | Protection | dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Our products WeiGu LED displays in the rapidly expanding Chinese market at the same time, has towards the international market, and the share of export gradually increasing. (all of our products passed RoHS/CCC/CE/EMC/ISO /FCC certifications. The LED application product variety is complete which researched and manufactured by our company, the product structure diversifying. Including: Cover the indoor and outdoor series. Such like: 1. Rental display; 2. Advertising LED display; 3. LED TV; 4. Full color anomalous display etc. Products are widely used in various public places: Such as commercial plaza, government agency, stadiums, transport facilities, financial institutions, theater, performance hall, etc. Our products are exported to the United States, Europe, southeast Asia and other countries, Hong Kong, Taiwan and other regions. With international standards of production process, strictly control product quality and won the customer consistent high praise.
Through the ways like cooperation with local customers, set up offices in local, WeiGu LED have set up a batch of after-sales service which can rapidly solve problems. For rapid response, to quickly solve customer problem, personalized solutions. Make the products and services reflect personalized, comprehensive, long cycle, less defects. WeiGu LED is located in Shiyan Town, Baoan district, Shenzhen. Positive response national green environmental protection, energy conservation and emission reduction policy in developing process. We continue to focus on the LED display, striving to become the world's highest cost-effective LED supplier, the solution to the overall service, with the attitude of a new high-speed development in LED display industry.
