Fixed HD LED Display Screen Board Indoor 3mm Pixel Pitch 192×192mm Easy Installation

China Fixed HD LED Display Screen Board Indoor 3mm Pixel Pitch 192×192mm Easy Installation supplier
Fixed HD LED Display Screen Board Indoor 3mm Pixel Pitch 192×192mm Easy Installation supplier Fixed HD LED Display Screen Board Indoor 3mm Pixel Pitch 192×192mm Easy Installation supplier Fixed HD LED Display Screen Board Indoor 3mm Pixel Pitch 192×192mm Easy Installation supplier Fixed HD LED Display Screen Board Indoor 3mm Pixel Pitch 192×192mm Easy Installation supplier

Large Image :  Fixed HD LED Display Screen Board Indoor 3mm Pixel Pitch 192×192mm Easy Installation

Product Details:

Place of Origin: China
Brand Name: Vegoo
Certification: CE/ROHS/FCC
Model Number: VG-RD 3

Payment & Shipping Terms:

Minimum Order Quantity: 1 sq.m
Packaging Details: Flight case
Delivery Time: 10-15 days
Supply Ability: 3000sq.m/month
Detailed Product Description
Discription: P3 Indoor Fixed Screen Board Pixel Pitch: 3mm
Pixel Configuration: 1R1G1B/SMD2121 Black Lamp Density: 111,111pixel/m2
Moduel Size(L×W)mm: 192mm×192mm Cabinet Size(L×W×H)mm: 576mm×576mm×90mm
Brightness: 1000cd/㎡ Contrast: 1000:1
High Light:

high definition led display


high resolution led display

HD LED display

P3 Indoor fixed LED Display screen board 192mm×192mm

Product Introduction


Indoor led billboard can display colorful static and animated images, it supports VGA display modes, and can display television programs, VCD or DVD, live programs, with excellent displaying effects, high reliability and system stability, with its good color mixture performance, large angle, high definition.

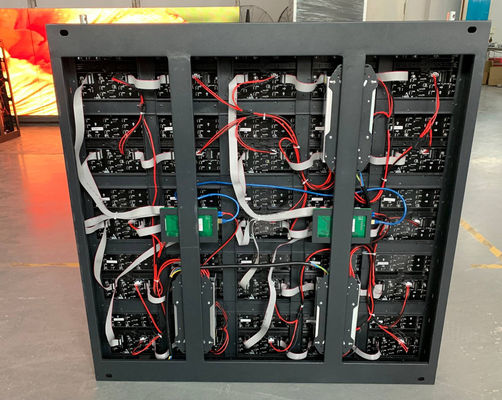

1, Screen cabinet is made of die-casting aluminum material,less consumption design.

2, Light weight, the weight of the cabinetis less than 7 kg; easy installation.

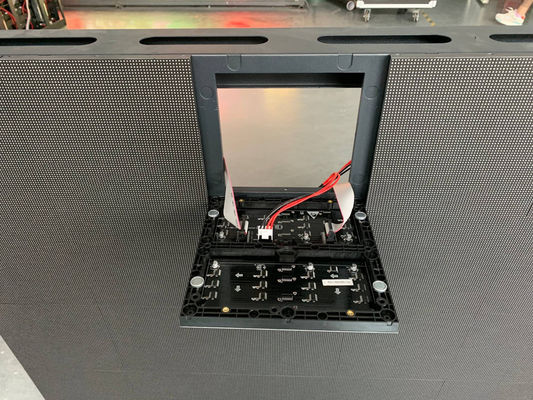

3, With bullet-shaped spring lock, the module can be quickly removed and easy to maintain.

4. No fan design,Noise-free power supply.

5, Simply perfect appearance, cabinet is adopted die casting molding, high precision and can be realized fine adjustment.




Application Fields


High brightness indoor P2.5 P3 P3.91 P4 P4.8 P6 high quality rental led display

--- Indoor SMD 3 IN 1 Full color Die-casting Cabinet LED display series


Fi is a die-casting aluminum HD led screen, with high durability and vivid performance, perfectly suiting for TV studios, live shows, concerts and indoor rental events.

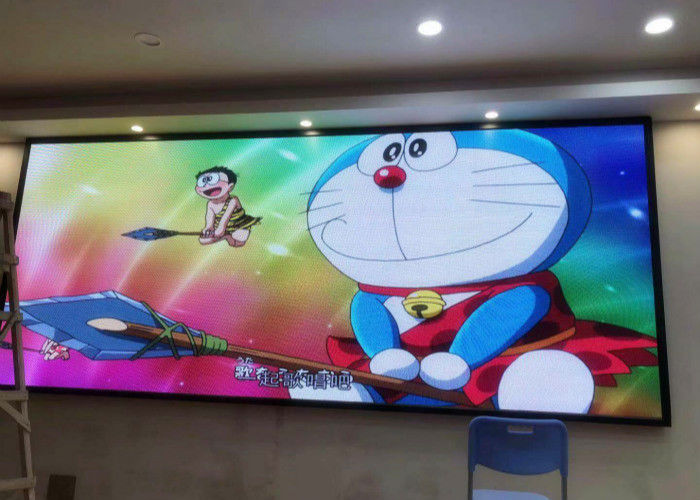

Display effect & Successful case


P3 Indoor removable LED video wall panel for theater screen

Optional Cabinet choices



P3 Indoor Full color LED Display Specification


NO: Product Name Specification
1 Pixel Pitch 3mm
2 Pixel Configuration 1R1G1B/SMD2121 Black lamp
3 Density 111,111pixel/m2
4 Moduel Size(L×W)mm 192mm×192mm
5 Cabinet Size(L×W×H)mm 576mm×576mm×90mm
6 Module Resolution 64×64
7 Cabinet Resolution 192×192
8 Driving Method 1/16 Scan
9 Driving IC MBI5124 or ICN 2038S
10 Brightness 1000cd/㎡
11 Contrast 1000:1
12 Brightness Adjustment Auto and Manual
13 Power Consumption Max Power:<1100W
14 Average power: <440W
15 Module Weight 0.25kg
16 Color Temperature 9500K—11500K
17 Horizontal Viewing Angle 140º
18 Vertical Viewing Angle 140º
19 Signal Processing 10 or 14bit
20 Grey Processing 1024×1024×1024
21 Control Distance cable100m,Multimode500m,Single mode 2km
22 Frame Frequency 65 Hz
23 Refresh Rate >1920Hz
24 Control Mode Synchronous/Asynchronous
25 The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
26 Users can choose the recommended curve or adjust it based on actual situation
27 MTBF >50000 hours
28 Life Span 100,000 Hours
29 Operating Temperature Working : -20 - 65 ℃
30 Storage : -40 - 85 ℃
31 Environment Temperature -30℃ to 60℃; humidity Rh10% to 95%
32 Remote Control Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
33 Self-checking Technique Self-inspection, communication test, power test, temperature monitoring (Be customized)
34 Operating System Platform WindowsNT,Windows2000,WindowsXP,Windows7
35 Power Supply AC110-220V
36 Protection dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)


Our products WeiGu LED displays in the rapidly expanding Chinese market at the same time, has towards the international market, and the share of export gradually increasing. (all of our products passed RoHS/CCC/CE/EMC/ISO /FCC certifications. The LED application product variety is complete which researched and manufactured by our company, the product structure diversifying. Including: Cover the indoor and outdoor series. Such like: 1. Rental display; 2. Advertising LED display; 3. LED TV; 4. Full color anomalous display etc. Products are widely used in various public places: Such as commercial plaza, government agency, stadiums, transport facilities, financial institutions, theater, performance hall, etc. Our products are exported to the United States, Europe, southeast Asia and other countries, Hong Kong, Taiwan and other regions. With international standards of production process, strictly control product quality and won the customer consistent high praise.

Through the ways like cooperation with local customers, set up offices in local, WeiGu LED have set up a batch of after-sales service which can rapidly solve problems. For rapid response, to quickly solve customer problem, personalized solutions. Make the products and services reflect personalized, comprehensive, long cycle, less defects. WeiGu LED is located in Shiyan Town, Baoan district, Shenzhen. Positive response national green environmental protection, energy conservation and emission reduction policy in developing process. We continue to focus on the LED display, striving to become the world's highest cost-effective LED supplier, the solution to the overall service, with the attitude of a new high-speed development in LED display industry.


Our Services:


1. Your inquiry related to our products or prices will be replied in 24 hours.

2. Professional foreign trade salesperson will answer your any questions carefully and patiently before you placing orders.

3. OEM&ODM services are available, any your customized screen we can help you to design and put into product.

4. Protection of your sales area, ideas of design and all your private information.

5. High-level aging test and serious quality control system, lead to top quality and reasonable prices.

6. Perfect after-sale service system, let buyers to purchase, and use it at ease.
