P8 SMD LED Module Outdoor Full Color LED Display 1R1G1B / SMD3535

China P8 SMD LED Module Outdoor Full Color LED Display 1R1G1B / SMD3535 supplier
P8 SMD LED Module Outdoor Full Color LED Display 1R1G1B / SMD3535 supplier P8 SMD LED Module Outdoor Full Color LED Display 1R1G1B / SMD3535 supplier

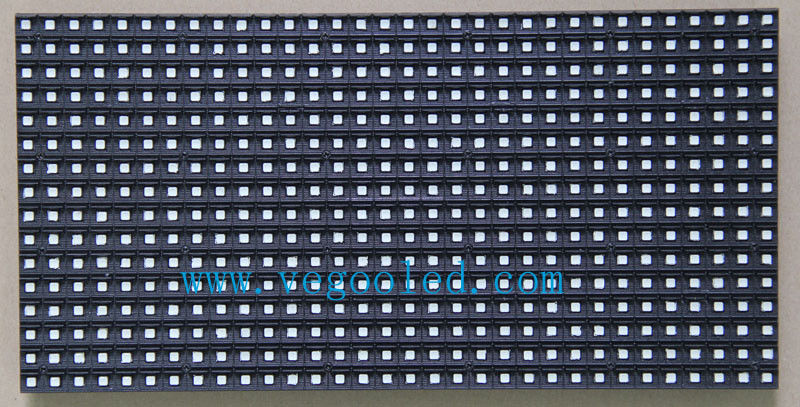

Large Image :  P8 SMD LED Module Outdoor Full Color LED Display 1R1G1B / SMD3535

Product Details:

Place of Origin: China
Brand Name: Vgeoo
Certification: Ce/ROHS/FCC/
Model Number: VG-RD P8

Payment & Shipping Terms:

Minimum Order Quantity: 1 Sq.m
Packaging Details: Plywood case / Flight case / Carton box
Delivery Time: 7 days
Detailed Product Description
Product Name: P8 Outdoor Full Color LED Display Pixel Pitch: 8mm
Pixel Configuration: 1R1G1B/SMD3535 Density: 15,625 Pixel/m2
Moduel Size(L×W)mm: 320mm×160mm Cabinet Size(L×W×H)mm: 960mm×960mm×130mm
Module Resolution: 40×20 Cabinet Resolution: 120×120
High Light:

led display module


led screen module


P8 Outdoor Full color LED Display




1. Preeminent effects: Clear and stable pictures without distortion and disturbance.
2. High quality: adopting first-class chips and wafers imported from abroad.
3. Flexible form: continuity, overlying, combination of dynamic and static playing, various effects include rolling moving, typewriting, gradual changing and so on.
4. Distribution scanning and Modulation design technique.
5. Stable and reliable system.
6. Supports many kinds of patterns.
7. Easy to operate.
8. Modular design, random combination sizes as you want.



P8 Outdoor Full color LED Display Specification


Product Name Specification
Pixel Pitch 8mm
Pixel Configuration 1R1G1B/SMD3535
Density 15,625 pixel/m2
Moduel Size(L×W)mm 320mm×160mm
Cabinet Size(L×W×H)mm 960mm×960mm×130mm
Module Resolution 40×20
Cabinet Resolution 120×120
Driving Method 1/ 5 Scan
Driving IC MBI5124 or ICN 2038S
Brightness 5500/㎡
Contrast 1000:1
Brightness Adjustment Auto and Manual
Power Consumption Max Power:600W
Average power: <250W
Module Weight 0.6kg
Color Temperature 9500K—11500K
Horizontal Viewing Angle 140º
Vertical Viewing Angle 140º
Signal Processing 10 or 14bit
Grey Processing 1024×1024×1024
Control Distance cable100m,Multimode500m,Single mode 2km
Frame Frequency 65 Hz
Refresh Rate >1920Hz
Control Mode Synchronous/Asynchronous
The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
Users can choose the recommended curve or adjust it based on actual situation
MTBF >50000 hours
Life Span 100,000 Hours
Operating Temperature Working : -20 - 65 ℃
Storage : -40 - 85 ℃
Environment Temperature -30℃ to 60℃; humidity Rh10% to 95%
Remote Control Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
Self-checking Technique Self-inspection, communication test, power test, temperature monitoring (Be customized)
Operating System Platform WindowsNT,Windows2000,WindowsXP,Windows7
Power Supply AC 85-264V
Protection waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)
