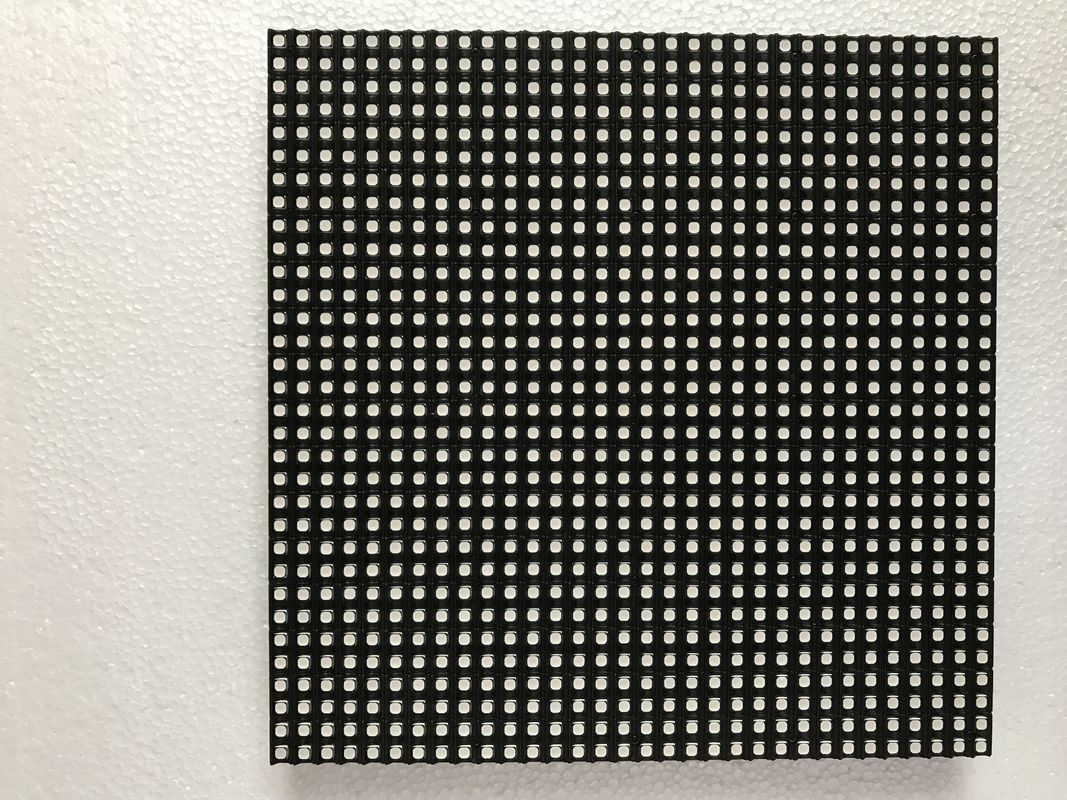

P4.8 RGB Indoor Full Color Led Video Module With 140º Viewing Angle
Product Details:
| Place of Origin: | China |
| Brand Name: | Vgeoo |
| Certification: | Ce/ROHS/FCC/ |
| Model Number: | VG-RD P4.8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Sq.m |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 7 days |
|
Detail Information |
|||
| Product Name: | Indoor Full Color LED Display | Pixel Pitch: | 4.8mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/SMD3528 Black Lamp | Density: | 43,200 Pixel/m2 |
| Moduel Size(L×W)mm: | 288mm×288mm | Driving IC: | MBI5124 |
| Brightness: | 1200cd/㎡ | Contrast: | 1000:1 |
| High Light: | led screen module,led video module |
||
Product Description
P4.8 Indoor Full color LED Display 43,200 pixel/m2
Description:
Color Uniformity: The LED display would present uniform color at all times with low power consumption and low temperature rise.
No Blackout during Use: Reliable communication-level power supply and rational power distribution system lead to stable and safe operation.
No Black Screen during Use: Constituted by loop transmission, intelligent switch, anti-hacker security and fault alarm, the most reliable data transmission mode is incorporated internally.
Safe Maintenance: It supports hot swapping, which is more safe and convenient for maintenance personnel.
P4.8 Indoor Full color LED Display Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 4.8mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD3528 Black lamp | ||||||||||
| Density | 43,200 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 288mm×288mm | ||||||||||
| Cabinet Size(L×W×H)mm | 576mm×576mm×90mm | ||||||||||
| Module Resolution | 60×60 | ||||||||||
| Cabinet Resolution | 120×120 | ||||||||||
| Driving Method | 1/15 Scan | ||||||||||
| Driving IC | MBI5124 | ||||||||||
| Brightness | 1200cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜400W | ||||||||||
| Average power: ＜150W | |||||||||||
| Module Weight | 0.75kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-220V | ||||||||||
| Protection | dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
