High Reliability SMD LED Module P16 Outdoor For Government Plazas
Product Details:
| Place of Origin: | China |
| Brand Name: | Vgeoo |
| Certification: | Ce/ROHS/FCC/ |
| Model Number: | VG-RD P16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Sq.m |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 7 days |
|
Detail Information |
|||
| Product Name: | P16 Outdoor Full Color LED Display | Pixel Pitch: | 16mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/DIP 546 | Moduel Size(L×W)mm: | 256mm×256mm |
| Cabinet Resolution: | 64×64 | Driving IC: | MBI5124 |
| Brightness: | 8500cd/㎡ | Contrast: | 1000:1 |
| High Light: | led display module,led video module |
||
Product Description

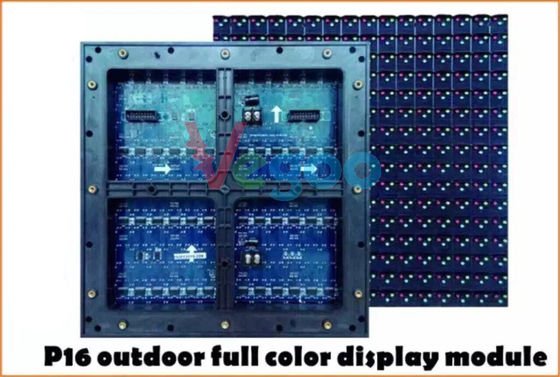

High reliability P16 Outdoor Full color LED Display
Description:
Good effect: the products adopt non-linear calibration technology to realize clearer images with stronger feeling of layers.
High reliability: the products adopt the static scanning technology and the module design technology to offer higher reliability and stability.
Diversified display modes: the products support multiple display modes.
Easy operation: the products adopt popular video playing software to facilitate system operations.
Available range:
government plazas, recreational plazas, large-scale entertainment plazas, busy business and commercial centers, ad information boards, commercial streets, and railway stations etc..
P16 Outdoor Full color LED Display Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 16mm | ||||||||||
| Pixel Configuration | 1R1G1B/DIP 546 | ||||||||||
| Density | 3,906 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 256mm×256mm | ||||||||||
| Cabinet Size(L×W×H)mm | 1024mm×1024mm×130mm | ||||||||||
| Module Resolution | 16×16 | ||||||||||
| Cabinet Resolution | 64×64 | ||||||||||
| Driving Method | Static | ||||||||||
| Driving IC | MBI5124 | ||||||||||
| Brightness | 8500cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power: ＜1200W | ||||||||||
| Average power: ＜550W | |||||||||||
| Module Weight | 0.8kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-220V | ||||||||||
| Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Our service
1. Your inquiry related to our products or price will be replied in 2hrs
2. OEM customized products
3. 2 years warranty
4. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
5.Free technician training..
6.Top quality+Reasonable price+Responsible After Service=Successful & Win
