P8 Outdoor Led Screen Led Display Board Die Cast Aluminum Cabinet

China P8 Outdoor Led Screen Led Display Board Die Cast Aluminum Cabinet supplier
P8 Outdoor Led Screen Led Display Board Die Cast Aluminum Cabinet supplier P8 Outdoor Led Screen Led Display Board Die Cast Aluminum Cabinet supplier

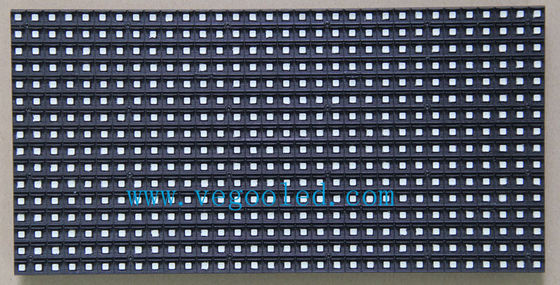

Large Image :  P8 Outdoor Led Screen Led Display Board Die Cast Aluminum Cabinet

Product Details:

Place of Origin: China
Brand Name: Vgeoo
Certification: Ce/ROHS/FCC/
Model Number: VG-RD P8

Payment & Shipping Terms:

Minimum Order Quantity: 1 Sq.m
Packaging Details: Plywood case / Flight case / Carton box
Delivery Time: 7 days
Detailed Product Description
Product Name: P8 Outdoor Full Color LED Display Pixel Pitch: 8mm
Pixel Configuration: 1R1G1B/SMD3535 Density: 15,625 Pixel/m2
Moduel Size(L×W)mm: 320mm×160mm Cabinet Size(L×W×H)mm: 960mm×960mm×130mm
Module Resolution: 40×20 Driving IC: MBI5124 Or ICN 2038S
Brightness: 5500/㎡ Contrast: 1000:1
High Light:

led display module

,

led video module



P8 Outdoor Full color LED Display Die cast aluminum cabinet,





Excellent Display Effect



HD8mm has exceptional display quality even when brightness is reduced to 20%.The so-called seamless, thinnest, super-thin and barely seamless marketing can never change the fact that there are still gaps between cabinets, while Chipshow’s fast-connector makes the real seamless splicing possible.





Good Uniformity



Perfect replacement for LCD display.Die cast aluminum cabinet, guarantee you a flat and seamless screen.
Good uniformity. Dot-to-dot correction technology provide you pure image with great gradation.





P8 Outdoor Full color LED Display Specification



NO: Product Name Specification
1 Pixel Pitch 8mm
2 Pixel Configuration 1R1G1B/SMD3535
3 Density 15,625 pixel/m2
4 Moduel Size(L×W)mm 320mm×160mm
5 Cabinet Size(L×W×H)mm 960mm×960mm×130mm
6 Module Resolution 40×20
7 Cabinet Resolution 120×120
8 Driving Method 1/ 5 Scan
9 Driving IC MBI5124 or ICN 2038S
10 Brightness 5500/㎡
11 Contrast 1000:1
12 Brightness Adjustment Auto and Manual
13 Power Consumption Max Power:600W
14 Average power: <250W
15 Module Weight 0.6kg
16 Color Temperature 9500K—11500K
17 Horizontal Viewing Angle 140º
18 Vertical Viewing Angle 140º
19 Signal Processing 10 or 14bit
20 Grey Processing 1024×1024×1024
16834×16834×16834
21 Control Distance cable100m,Multimode500m,Single mode 2km
22 Frame Frequency 65 Hz
23 Refresh Rate >1920Hz
24 Control Mode Synchronous/Asynchronous
25 The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
26 Users can choose the recommended curve or adjust it based on actual situation
27 MTBF >50000 hours
28 Life Span 100,000 Hours
29 Operating Temperature Working : -20 - 65 ℃
30 Storage : -40 - 85 ℃
31 Environment Temperature -30℃ to 60℃; humidity Rh10% to 95%
32 Remote Control Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
33 Self-checking Technique Self-inspection, communication test, power test, temperature monitoring (Be customized)
34 Operating System Platform WindowsNT,Windows2000,WindowsXP,Windows7
35 Power Supply AC 85-264V
36 Protection waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)
