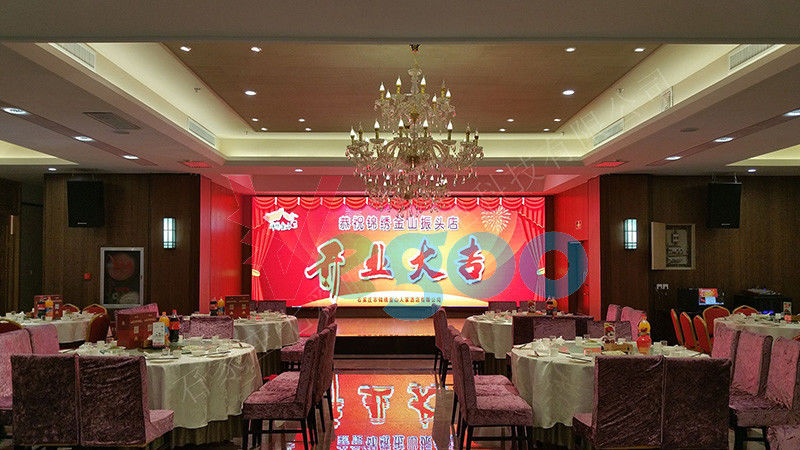

Die Casting Aluminium P2.5 Indoor Full Color LED Display For Wedding Ceremony
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-HD 2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Sq.m |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 15 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 1500Sqm/months |
|
Detail Information |
|||
| Product Name: | P2.5 Indoor Full Color LED Display | Pixel Pitch: | 2.5mm |
|---|---|---|---|
| Density: | 160,000 Pixel/m2 | Moduel Size(L×W)mm: | 160mm×160mm |
| Driving Method: | 1/32 Scan | Driving IC: | MBI5124' |
| High Light: | high resolution led display,commercial advertising led display |
||
Product Description
Description:
• Die-casting aluminium or standard iron cabinet available for different requirement and cost control, easy installation for indoor rental and fixed.
• High gray, high refresh and high contrast ensure images more clear and vivid.
• Seamless connetion installation, as easy as you wish to install the whole screen.
• Lowest radiation, lowest harm to body and highest stability of signal transmission.
• Excellent cooling effect, operationg without any noise.
• Lightweight, thin design, low transportation cost and installation cost.
P2.5 Indoor Full color LED Display Specification
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 2.5mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
| 3 | Density | 160,000 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 160mm×160mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 480mm×480mm×90mm | ||||||||||
| 6 | Module Resolution | 64×64 | ||||||||||
| 7 | Cabinet Resolution | 192×192 | ||||||||||
| 8 | Driving Method | 1/32 Scan | ||||||||||
| 9 | Driving IC | MBI5124 | ||||||||||
| 10 | Brightness | 1000cd/㎡ | ||||||||||
| 11 | Contrast | 1000:1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜1200W | ||||||||||
| 14 | Average power: ＜480W | |||||||||||
| 15 | Module Weight | 0.5kg | ||||||||||
| 16 | Color Temperature | 9500K—11500K | ||||||||||
| 17 | Horizontal Viewing Angle | 140º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 10 or 14bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >1920Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 110-220V | ||||||||||
| 36 | Protection | IP 41 | ||||||||||
Customer Service
1) Guarantee Time: Within one year after delivery form factory
2) Maintenance Coverage : LED modules,Power supply ,Control system and other accessories ( This warranty exclude accessories purchasing form other factory )
3) Maintenance Mode :
By returned maintenance , through express or by other way
4) Response time for maintenance :
1. Return mode: after receiving the returned products, we will repaired them within 24 hours and send them back to the user;
2. Telephone or internet mode: we will contact user within 2 hours after getting informations and give solution within 8 hours;
3. On-site mode: ( only for user inside china ) after receiving maintenance request , we will respond within 48 hours to user in Guangdong province; 72 hours to user outside Guangdong province, In the case of some special conditions , problems could be solved on the basis of friendly negotiation between two parties.
