Waterproof Dustproof P5 Outdoor Led Video Display With 140º Viewing Angle
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-RD 6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 sq.m |
|---|---|
| Packaging Details: | Flight case |
| Delivery Time: | 10-15 days |
| Supply Ability: | 3000sq.m/month |
|
Detail Information |
|||
| Product Name: | P5 Outdoor Full Color LED Display | Pixel Pitch: | 5mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/SMD2727 | Density: | 40,000 Pixel/m2 |
| Moduel Size(L×W)mm: | 320mm×160mm | Cabinet Size(L×W×H)mm: | 640mm×640mm×130mm |
| Brightness: | 6000cd/㎡ | Contrast: | 1000:1 |
| High Light: | stage rental led display,led video wall rental |
||
Product Description
waterproof dustproof P5 Outdoor Full color LED Display 1R1G1B/SMD2727
Quick Detail:
- Floor LED screen can bear 1 ton weight
- IP65 protection level
- ISO9001 production management system

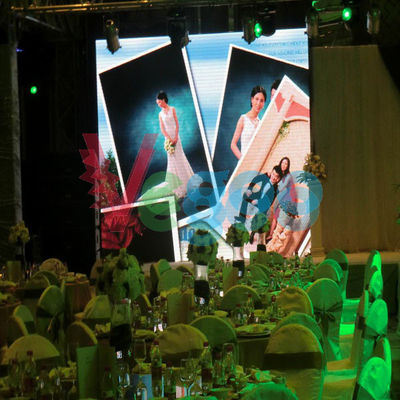

- It can be used for any rental application of stage show:such as main screen ,side screen ,floor screen ,arc screen stage design etc.
P5 Outdoor Full color LED Display Specification
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 5mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD2727 | ||||||||||
| 3 | Density | 40,000 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 320mm×160mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 640mm×640mm×130mm | ||||||||||
| 6 | Module Resolution | 64×32 | ||||||||||
| 7 | Cabinet Resolution | 192×192 | ||||||||||
| 8 | Driving Method | 1/8 Scan | ||||||||||
| 9 | Driving IC | MBI5124 or ICN 2038S | ||||||||||
| 10 | Brightness | 6000cd/㎡ | ||||||||||
| 11 | Contrast | 1000:1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜750W | ||||||||||
| 14 | Average power: ＜225W | |||||||||||
| 15 | Module Weight | 0.28kg | ||||||||||
| 16 | Color Temperature | 9500K—11500K | ||||||||||
| 17 | Horizontal Viewing Angle | 140º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 10 or 14bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >1920Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 85-264V | ||||||||||
| 36 | Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Company Introduction
Through the ways like cooperation with local customers, set up offices in local, WeiGu LED have set up a batch of after-sales service which can rapidly solve problems. For rapid response, to quickly solve customer problem, personalized solutions. Make the products and services reflect personalized, comprehensive, long cycle, less defects. WeiGu LED is located in Shiyan Town, Baoan district, Shenzhen. Positive response national green environmental protection, energy conservation and emission reduction policy in developing process. We continue to focus on the LED display, striving to become the world's highest cost-effective LED supplier, the solution to the overall service, with the attitude of a new high-speed development in LED display industry.
