P3.91 Outdoor Full Color Rental LED Display With 140º Wide Viewing Angle
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-RD 3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 sq.m |
|---|---|
| Packaging Details: | Flight case |
| Delivery Time: | 10-15 days |
| Supply Ability: | 3000sq.m/month |
|
Detail Information |
|||
| Product Name: | P3.91 Outdoor Full Color LED Display | Pixel Pitch: | 3.91mm |
|---|---|---|---|
| Density: | 65,536 Pixel/m2 | Moduel Size(L×W)mm: | 250mm×250mm |
| Cabinet Size(L×W×H)mm: | 500mm×1000mm×90mm | Brightness: | 4500cd/㎡ |
| High Light: | outdoor rental led display,led video wall rental |
||
Product Description
Wide viewing angle P3.91 Outdoor Full color LED Display 250mm×250mm
Description:
1) Wide viewing angle: Viview led display show clear pictures or image without mosaics even when audiences see it from a small viewing angle;
2) Adjustable brightness: Viview LED screen brightness can be adjusted automatic and manual according to environment light;
3) Good color blending: Display clear, exquisite, nature color video even at close distance;
4) Wide range of display content: Viview led wall can easily to display txt documents, doc documents, pictures (BMP/JPG/GIF/PCX…..) and video (MPG/MPEG/MPV/MPA/AVE/VCD/SWF/RM/RA/RMJ/ASF)

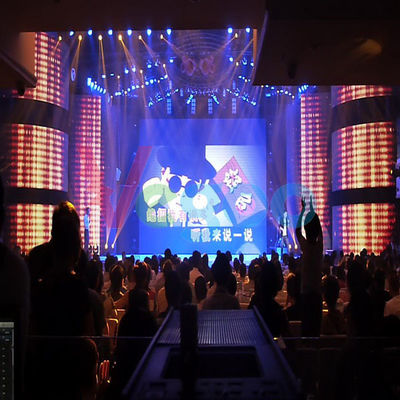

Viview led display usage range: Governmental plazas, Large-scale entertainment plazas, business and commercial centers, playground, station, airport and so on.
P3.91 Outdoor Full color LED Display Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 3.91mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD2525 | ||||||||||
| Density | 65,536 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 250mm×250mm | ||||||||||
| Cabinet Size(L×W×H)mm | 500mm×1000mm×90mm | ||||||||||
| Module Resolution | 64×64 | ||||||||||
| Cabinet Resolution | 128×256 | ||||||||||
| Driving Method | 1/16 Scan | ||||||||||
| Driving IC | MBI5124 | ||||||||||
| Brightness | 4500cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜480W | ||||||||||
| Average power: ＜150W | |||||||||||
| Module Weight | 0.663kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-220V | ||||||||||
| Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Upgrade Service :
Unschedule,we will upgrade our system of products without extra formal; we'll do our best to help users with upgrading ; the following conditions are excluded by this warranty : Without approved documents;Series code on products having been torn or changed ;Damage caused by lighting strike or electrical problems;Risks caused by irresistible incidents includes all kinds of natural disasters, fire, wars, policy changes, and some other human error accidents. Users or third party refit or repaired by themselves without VEGOO's permission ;Water intrusion or corrosion caused by improper keeping or operating ;Over period of free maintenance .
Products exchanged or returned :
we supply our products strictly according to the contract list , if the quantity or specification doesn't meet our contract list, the buyer can give objections within 3 days after received the products , we'll exchanged after company confirmed.
Casual damage situation:
We can provide corresponding fittings without extra fee when improper operation or unexpected artificial damaged arise .
Over Guarantee time :
You only have to pay maintenance cost such as labor costs , spare parts costs and round-trip costs !
