1R1G1B SMD3528 White Lamp P5 Indoor Led Video Wall Hire Led Screens For Events
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-RD 5 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 sq.m |
|---|---|
| Packaging Details: | Flight case |
| Delivery Time: | 10-15 days |
| Supply Ability: | 3000sq.m/month |
|
Detail Information |
|||
| Product Name: | P6 Indoor Full Color LED Display | Pixel Pitch: | 6mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/SMD3528 White Lamp | Density: | 27,777 Pixel/m2 |
| Moduel Size(L×W)mm: | 192mm×192mm | Cabinet Size(L×W×H)mm: | 576mm×576mm×90mm |
| Highlight: | stage rental led display,outdoor rental led display |
||
Product Description
1R1G1B/SMD3528 White lamp P5 Indoor Full color LED Display 600CD/㎡
Description:
Convenient servicing. Front and rear cabinet access makes maintenance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.
The list of availabe models of our LED display/screen/panels/signs.P3mm, P4mm, P5mm, P6mm, P7.62mm, P10mm, P12mm, P16mm, P20mm, P25mm, and ect.
Using Range :
The list of availabe models of our LED display/screen/panels/signs.P3mm, P4mm, P5mm, P6mm, P7.62mm, P10mm, P12mm, P16mm, P20mm, P25mm, and ect.
Using Range :

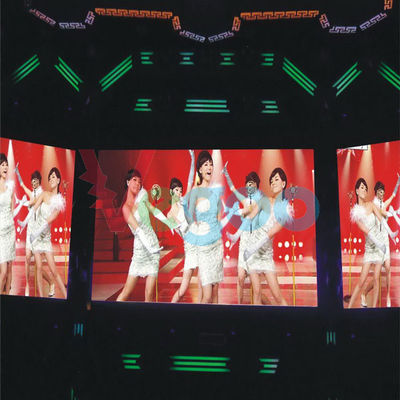

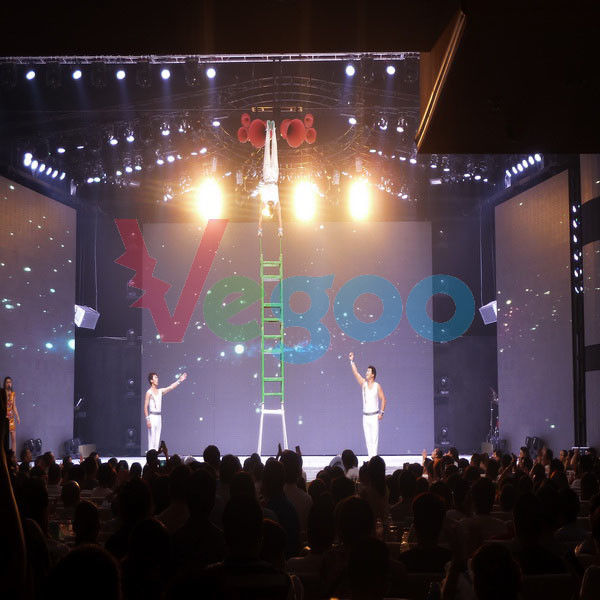

P6 indoor full color RGB led display, can be used for club, concert, exhibition, school, hospital, bookshop...Indoor full color LED display is made of high-luminance LEDs, is suitable to play all kinds of video, VCD, DVD, text information, pictures and tabulation, also called indoor LED TV.
P6 Indoor Full color LED Display Specification
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 6mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD3528 White lamp | ||||||||||
| 3 | Density | 27,777 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 192mm×192mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 576mm×576mm×90mm | ||||||||||
| 6 | Module Resolution | 32×32 | ||||||||||
| 7 | Cabinet Resolution | 96×96 | ||||||||||
| 8 | Driving Method | 1/16 Scan | ||||||||||
| 9 | Driving IC | MBI5124 | ||||||||||
| 10 | Brightness | 1100cd/㎡ | ||||||||||
| 11 | Contrast | 1000:1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜540W | ||||||||||
| 14 | Average power: ＜200W | |||||||||||
| 15 | Module Weight | 0.244kg | ||||||||||
| 16 | Color Temperature | 9500K—11500K | ||||||||||
| 17 | Horizontal Viewing Angle | 140º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 10 or 14bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >1920Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 85-264V | ||||||||||
| 36 | Protection | dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Our service
1. Your inquiry related to our products or price will be replied in 2hrs
2. OEM customized products
3. 2 years warranty
4. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
5.Free technician training..
6.Top quality+Reasonable price+Responsible After Service=Successful & Win
Want to Know more details about this product
