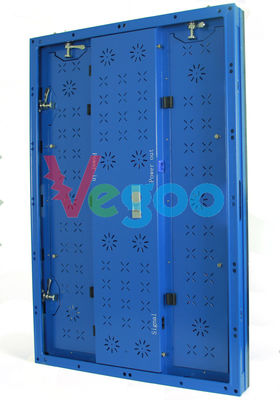

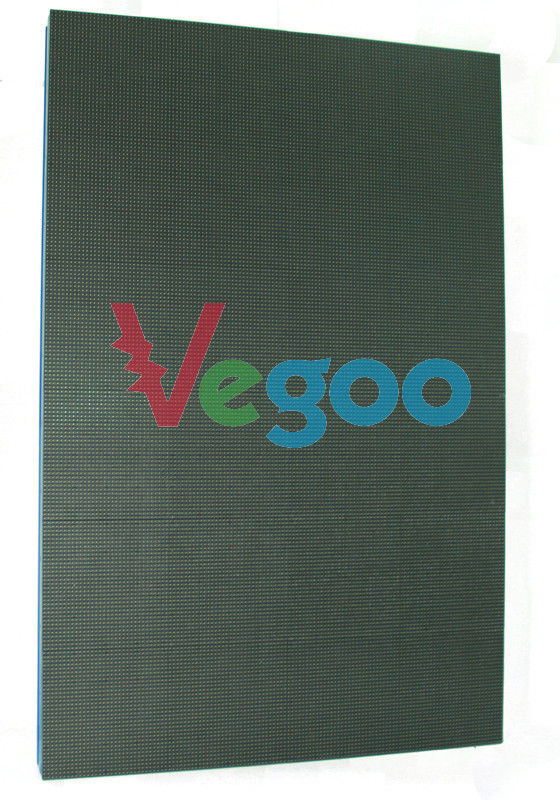

Energy Saving P5 Indoor Full Color Led Panels For Video Wall 320mm×160mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-RD 5 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 sq.m |
|---|---|
| Packaging Details: | Flight case |
| Delivery Time: | 10-15 days |
| Supply Ability: | 3000sq.m/month |
|
Detail Information |
|||
| Product Name: | P5 Indoor Full Color LED Display | Pixel Pitch: | 5mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/SMD3528 Black Lamp | Density: | 40,000 Pixel/m2 |
| Moduel Size(L×W)mm: | 320mm×160mm | Cabinet Size(L×W×H)mm: | 640mm×640mm×90mm |
| Brightness: | 800CD/㎡ | Contrast: | 1000:1 |
| Highlight: | stage rental led display,led video wall rental |
||
Product Description
Energy saving P5 Indoor Full color LED Display 320mm×160mm
Description:
3) CE,ROHS,ISO9001, FCC,CCC,SAA,PSE,PCC&ROHS,C-TRCK&RCM
P5 Indoor Full color LED Display Specification
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 5mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD3528 Black lamp | ||||||||||
| 3 | Density | 40,000 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 320mm×160mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 640mm×640mm×90mm | ||||||||||
| 6 | Module Resolution | 64×32 | ||||||||||
| 7 | Cabinet Resolution | 128×128 | ||||||||||
| 8 | Driving Method | 1/16 Scan | ||||||||||
| 9 | Driving IC | MBI5124 | ||||||||||
| 10 | Brightness | 800CD/㎡ | ||||||||||
| 11 | Contrast | 1000:1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜600W | ||||||||||
| 14 | Average power: ＜200W | |||||||||||
| 15 | Module Weight | 0.45kg | ||||||||||
| 16 | Color Temperature | 9500K—11500K | ||||||||||
| 17 | Horizontal Viewing Angle | 140º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 10 or 14bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >1920Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 110-220V | ||||||||||
| 36 | Protection | dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Services Before-sale:
Set a special telephone line to resolve the confusion from clients and supply free technology services by telephone.
Consider the demands of clients carefully , study the situation of the installation condition , Team up the related staff and workers promptly , give clients design program details to help them choose the products which they wanted as soon as possible
Service In - sales :
Try the best to meet the reasonable demands by clients Provisional changed .
Keep close touch with the clients during the period if installation .
Cooperate friendly with the clients, satisfy the clients with the best quality of led display .
Service After-sale:
Normal products have one year guarantee, and whole life maintenance, free charges . we just charge materials cost only if products out off guarantee.
You can down load and upgrade the related operating software of Led display freely from our company website , so as to resolve the problems when you use our led display .
Check the quality of appliance , do maintenance job and ask good suggestions form clients on a regular time schedule .
