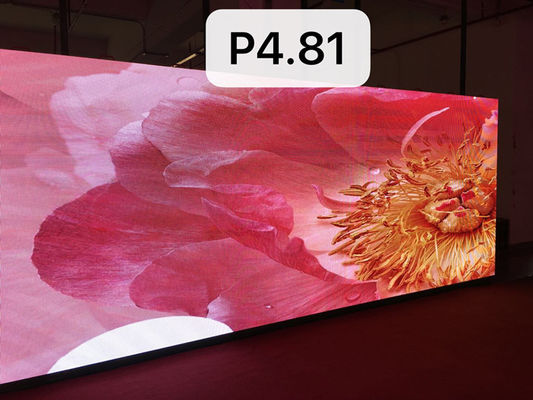

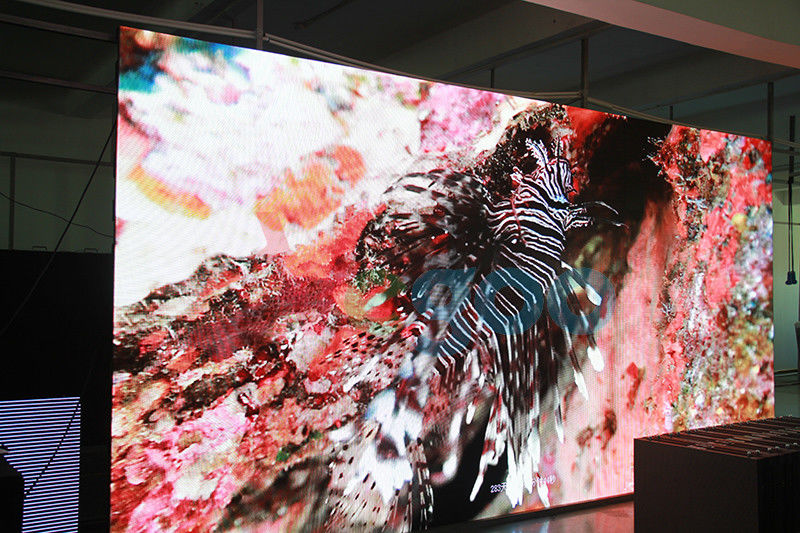

Advertising outdoor P4.81 led Display Screens Outdoor Led Video Wall 1100cd/㎡

China Advertising outdoor P4.81 led Display Screens Outdoor Led Video Wall 1100cd/㎡ supplier
Advertising outdoor P4.81 led Display Screens Outdoor Led Video Wall 1100cd/㎡ supplier Advertising outdoor P4.81 led Display Screens Outdoor Led Video Wall 1100cd/㎡ supplier Advertising outdoor P4.81 led Display Screens Outdoor Led Video Wall 1100cd/㎡ supplier Advertising outdoor P4.81 led Display Screens Outdoor Led Video Wall 1100cd/㎡ supplier Advertising outdoor P4.81 led Display Screens Outdoor Led Video Wall 1100cd/㎡ supplier

Large Image :  Advertising outdoor P4.81 led Display Screens Outdoor Led Video Wall 1100cd/㎡

Product Details:

Place of Origin: made in China
Brand Name: Vegoo
Certification: CE/ROHS/FCC
Model Number: VG-RD 4.81

Payment & Shipping Terms:

Minimum Order Quantity: 1 sq.m
Packaging Details: Flight case
Delivery Time: 10-15 days
Supply Ability: 3000sq.m/month
Contact Now
Detailed Product Description
Product Name: P4.81 Outdoor LED Video Display Pixel Configuration: 1R1G1B/SMD2121 Black Lamp
Density: 43,243 Pixel/m2 Cabinet Size(L×W×H)mm: 500mm×500mm/1000mm×90mm
Brightness: 1100cd/㎡ Contrast: 1000:1



Advertising outdoor P4.81 led Display Screens Outdoor Led Video Wall 1100cd/㎡



Feature:

1. Video function

2. Text /image/information publish

3. Advertising

4. Safety function

5. Accurate system:no error occurs.

6. Response time :real time.

7. reaction function

8. Remote monitoring –details.

9. Remote and step on powering system





P4.81 Indoor Full color LED Display Specification



Product Name Specification

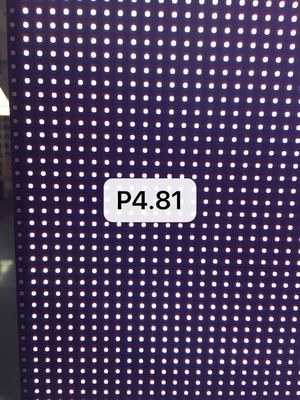

Pixel Pitch 4.81mm
Pixel Configuration 1R1G1B/SMD2121 Black lamp
Density 43,243 pixel/m2
Moduel Size(L×W)mm 250mm×250mm

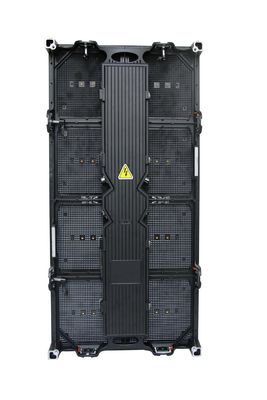

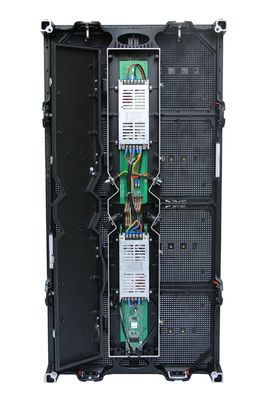

Cabinet Size(L×W×H)mm 500mm×1000mm×90mm
Module Resolution 52×52
Cabinet Resolution 104×208
Driving Method 1/13 Scan
Driving IC MBI5124
Brightness 1100cd/㎡
Contrast 1000:1
Brightness Adjustment Auto and Manual
Power Consumption Max Power:<420W
Average power: <240W
Module Weight 052kg
Color Temperature 9500K—11500K
Horizontal Viewing Angle 140º
Vertical Viewing Angle 140º
Signal Processing 10 or 14bit
Grey Processing 1024×1024×1024
16834×16834×16834
Control Distance cable100m,Multimode500m,Single mode 2km
Frame Frequency 65 Hz
Refresh Rate >1920Hz
Control Mode Synchronous/Asynchronous
The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
Users can choose the recommended curve or adjust it based on actual situation
MTBF >50000 hours
Life Span 100,000 Hours
Operating Temperature Working : -20 - 65 ℃
Storage : -40 - 85 ℃
Environment Temperature -30℃ to 60℃; humidity Rh10% to 95%
Remote Control Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
Self-checking Technique Self-inspection, communication test, power test, temperature monitoring (Be customized)
Operating System Platform WindowsNT,Windows2000,WindowsXP,Windows7
Power Supply AC 110-220V
Protection dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)



Advertising outdoor P4.81 led Display Screens Outdoor Led Video Wall 1100cd/㎡



Advertising outdoor P4.81 led Display Screens Outdoor Led Video Wall 1100cd/㎡



Advertising outdoor P4.81 led Display Screens Outdoor Led Video Wall 1100cd/㎡



Application:



Indoor P3.91 500x500mm
Nation Star SMD2020
High Refresh Rate 3840Hz 8kg
Flexible Cabinet



Features and Advantages:



Quick Assembly and Disassebmly

Adjustable Angle Lock, Flexible Stage Design

Slim and Light Weight Die Casting Aluminum Cabinet Design

Front Maintenance Magnetic Module

Absolute 4K HD Display Visual Effects
