P7.62 Indoor Full Color Led Advertising Signs Board 1R1G1B / SMD3528 White Lamp
Product Details:
| Place of Origin: | China |
| Brand Name: | Vgeoo |
| Certification: | Ce/ROHS/FCC/ |
| Model Number: | VG-RD P7.62 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Sq.m |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 7 days |
|
Detail Information |
|||
| Product Name: | P7.62 Indoor Full Color LED Display | Pixel Pitch: | 7.62mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/SMD3528 White Lamp | Density: | 17,777 Pixel/m2 |
| Cabinet Size(L×W×H)mm: | 732mm×732mm×90mm | Cabinet Resolution: | 96×96 |
| Brightness: | 1200cd/㎡ | Contrast: | 1000:1 |
| Highlight: | led display module,led video module |
||
Product Description

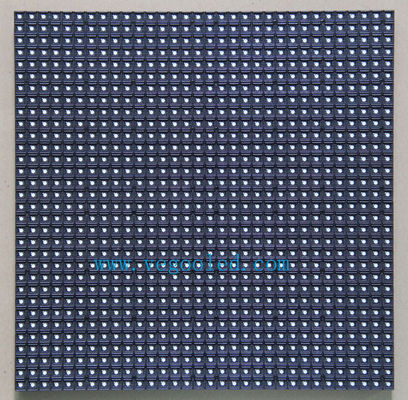

1R1G1B/SMD3528 White lamp P7.62 Indoor Full color LED Display
Description:
- Different shape and size can be made according to your requirement;
- High brightness and definition, energy-saving, environment friendly;
- Stable performance
- our most basic guarantee: the aging time exceeding 24 hours. Malfunction dot rate
- less than 0.0001. MTBF more than 50000 hours;
P7.62 Indoor Full color LED Display Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 7.62mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD3528 White lamp | ||||||||||
| Density | 17,777 pixel/m2 | ||||||||||

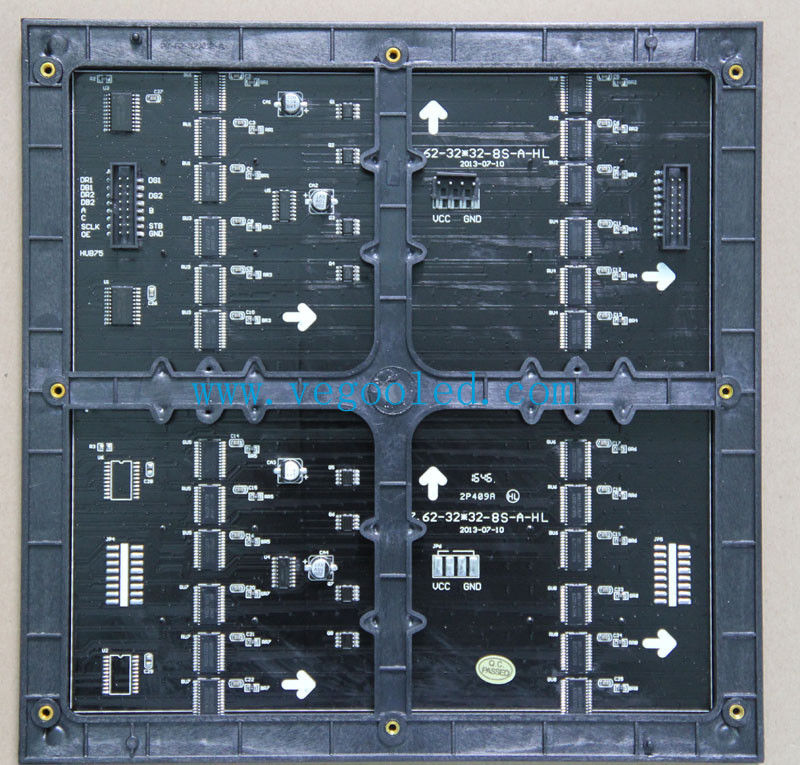

| Moduel Size(L×W)mm | 244mm×244mm | ||||||||||
| Cabinet Size(L×W×H)mm | 732mm×732mm×90mm | ||||||||||
| Module Resolution | 32×32 | ||||||||||
| Cabinet Resolution | 96×96 | ||||||||||
| Driving Method | 1/8 Scan | ||||||||||
| Driving IC | MBI5124 | ||||||||||
| Brightness | 1200cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜650W | ||||||||||
| Average power: ＜300W | |||||||||||
| Module Weight | 0.45kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-220V | ||||||||||
| Protection | dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Upgrade Service :
Unschedule,we will upgrade our system of products without extra formal; we’ll do our best to help users with upgrading ; the following conditions are excluded by this warranty :
1. Without approved documents;
2. Series code on products having been torn or changed ;
3. Damage caused by lighting strike or electrical problems;
4. Risks caused by irresistible incidents includes all kinds of natural disasters, fire, wars, policy changes, and some other human error accidents.
5. Users or third party refit or repaired by themselves without VEGOO’s permission ;
6. Water intrusion or corrosion caused by improper keeping or operating ;
7. Over period of free maintenance .
