High Brightness P6 HD SMD LED Module Waterproof LED Display 6500cd/㎡

China High Brightness P6 HD SMD LED Module Waterproof LED Display 6500cd/㎡ supplier
High Brightness P6 HD SMD LED Module Waterproof LED Display 6500cd/㎡ supplier High Brightness P6 HD SMD LED Module Waterproof LED Display 6500cd/㎡ supplier

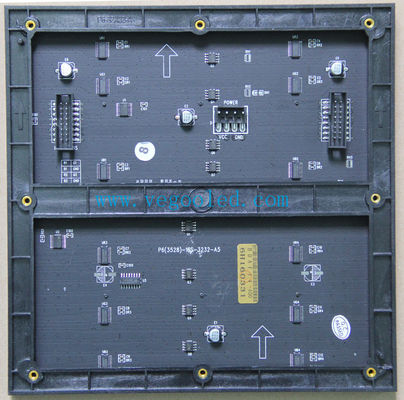

Large Image :  High Brightness P6 HD SMD LED Module Waterproof LED Display 6500cd/㎡

Product Details:

Place of Origin: China
Brand Name: Vgeoo
Certification: Ce/ROHS/FCC/
Model Number: VG-RD P6

Payment & Shipping Terms:

Minimum Order Quantity: 1 Sq.m
Packaging Details: Plywood case / Flight case / Carton box
Delivery Time: 7 days
Detailed Product Description
Product Name: P6 Outdoor Full Color LED Display Pixel Configuration: 1R1G1B/SMD3535
Density: 27,777 Pixel/m2 Cabinet Size(L×W×H)mm: 576mm×576mm×90mm
Cabinet Resolution: 96×96 Driving IC: MBI5124
Brightness: 6500cd/㎡ Contrast: 1000:1
High Light:

led display module

,

led screen module



High brightness P6 Outdoor Full color LED Display Waterproof





Features:

  • Easy installation design, allows for quick and convenient installation;
  • Good Waterproof ,can be used under heavy rain weather and humid area;
  • High brightness up to 7500nits, close view distance,good performance;
  • With AntiUV ray mask, the color of the mask would never change even if under exposure of UV ray;
  • Classical and stable structure and performance;
  • Auto fan and brightness;
  • The wide Angle of view
  • LED module connects to frame through magnet adsorption;
  • Show all kinds of word, text, graph, pictures, flashes, video, Different signal resources inputs such as TV, HCTV, S-video, NTSC/PAL, DVI, AVI, VGA, SDI, MOV, MPG, etc;







P6 Outdoor Full color LED Display Specification





Product Name Specification
Pixel Pitch 6mm
Pixel Configuration 1R1G1B/SMD3535
Density 27,777 pixel/m2
Moduel Size(L×W)mm 192mm×192mm
Cabinet Size(L×W×H)mm 576mm×576mm×90mm
Module Resolution 32×32
Cabinet Resolution 96×96
Driving Method 1/8 Scan
Driving IC MBI5124
Brightness 6500cd/㎡
Contrast 1000:1
Brightness Adjustment Auto and Manual
Power Consumption Max Power:<545W
Average power: <165W
Module Weight 0.244kg
Color Temperature 9500K—11500K
Horizontal Viewing Angle 140º
Vertical Viewing Angle 140º
Signal Processing 10 or 14bit
Grey Processing 1024×1024×1024
16834×16834×16834
Control Distance cable100m,Multimode500m,Single mode 2km
Frame Frequency 65 Hz
Refresh Rate >1920Hz
Control Mode Synchronous/Asynchronous
The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
Users can choose the recommended curve or adjust it based on actual situation
MTBF >50000 hours
Life Span 100,000 Hours
Operating Temperature Working : -20 - 65 ℃
Storage : -40 - 85 ℃
Environment Temperature -30℃ to 60℃; humidity Rh10% to 95%
Remote Control Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
Self-checking Technique Self-inspection, communication test, power test, temperature monitoring (Be customized)
Operating System Platform WindowsNT,Windows2000,WindowsXP,Windows7
Power Supply AC 110-220V
Protection waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)





High Brightness P6 HD SMD LED Module Waterproof LED Display 6500cd/㎡ 0





Customer Service



1) Guarantee Time: Within one year after delivery form factory

2) Maintenance Coverage : LED modules,Power supply ,Control system and other accessories ( This warranty exclude accessories purchasing form other factory )

3) Maintenance Mode :

By returned maintenance , through express or by other way

4) Response time for maintenance :



1. Return mode: after receiving the returned products, we will repaired them within 24 hours and send them back to the user;



2. Telephone or internet mode: we will contact user within 2 hours after getting informations and give solution within 8 hours;



3. On-site mode: ( only for user inside china ) after receiving maintenance request , we will respond within 48 hours to user in Guangdong province; 72 hours to user outside Guangdong province, In the case of some special conditions , problems could be solved on the basis of friendly negotiation between two parties.
