Commercial SMD LED Module P6 Outdoor Led Panel For Offices / Schools

China Commercial SMD LED Module P6 Outdoor Led Panel For Offices / Schools supplier
Commercial SMD LED Module P6 Outdoor Led Panel For Offices / Schools supplier Commercial SMD LED Module P6 Outdoor Led Panel For Offices / Schools supplier

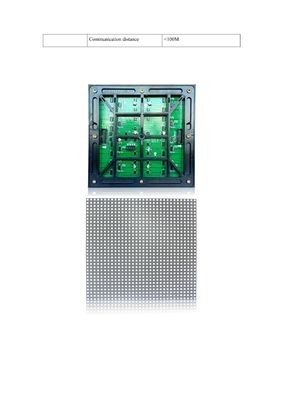

Large Image :  Commercial SMD LED Module P6 Outdoor Led Panel For Offices / Schools

Product Details:

Place of Origin: China
Brand Name: Vgeoo
Certification: Ce/ROHS/FCC/
Model Number: VG-RD P6

Payment & Shipping Terms:

Minimum Order Quantity: 1 Sq.m
Packaging Details: Plywood case / Flight case / Carton box
Delivery Time: 7 days
Detailed Product Description
Product Name: P6 Outdoor Full Color LED Display Pixel Pitch: 6mm
Density: 27,777 Pixel/m2 Moduel Size(L×W)mm: 192mm×192mm
Cabinet Size(L×W×H)mm: 576mm×576mm×90mm Module Resolution: 32×32
Brightness: 6500cd/㎡ Contrast: 1000:1
High Light:

led display module

,

led screen module



P6 Outdoor Full color LED Display for Offices,school, airports





Application:





Suitable for Offices,school, airports, Stage Performance,ferry,Open Air exhibitions,cinema, TV-Show and so on .





Our company:

  • Customer satisfaction is our prime objective and our high quality LED video display screen used in more than 140 countries and win a high reputation.
  • Shenzhen LED World co.,ltd will be committing to provide more cost-effective, more energy-efficient, and greener LED optoelectronic products, contributing to building a green home.







P6 Outdoor Full color LED Display Specification





NO: Product Name Specification
1 Pixel Pitch 6mm
2 Pixel Configuration 1R1G1B/SMD3535
3 Density 27,777 pixel/m2
4 Moduel Size(L×W)mm 192mm×192mm
5 Cabinet Size(L×W×H)mm 576mm×576mm×90mm
6 Module Resolution 32×32
7 Cabinet Resolution 96×96
8 Driving Method 1/8 Scan
9 Driving IC MBI5124
10 Brightness 6500cd/㎡
11 Contrast 1000:1
12 Brightness Adjustment Auto and Manual
13 Power Consumption Max Power:<545W
14 Average power: <165W
15 Module Weight 0.244kg
16 Color Temperature 9500K—11500K
17 Horizontal Viewing Angle 140º
18 Vertical Viewing Angle 140º
19 Signal Processing 10 or 14bit
20 Grey Processing 1024×1024×1024
16834×16834×16834
21 Control Distance cable100m,Multimode500m,Single mode 2km
22 Frame Frequency 65 Hz
23 Refresh Rate >1920Hz
24 Control Mode Synchronous/Asynchronous
25 The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
26 Users can choose the recommended curve or adjust it based on actual situation
27 MTBF >50000 hours
28 Life Span 100,000 Hours
29 Operating Temperature Working : -20 - 65 ℃
30 Storage : -40 - 85 ℃
31 Environment Temperature -30℃ to 60℃; humidity Rh10% to 95%
32 Remote Control Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
33 Self-checking Technique Self-inspection, communication test, power test, temperature monitoring (Be customized)
34 Operating System Platform WindowsNT,Windows2000,WindowsXP,Windows7
35 Power Supply AC 110-220V
36 Protection waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)
