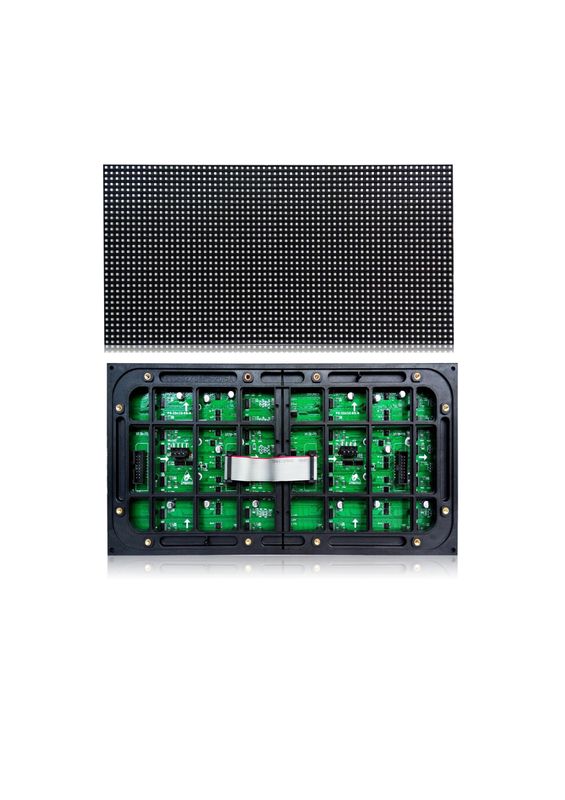

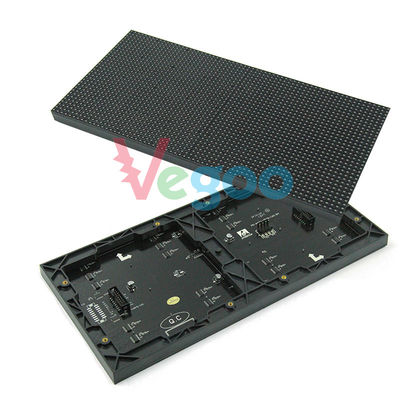

Custom MBI5124 P5 LED Display Multi Color Led Display Board 800CD/㎡
Product Details:
| Place of Origin: | China |
| Brand Name: | Vgeoo |
| Certification: | Ce/ROHS/FCC/ |
| Model Number: | VG-RD P5 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Sq.m |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 7 days |
|
Detail Information |
|||
| Product Name: | Indoor Full Color LED Display | Pixel Pitch: | 5mm |
|---|---|---|---|
| Density: | 40,000 Pixel/m2 | Moduel Size(L×W)mm: | 320mm×160mm |
| Module Resolution: | 64×32 | Driving IC: | MBI5124 |
| Brightness: | 800CD/㎡ | Contrast: | 1000:1 |
| Highlight: | led display module,led video module |
||
Product Description
P5 Indoor Full color LED Display 1R1G1B/SMD3528 Black lamp
Description:
1. Factory whole sale directly, complete specifications, adequate inventory. For each model, 5000~10000pcs in stock
2. First-class Taiwan LED chip.Supplied by Epistar of Taiwan & other high strictly selected LED chip to ensure the long lifetime and high brightness
3. High Contrast ratio: above 1000:1 .very high level to ensure a vivid image of our LED display screen system
4. Fast deliver time: 3~5days after payment confirm
5. Warranty: 2 years warranty and long term technology support and after sale service
P5 Indoor Full color LED Display Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 5mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD3528 Black lamp | ||||||||||
| Density | 40,000 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 320mm×160mm | ||||||||||
| Cabinet Size(L×W×H)mm | 640mm×640mm×90mm | ||||||||||
| Module Resolution | 64×32 | ||||||||||
| Cabinet Resolution | 128×128 | ||||||||||
| Driving Method | 1/16 Scan | ||||||||||
| Driving IC | MBI5124 | ||||||||||
| Brightness | 800CD/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜600W | ||||||||||
| Average power: ＜200W | |||||||||||
| Module Weight | 0.45kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-220V | ||||||||||
| Protection | dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Service and Guarantees
Services Before-sale:Set a special telephone line to resolve the confusion from clients and supply free technology services by telephone.Consider the demands of clients carefully , study the situation of the installation condition , Team up the related staff and workers promptly , give clients design program details to help them choose the products which they wanted as soon as possible
Service In - sales :Try the best to meet the reasonable demands by clients Provisional changed .Keep close touch with the clients during the period if installation .Cooperate friendly with the clients, satisfy the clients with the best quality of led display .
Service After-sale:Normal products have one year guarantee, and whole life maintenance, free charges . we just charge materials cost only if products out off guarantee.You can down load and upgrade the related operating software of Led display freely from our company website , so as to resolve the problems when you use our led display .Check the quality of appliance , do maintenance job and ask good suggestions form clients on a regular time schedule .
