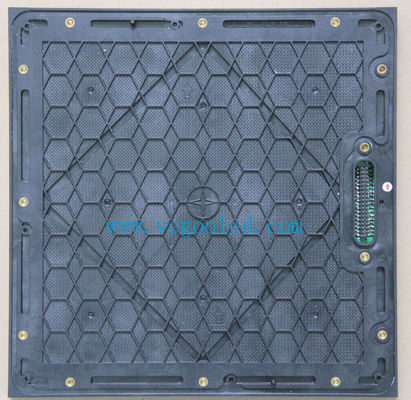

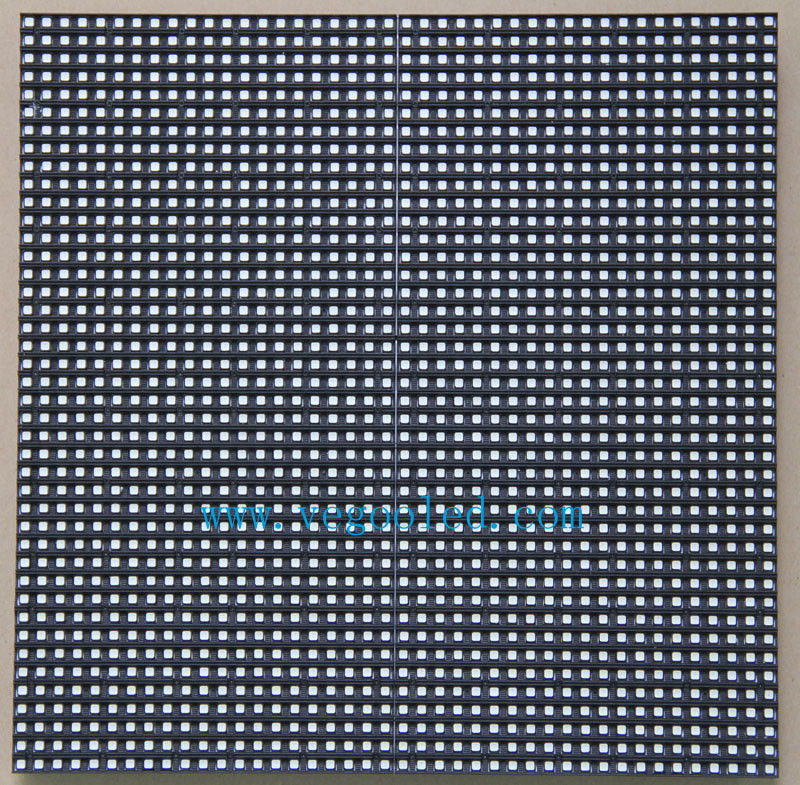

Outdoor Full Color P5.95 SMD LED Module Low Energy Consumption
Product Details:
| Place of Origin: | China |
| Brand Name: | Vgeoo |
| Certification: | Ce/ROHS/FCC/ |
| Model Number: | VG-RD P5.95 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Sq.m |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 7 days |
|
Detail Information |
|||
| Product Name: | Outdoor Full Color LED Display | Pixel Pitch: | 5.95mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/SMD2727 | Density: | 28,235 Pixel/m2 |
| Cabinet Size(L×W×H)mm: | 500mm×500mm×90mm | Module Resolution: | 42×42 |
| Driving IC: | MBI5124 | Contrast: | 1000:1 |
| Highlight: | led screen module,led video module |
||
Product Description
P5.95 Outdoor Full color LED Display Low energy consumption
Product Features :
Low energy consumption ,long lifespan , less maintenance performance .
No color difference , concentrating well, good veiwing angle .
Better waterproof , better radiation ,better dust proof ,good quality modules ,under the same conditions ,using two more years than SMD .
High brightness , high refresh , the biggest advantage of a comprehensive reflection of outdoor HD LED display .
Simply installation , easy to maintain , easy to use .
P5.95 Outdoor Full color LED Display Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 5.95mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD2727 | ||||||||||
| Density | 28,235 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 250mm×250mm | ||||||||||
| Cabinet Size(L×W×H)mm | 500mm×500mm×90mm | ||||||||||
| Module Resolution | 42×42 | ||||||||||
| Cabinet Resolution | 84×84 | ||||||||||
| Driving Method | 1/7 Scan | ||||||||||
| Driving IC | MBI5124 | ||||||||||
| Brightness | 6000cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜600W | ||||||||||
| Average power: ＜300W | |||||||||||
| Module Weight | 0.72kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-220V | ||||||||||
| Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
