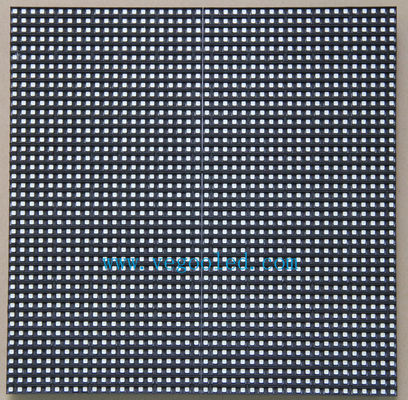

P5.95 Outdoor Full color LED Display SMD LED Module 1R1G1B / SMD2727
Product Details:
| Place of Origin: | China |
| Brand Name: | Vgeoo |
| Certification: | Ce/ROHS/FCC/ |
| Model Number: | VG-RD P5.95 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Sq.m |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 7 days |
|
Detail Information |
|||
| Product Name: | Outdoor Full Color LED Display | Pixel Pitch: | 5.95mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/SMD2727 | Moduel Size(L×W)mm: | 250mm×250mm |
| Cabinet Size(L×W×H)mm: | 500mm×500mm×90mm | Module Resolution: | 42×42 |
| Cabinet Resolution: | 84×84 | Driving IC: | MBI5124 |
| Brightness: | 6000cd/㎡ | Contrast: | 1000:1 |
| High Light: | led screen module,led video module |
||
Product Description
Modular Design and High Reliability
Modular design. Efficient and low cost installment and maintenance. Patented cooling system, fanless, non-noise, energy-saving and eco-friendly.High reliability. Redundant N+1 power system, dual signal hot backup. Auto-switch and warn malfunction.
Wide View Angle
Vertical/horizontal: 140°/140°, broadcast-level color gamut, CT and brightness adjustable,more appropiate for long-time watching.
P5.95 Outdoor Full color LED Display Specification
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 5.95mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD2727 | ||||||||||
| 3 | Density | 28,235 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 250mm×250mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 500mm×500mm×90mm | ||||||||||
| 6 | Module Resolution | 42×42 | ||||||||||
| 7 | Cabinet Resolution | 84×84 | ||||||||||
| 8 | Driving Method | 1/7 Scan | ||||||||||
| 9 | Driving IC | MBI5124 | ||||||||||
| 10 | Brightness | 6000cd/㎡ | ||||||||||
| 11 | Contrast | 1000:1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜600W | ||||||||||
| 14 | Average power: ＜300W | |||||||||||
| 15 | Module Weight | 0.72kg | ||||||||||
| 16 | Color Temperature | 9500K—11500K | ||||||||||
| 17 | Horizontal Viewing Angle | 140º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 10 or 14bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >1920Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 110-220V | ||||||||||
| 36 | Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Our products WeiGu LED displays in the rapidly expanding Chinese market at the same time, has towards the international market, and the share of export gradually increasing. (all of our products passed RoHS/CCC/CE/EMC/ISO /FCC certifications. The LED application product variety is complete which researched and manufactured by our company, the product structure diversifying. Including: Cover the indoor and outdoor series. Such like: 1. Rental display; 2. Advertising LED display; 3. LED TV; 4. Full color anomalous display etc. Products are widely used in various public places: Such as commercial plaza, government agency, stadiums, transport facilities, financial institutions, theater, performance hall, etc. Our products are exported to the United States, Europe, southeast Asia and other countries, Hong Kong, Taiwan and other regions. With international standards of production process, strictly control product quality and won the customer consistent high praise.
