Remote Control P3.91 Electronic Advertising Display Screen Hd Led Screen

China Remote Control P3.91 Electronic Advertising Display Screen Hd Led Screen supplier
Remote Control P3.91 Electronic Advertising Display Screen Hd Led Screen supplier Remote Control P3.91 Electronic Advertising Display Screen Hd Led Screen supplier

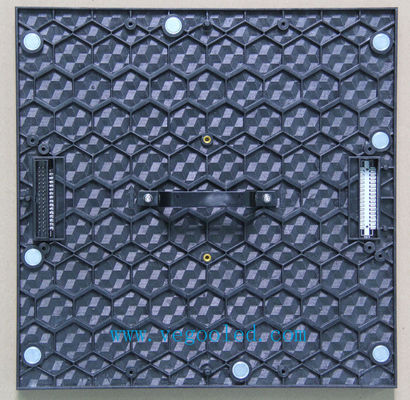

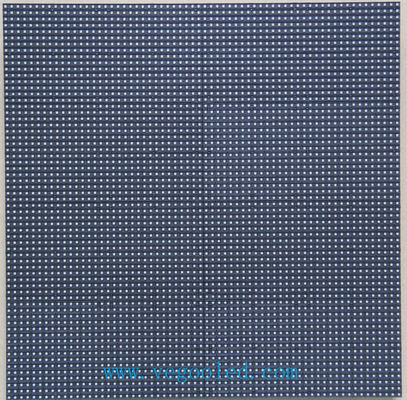

Large Image :  Remote Control P3.91 Electronic Advertising Display Screen Hd Led Screen

Product Details:

Place of Origin: China
Brand Name: Vgeoo
Certification: Ce/ROHS/FCC/
Model Number: VG-RD P3.91

Payment & Shipping Terms:

Minimum Order Quantity: 1 Sq.m
Packaging Details: Plywood case / Flight case / Carton box
Delivery Time: 7 days
Detailed Product Description
Product Name: Indoor Full Color LED Display Pixel Pitch: 3.91mm
Density: 65,536 Pixel/m2 Driving Method: 1/16 Scan
Driving IC: MBI5124 Or ICN 2038S Brightness: 1000cd/㎡
Contrast: 1000:1
High Light:

led screen module

,

led video module



remote control P3.91 Indoor Full color LED Display





Remote Control

Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)


Protection

waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)







P3.91 Indoor Full color LED Display Specification





Product Name Specification
Pixel Pitch 3.91mm
Pixel Configuration 1R1G1B/SMD2121 Black lamp
Density 65,536 pixel/m2
Moduel Size(L×W)mm 250mm×250mm
Cabinet Size(L×W×H)mm 500mm×500mm×90mm
Module Resolution 64×64
Cabinet Resolution 128×128
Driving Method 1/16 Scan
Driving IC MBI5124 or ICN 2038S
Brightness 1000cd/㎡
Contrast 1000:1
Brightness Adjustment Auto and Manual
Power Consumption Max Power:<600W
Average power: <200W
Module Weight 0.52kg
Color Temperature 9500K—11500K
Horizontal Viewing Angle 160º
Vertical Viewing Angle 120º
Signal Processing 10 or 14bit
Grey Processing 1024×1024×1024
16834×16834×16834
Control Distance cable100m,Multimode500m,Single mode 2km
Frame Frequency 65 Hz
Refresh Rate >1920Hz
Control Mode Synchronous/Asynchronous
The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
Users can choose the recommended curve or adjust it based on actual situation
MTBF >50000 hours
Life Span 100,000 Hours
Operating Temperature Working : -20 - 65 ℃
Storage : -40 - 85 ℃
Environment Temperature -30℃ to 60℃; humidity Rh10% to 95%
Remote Control Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
Self-checking Technique Self-inspection, communication test, power test, temperature monitoring (Be customized)
Operating System Platform WindowsNT,Windows2000,WindowsXP,Windows7
Power Supply AC 110-220V
Protection dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)



Remote Control P3.91 Electronic Advertising Display Screen Hd Led Screen 0



Our service



1. Your inquiry related to our products or price will be replied in 2hrs

2. OEM customized products

3. 2 years warranty

4. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

5.Free technician training..

6.Top quality+Reasonable price+Responsible After Service=Successful & Win
