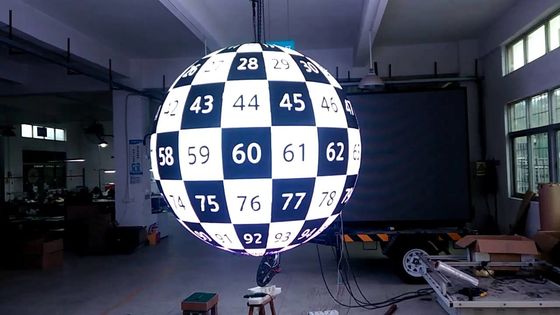

Advertising Rental Ball LED Display Indoor Hd Big Led Screen 4mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-SD P4 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Sq.m |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 35-60 working days |
|
Detail Information |
|||
| Product Name: | Ball LED Display | Pixel Pitch: | 4mm |
|---|---|---|---|
| Density: | 62,500 Pixel/m2 | Moduel Size(L×W)mm: | 256mm×128mm |
| Module Resolution: | 64×32 | Driving Method: | 1/16 Scan |
| Driving IC: | MBI5124 Or ICN 2038S | Contrast: | 1000:1 |
| Color Temperature: | 9500K—11500K | Horizontal Viewing Angle: | 140º |
| Highlight: | led video ball,led display ball |
||
Product Description
indoor hd big led screen for indoor rental and indoor advertising
Description:
• With sensitive control system, it can adjust screen brightness automatically according to the lighting change of indoor and outdoor, saving energy to reduce your operating costs greatly.
• High refresh rate and high gray make the picture more realistic, which meets the demand of high visual quality of commercial usage.
• The advertising contents can be changed at any time, for different customers and various advertisements.
• you can know the display operation anytime, anywhere.
• it can turn on and turn off the screen by software timing or manually at any time, achieving unattended function.
Self-checking Technique
Self-inspection, communication test, power test, temperature monitoring (Be customized)
P4 Indoor Full color LED Display Specification:
| Product Name | Specification | ||||||||||
| Pixel Pitch | 4mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
| Density | 62,500 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 256mm×128mm | ||||||||||
| Cabinet Size(L×W×H)mm | 512mm×512mm×90mm | ||||||||||
| Module Resolution | 64×32 | ||||||||||
| Cabinet Resolution | 128×128 | ||||||||||
| Driving Method | 1/16 Scan | ||||||||||
| Driving IC | MBI5124 or ICN 2038S | ||||||||||
| Brightness | 1000cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜610W | ||||||||||
| Average power: ＜240W | |||||||||||
| Module Weight | 0.2kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110–220V | ||||||||||
Applications:
Stage Background
Airport Station
Television Relay
Customer Service
1) Guarantee Time: Within one year after delivery form factory
2) Maintenance Coverage : LED modules,Power supply ,Control system and other accessories ( This warranty exclude accessories purchasing form other factory )
3) Maintenance Mode :
By returned maintenance , through express or by other way
4) Response time for maintenance :Return mode: after receiving the returned products, we will repaired them within 24 hours and send them back to the user;Telephone or internet mode: we will contact user within 2 hours after getting informations and give solution within 8 hours;On-site mode: ( only for user inside china ) after receiving maintenance request , we will respond within 48 hours to user in Guangdong province; 72 hours to user outside Guangdong province, In the case of some special conditions , problems could be solved on the basis of friendly negotiation between two parties.
